LED Downlight

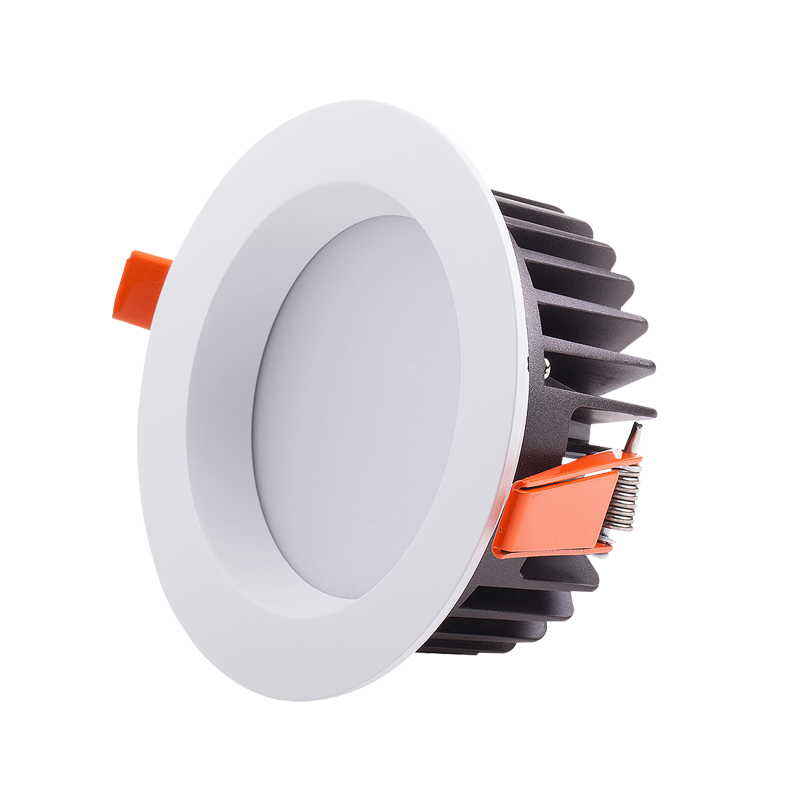

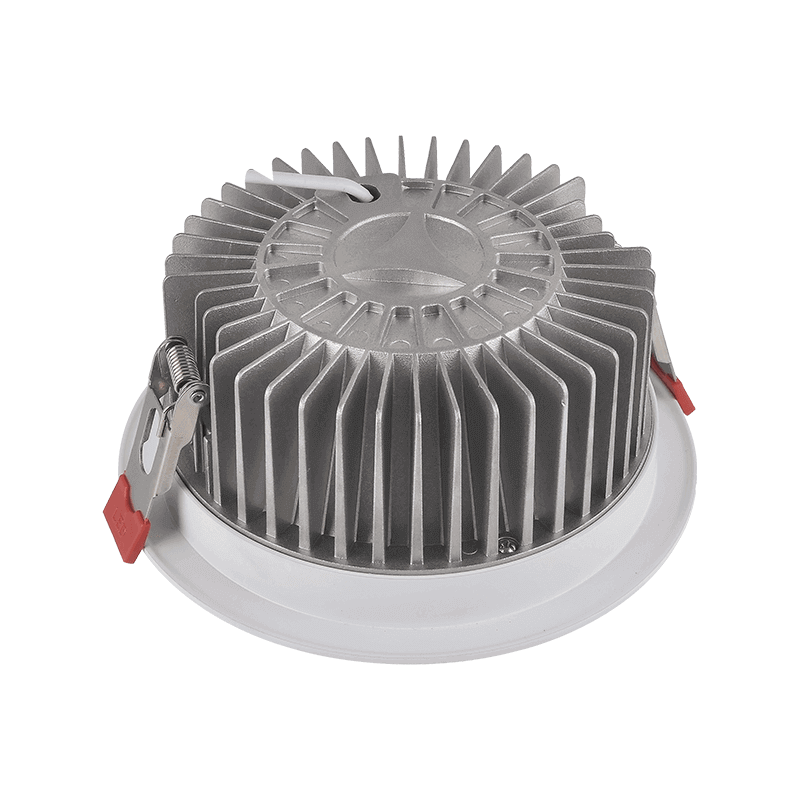

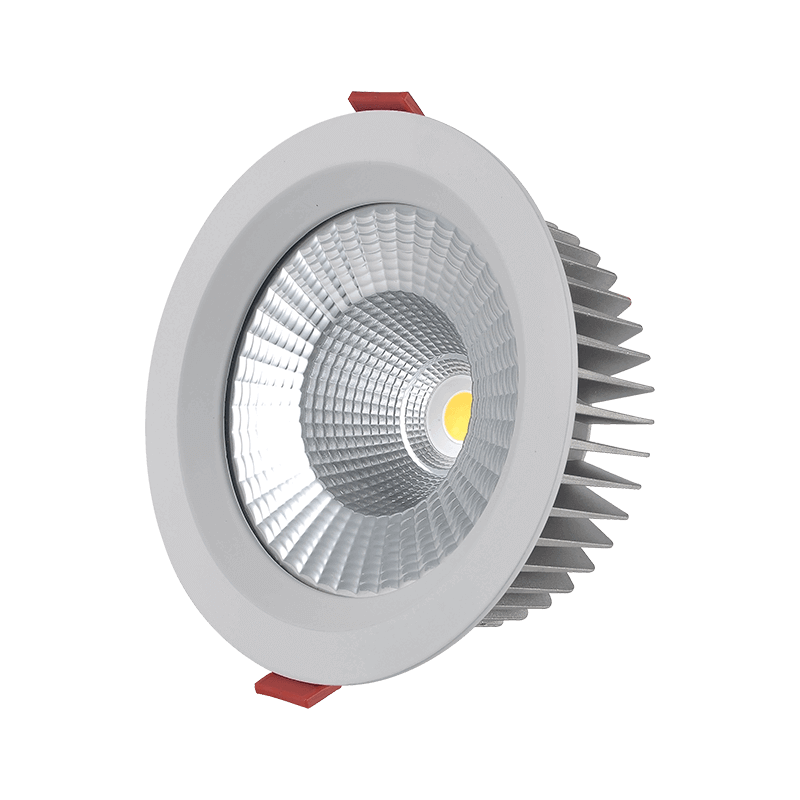

LED DOWNLIGHT DTU-S SERIES

Model: JST-DTU-S

Wattage: 10W-50W

LED Chip: Citizen/Cree

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 45°/90°

Diameter: 110mm-220mm

Cutout: 90mm-200mm

Description

DTU Series are originally researched and developed by JST, pure aluminum housing, anodized finish, use PC reflector, reflective rate>95%high grade glass, transparent rate>93%, top quality CITIZEN COB, with OSRAM/LIFUD/TRIDONIC exterior driver, dimmable, good heat sink, brilliant quality, more than 50,000 hours life span.

Advantages

· High brightness, Low SDCM﹤3, low light decline

· High efficiency, high illuminance, accurate beam angle makes comfortable illumination atmosphere

· Refined components and design, guarantee a long life span of over 50,000 hours

· Triac dimmable and 0-10v dimmable exterior drivers are available.ncy,high luminosisy,SDCM<3,make surroundings of high-quality illumination

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-DTU10W>80/902700K-5000K>0.650.25AAC220-240V60/90D110*H59mm90mm
JST-DTU15W>80/902700K-5000K>0.900.35AAC220-240V60/90D110*H59mm90mm
JST-DTU20W>80/902700K-5000K>0.900.50AAC220-240V60/90D127*H70mm110mm
JST-DTU30W>80/902700K-5000K>0.900.75AAC220-240V60/90D165*H81mm145mm
JST-DTU35W>80/902700K-5000K>0.900.85AAC220-240V60/90D165*H81mm145mm
JST-DTU40W>80/902700K-5000K>0.901.00AAC220-240V60/90D220*H90mm200mm
JST-DTU50W>80/902700K-5000K>0.901.25AAC220-240V60/90D220*H90mm200mm
Application

Luxurious hotels, clubs,offices shopping malls, fashion stores, Stations, supermarkets, exhibitions etc.
