LED Downlight

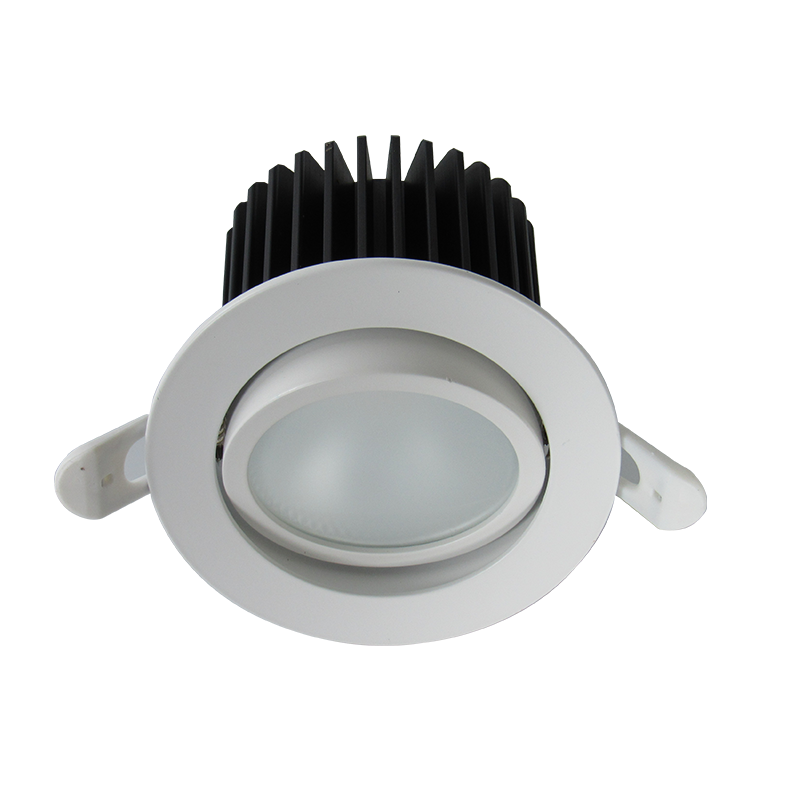

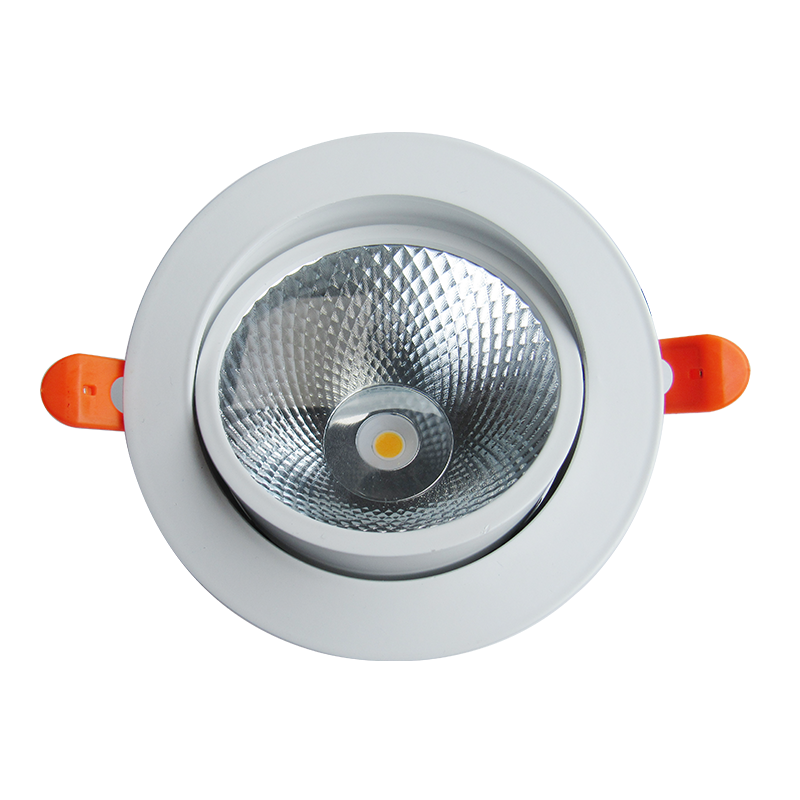

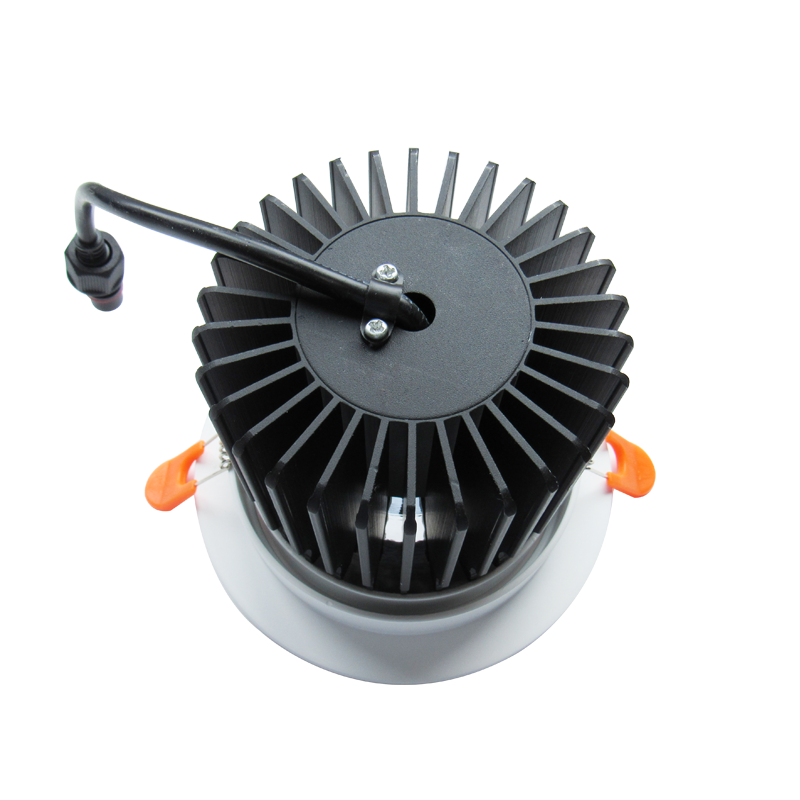

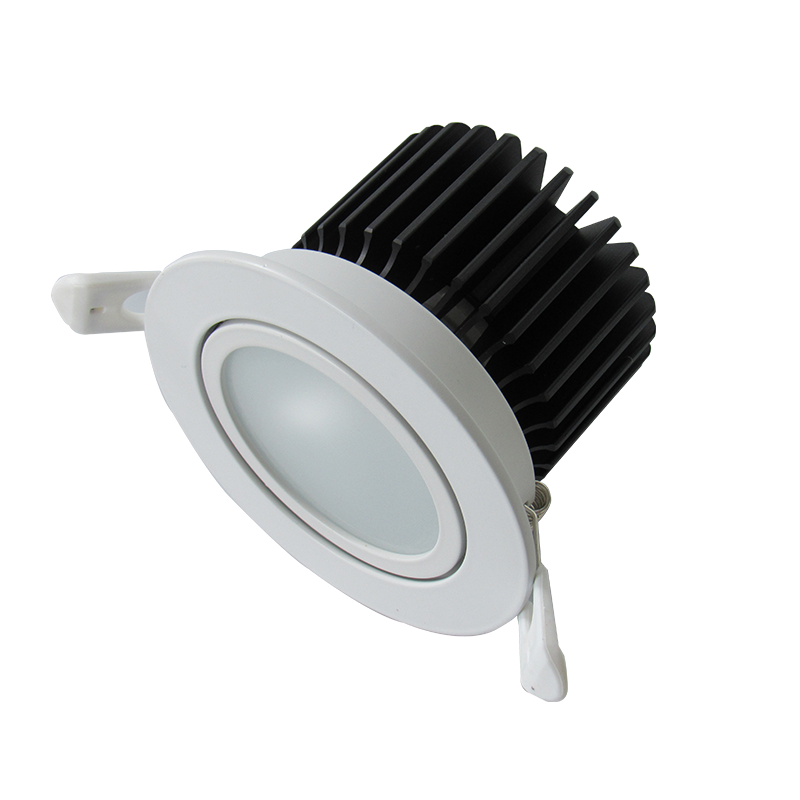

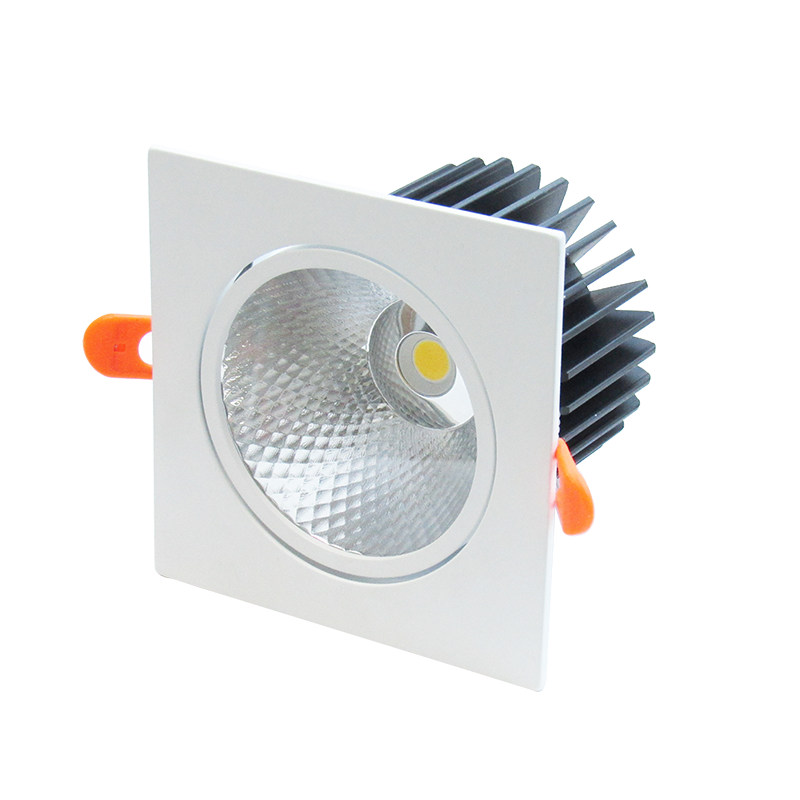

LED Downlight DTO Series

Model: JST-DTO

Wattage: 7W-30W

LED Chip: Citizen/Cree COB Chip

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/38°

Diameter: 90mm-160mm

Cutout: 70mm-135mm


Description

DTO Series are originally researched and developed by JST, pure aluminum housing, anodized finish, use PC reflector, reflective rate>95%high grade glass, transparent rate>93%, top quality CITIZEN/CREE COB, with OSRAM/LIFUD/TRIDONIC exterior driver, dimmable, good heat sink, brilliant quality, more than 50,000 hours life span.

Advantages

· High brightness, Low SDCM﹤3, low light decline

· High efficiency, high illuminance, accurate beam angle makes comfortable illumination atmosphere

· Refined components and design, guarantee a long life span of over 50,000 hours

· Triac dimmable and 0-10v dimmable exterior drivers are available.ncy,high luminosisy,SDCM<3,make surroundings of high-quality illumination


Specification
ModelPowerCRI
CCT
PFCurrent
Input Voltage
Beam Angle
Dimension
Cutout
JST-DTO-7W7W>902700K-6000K>0.650.15AAC220-240V15/24/38D90*H70mm
70mm
JST-DTO-10W10W>902700K-6000K>0.650.25AAC220-240V15/24/38D110*H76mm
90mm
JST-DTO-15W15W>902700K-6000K>0.650.15AAC220-240V15/24/38D110*H76mm
90mm
JST-DTO-20W20W>902700K-6000K>0.900.15AAC220-240V15/24/38D140*H100mm
115mm
JST-DTO-25W25W>902700K-6000K>0.900.15AAC220-240V15/24/38D160*H120mm
135mm
JST-DTO-30W30W>902700K-6000K>0.900.15AAC220-240V15/24/38D160*H120mm
135mm

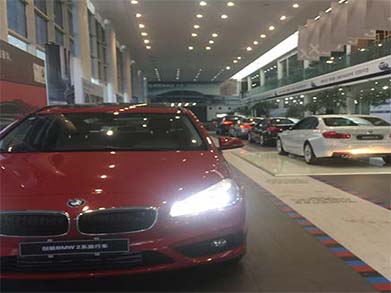

Application

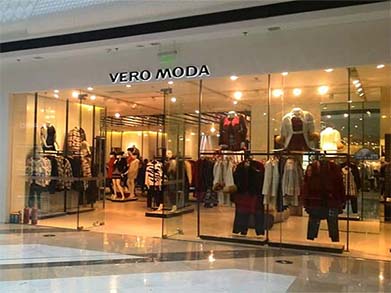

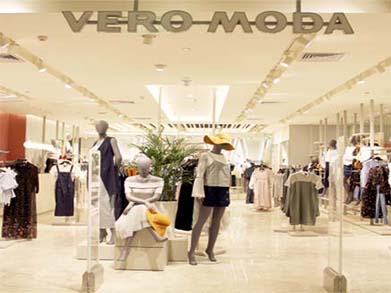

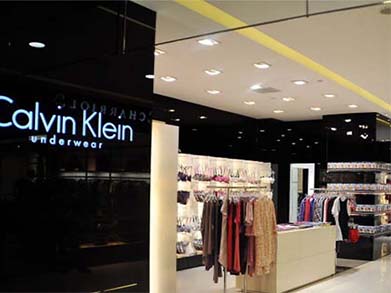

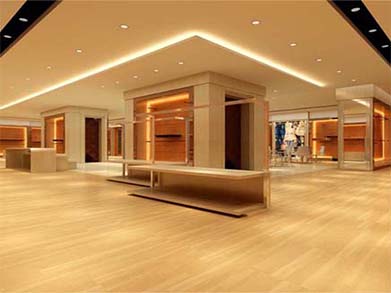

Luxurious hotels, clubs,offices shopping malls, fashion stores, Stations, supermarkets, exhibitions etc.

LED Downlight DTO Series LED Downlight DTO Series LED Downlight DTO Series
LED Downlight DTO Series LED Downlight DTO Series LED Downlight DTO Series
