LED Downlight

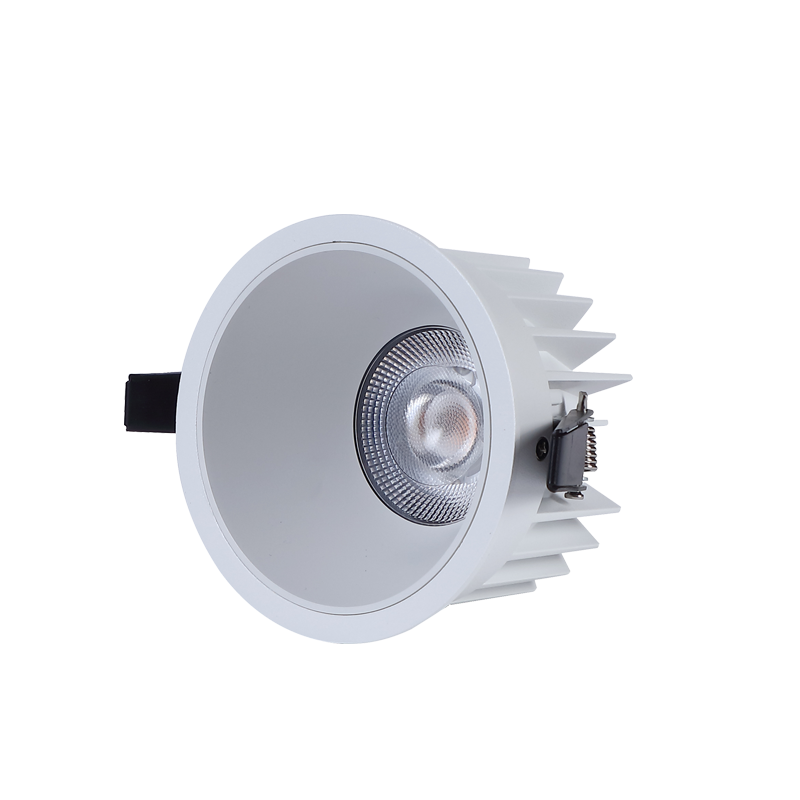

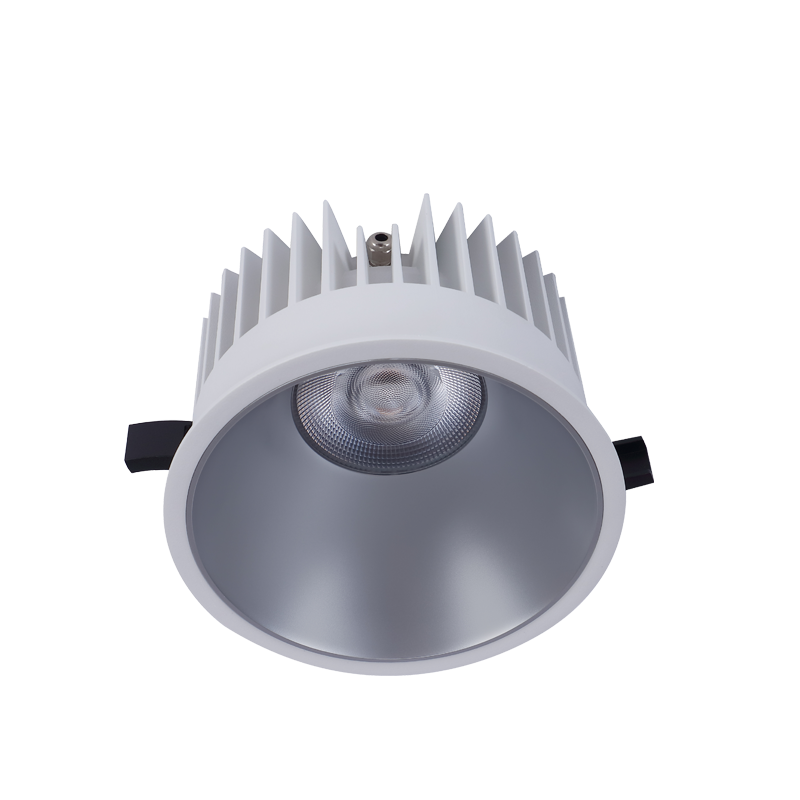

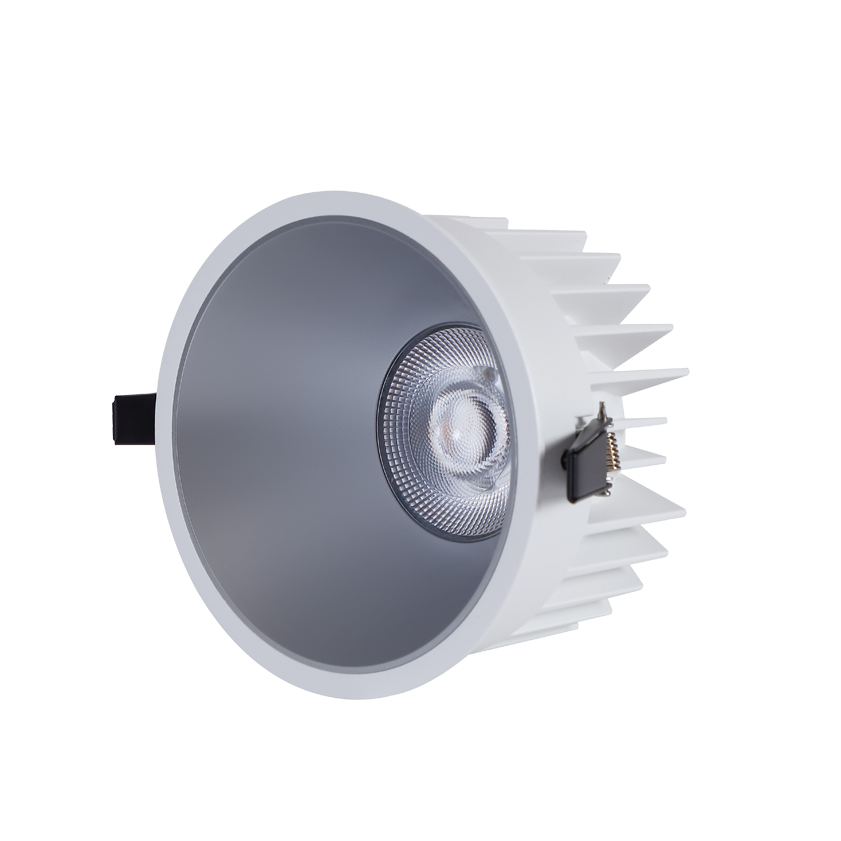

IP65 LED DOWNLIGHT DTI-R SERIES

Model: JST-DTI-R

Wattage: 10W-40W

LED Chip: Citizen/Cree

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle:15°/35°/38°/60°

Diameter: 86mm-180mm

Cutout: 75mm-165mm


Description

LED recessed downlight is a down-light lighting fixture embedded in the ceiling. It is a directional lighting fixture, only its opposite side can receive light. The beam angle is concentrated light. The light is concentrated

and the contrast between light and dark is strong. The illuminated object is more highlighted, the lumen is higher, and it brings out a quiet environment.


The DTI series is one of the embedded downlights, why it can stand out from other  types, it has many unique features:

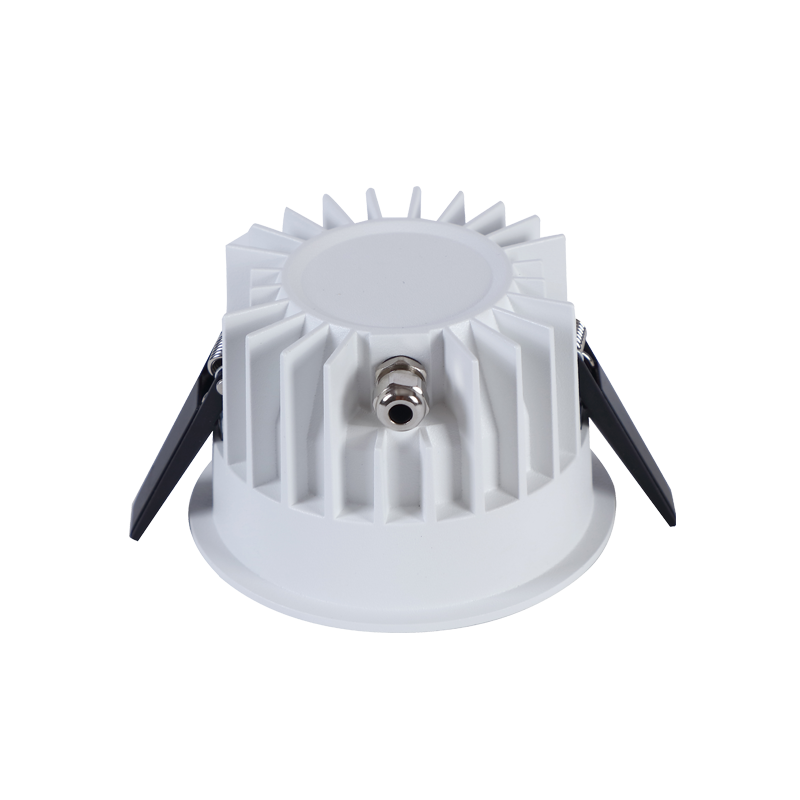

- Features IP65, which means they are dust and water resistant with a dedicated waterproof rubber seal under the lens and a waterproof connector on the back for the input wire. These features effectively block any

moisture, making it an excellent choice for exterior environments such as corridors, building eaves and various outdoor projects.

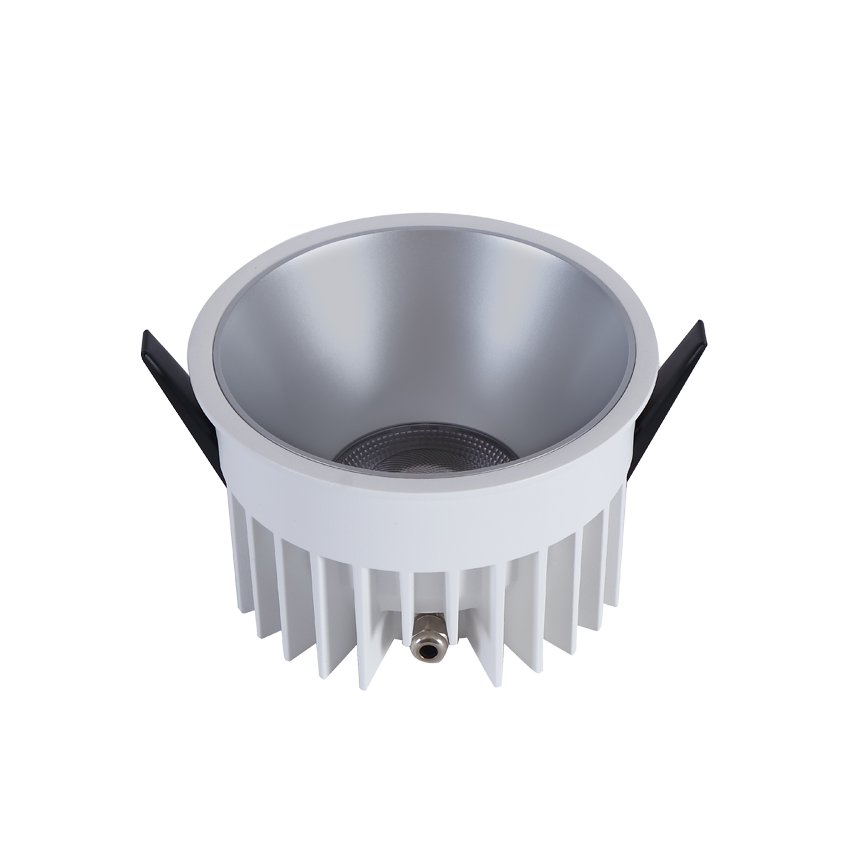

-Composed of a lens + anti-glare cup, the anti-glare cup is magnetically attached to the fixture and is available in a variety of colors: black, white, bronze, champagne and gold.

-It is a structural waterproof downlight, which means that even if you remove the anti-glare cup and then throw the lamp into the water, water will not get inside. Different from ordinary overall waterproofing.

-Round and Square shapes optional. The round shape is a classic style that never goes out of style. There are 4 angles to choose from: 15/35/38/60.


LED IP65 lights are safe for the bathroom LED downlights zone 1 where most of the water is. For bathroom LED downlights, an IP65 rating is not only recommended but is required if you don't want to ruin the lights

due to water damage. In other areas, you can choose IP44 or IP20 downlights.


However, the DTI series is a downlight with limited directionality because it is fixed in one direction and cannot be easily adjusted or turned. This can limit their usefulness to specific tasks or areas of the room.


Advantages
  1. Stylish, contemporary design

  2. Sturdy, Exquisite Construction

  3. Ideal for low ceilings due to the recessed design.

  4. High-Quality, Corrosion-Resistant, and Rust-Resistant All Aluminum

  5. IP65 for maximum protection against humidity and dust

  6. Enjoy Rain or Shine—Conveniently Suitable for Wet Locations


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-DTI-R15W>80/902700K-5000K>0.900.35AAC220-240V15°/35°/38°/60°D86*54mm75mm
JST-DTI-R20W>80/902700K-5000K>0.900.50AAC220-240V15°/35°/38°/60°D100*64mm90mm
JST-DTI-R30W>80/902700K-5000K>0.900.75AAC220-240V15°/35°/38°/60°D136*83mm125mm
JST-DTI-R40W>80/902700K-5000K>0.901.00AAC220-240V15°/35°/38°/60°D158*96mm145mm
JST-DTI-R50W>80/902700K-5000K>0.901.25AAC220-240V15°/35°/38°/60°D180*109mm165mm

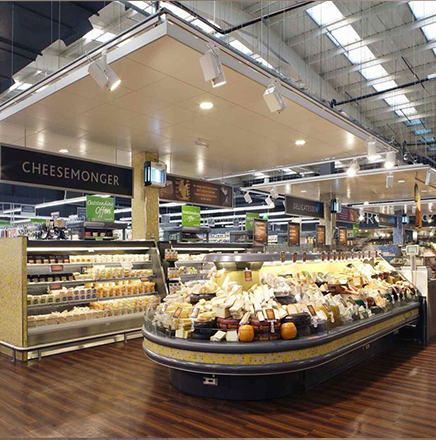

Application

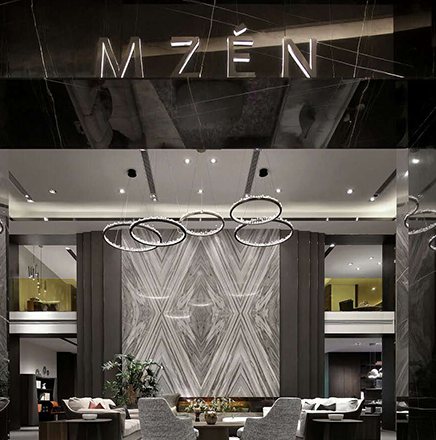

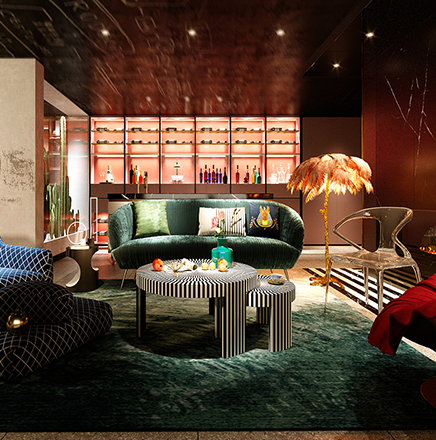

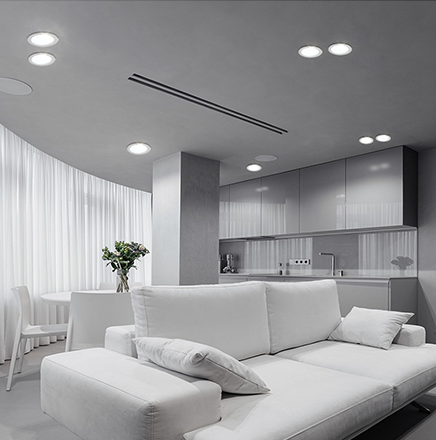

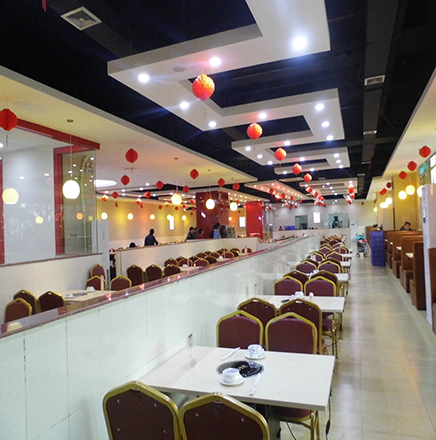

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket lighting,outdoor ceiling areas lighting, under canopies lighting etc.
