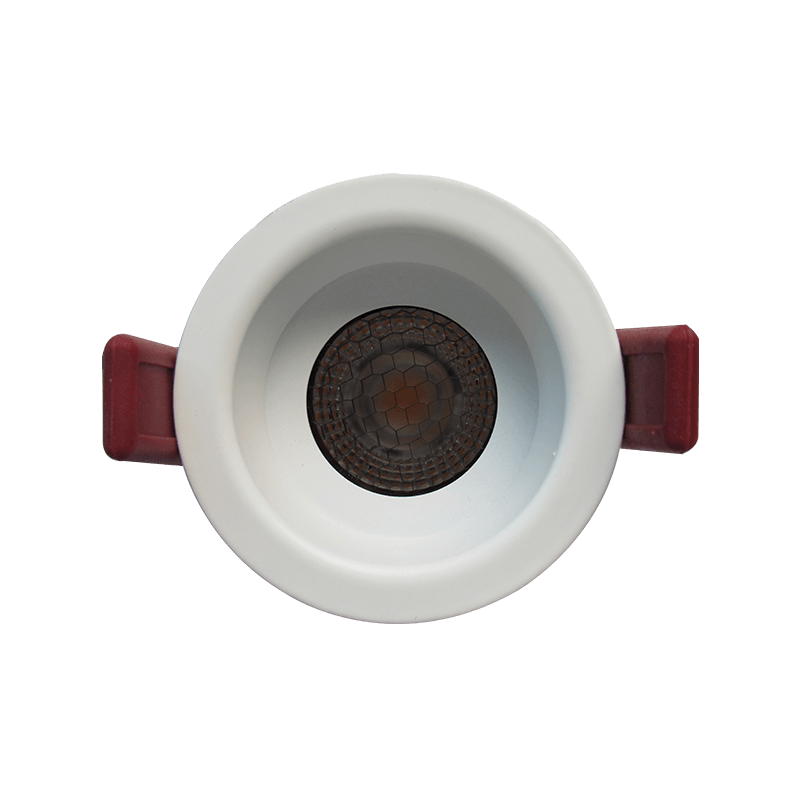

LED Hotel Downlight

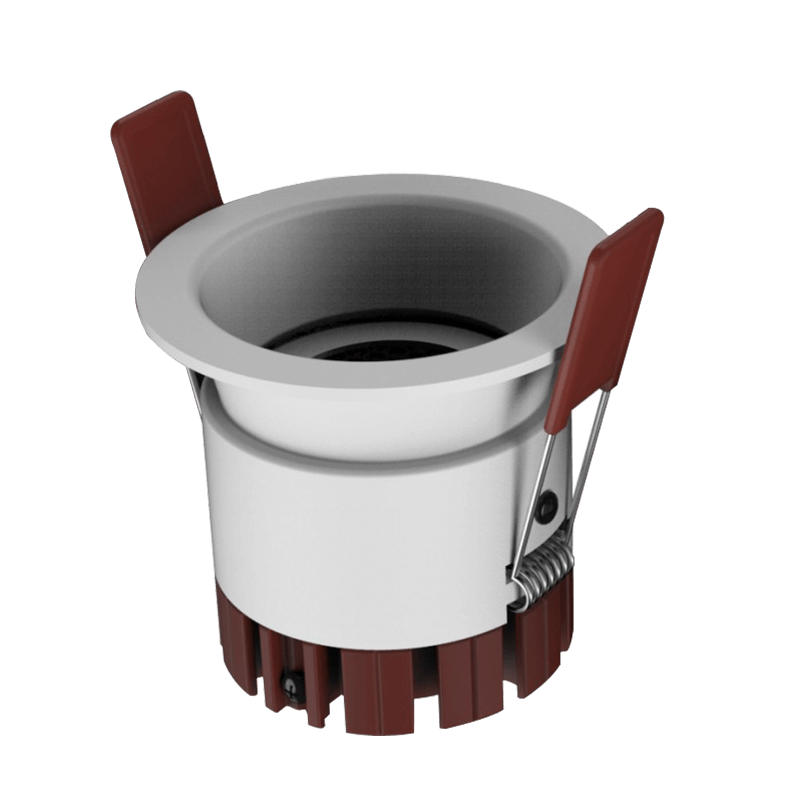

LED Hotel Downlight HTB Series

Model: JST-HTB

Wattage: 7W/12W

LED Chip: CREE

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/36°

Diameter: 72mm/88mm

Cutout: 65mm/75mm

Description

LED ceiling lights are LED downlight fixtures installed in the ceiling to illuminate objects below. Thanks to their flush installation, the fixture will not impact on the ceiling style or interior architecture, blending

seamlessly with the overall style of the building. LED ceiling lights are widely used for indoor commercial lighting, in applications such as museum lighting, hotel lighting, and office lighting.


High-quality aluminum shell, corrosion-resistant, rust-proof, oxidation-resistant, sturdy and durable. Reinforced high-elastic buckle, strong spring elasticity, strong withstand pressure and no deformation, built-in

decorative ring, high safety. Easy to install without using any tools.


Narrow frame design, hidden in the ceiling, is simple but not simple. 15°/24°/36° optional, precise light control in one step.

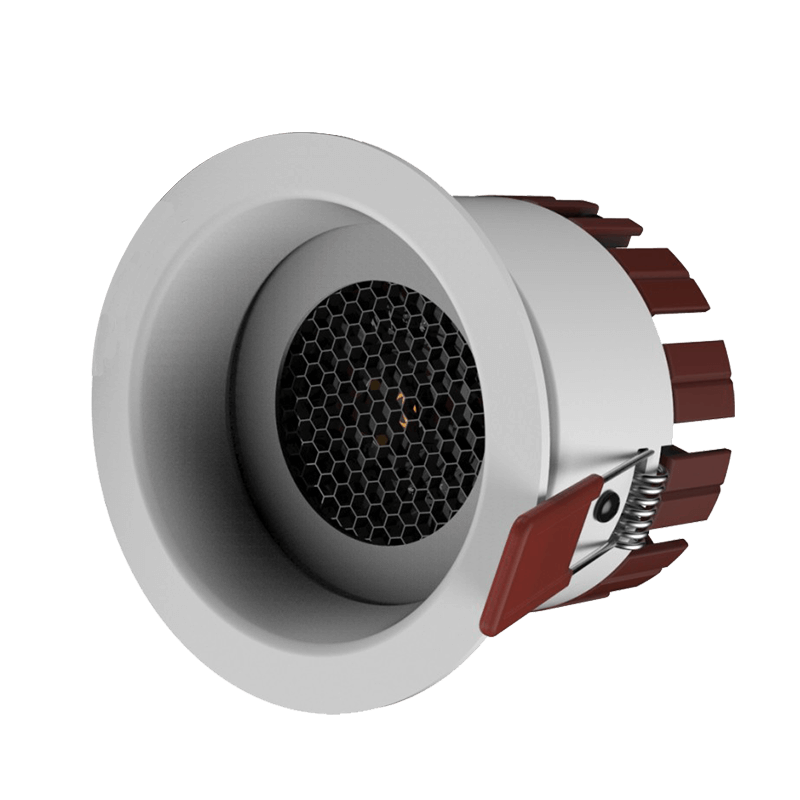

The design of the deep tubes and honeycomb mesh is truly anti-glare. The light spot is uniform, not dazzling, and more eye-friendly;


2700K, 3000K, 4000K, 5000K optional, LED energy-saving eye protection chip, bright and soft light, anti-glare and energy-saving, LED technology can save up to 80% power, and has a service life of up to 50,000 hours.


Advantages

· High quality CITIZEN COB, CRI>90, SDCM<3

· RA>90, comfortable, delicate and uniform light

· Deep cup reflective high-transmission filter, effectively filter out stray light and glare

· Anti-glare lens with honeycomb, better dispersion of light, avoid glare, care for each pair of bright eye

· Modularity structure, easier to assemble, install and disassemble, no damage to the ceiling floor

· Family structure appearance design to meet with the uniform aesthetic requirement

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-HTB7W>80/902700K-5000K>0.650.16AAC220-240V15°/24°/36°D72*H64mm65mm
JST-HTB12W>80/902700K-5000K>0.900.30AAC220-240V15°/24°/36°D88*H92mm75mm
Application

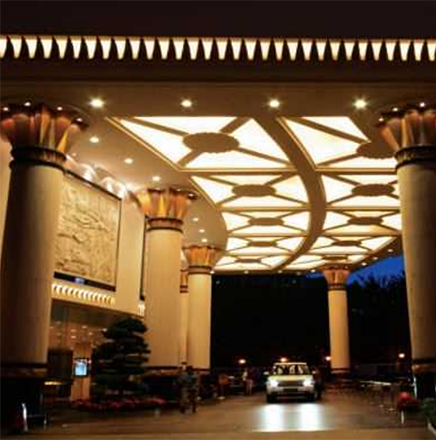

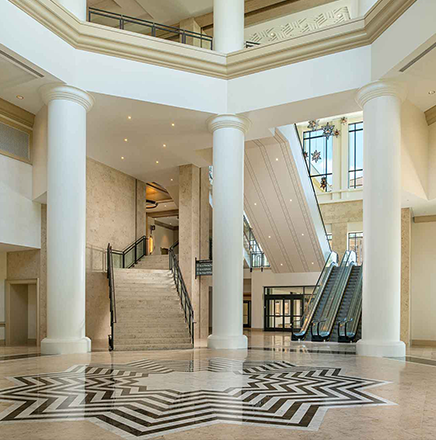

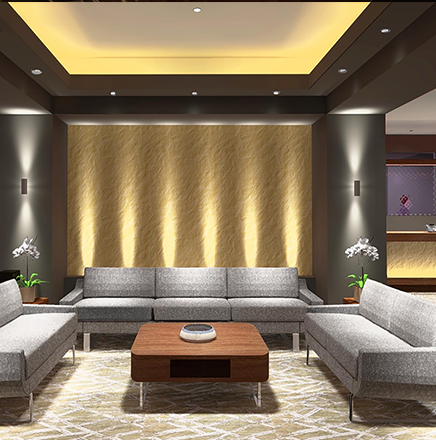

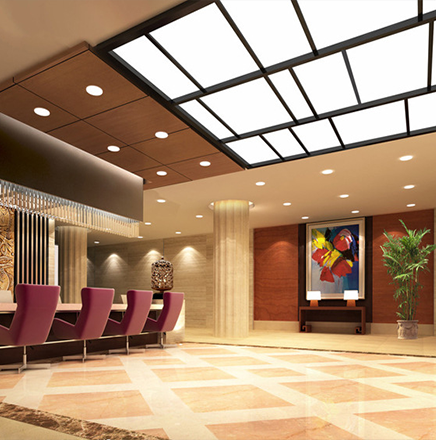

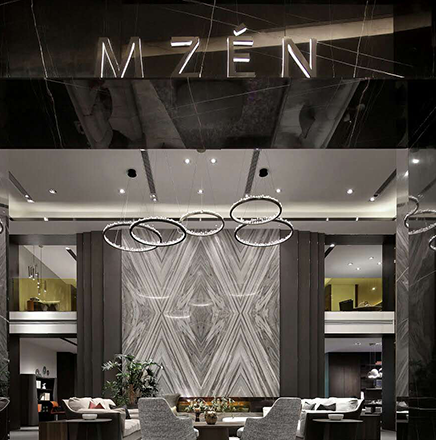

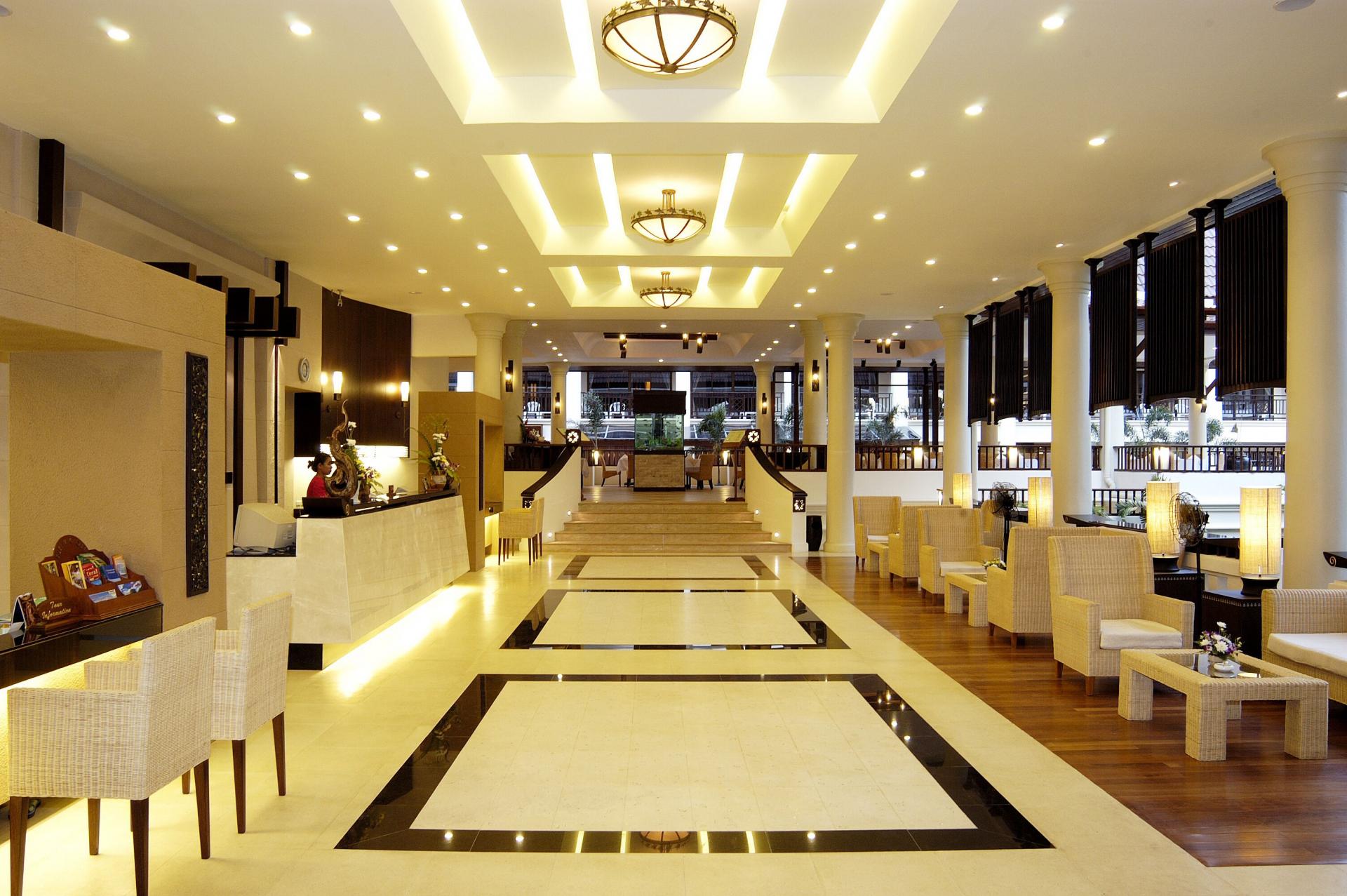

Fashion stores lighting, Stations lighting, Hotels  lighting, Offices  lighting, Shopping malls  lighting, Clubs  lighting, Supermarkets  lighting, Liviing room lighting etc.
