LED Hotel Downlight

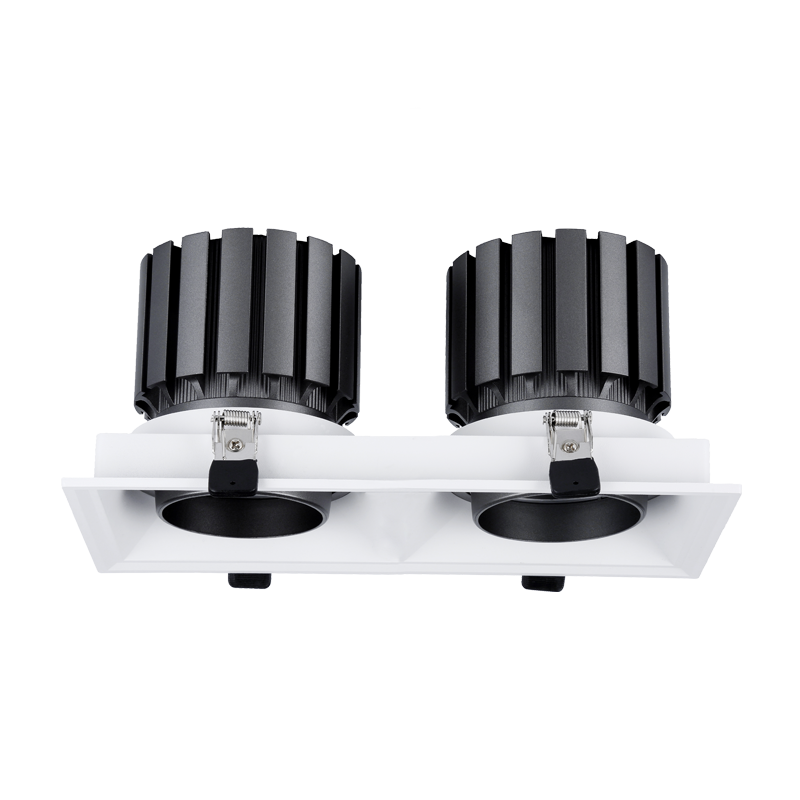

LED Hotel Downlight Double head HTW Series

Model: JST-HTW

Wattage: 20W-70W

LED Chip: CREE/Citizen

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/38°

Diameter: 125mm-275mm

Cutout: 115mm-255mm


Description

LED Hotel Downlight series were designed by well-known lighting designers according to the deep anti-glare lighting perfermance and applacation which could archieve UGR<10. Modular design, quickly assemble and disassemble. Front maintenance. Different reflector shapes for options. The shape for fittings include Round, Square, Fixed, Gimbal, Trimless.


HTW series downlights can be specified for use with different frame. Round, Square, Double head optinals. Deep hidden light source desigh, let you see the light but can not see the light source , at the same time.

Equipped with high-quality lenses and reflectors, this high-lumen, well-focused LED downlight offers unmatched performance for general, task and accent lighting.


HTW series spotlights can be used for stage lighting, art gallery lighting, museum lighting to highlight the illuminated object area. These lights are often used to provide accent lighting or task lighting in a room, and

add drama and dimension to any outdoor space


To add to its adaptability, the downlight can be further customized by choosing from a range of baffle and trim finishes, drivers, beam angle and CCT. This customization allows users to create a unique downlight that

fits their specific requirements and style preferences.



Advantages

· High quality CITIZEN COB, CRI>90, SDCM<3

· Anti-glare design with various free replacement accessories

· Triac, 0-10V and DALI dimming are available

· Modularity structure, easier to assemble, deep refector, excelient, anti-glare design

· Family structure appearance design to meet with the uniform aesthetic requirement


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-HTW10W*2>80/902700K-5000K>0.900.50AAC220-240V15°/24°/38°125*70mm115*60mm
JST-HTW15W*2>80/902700K-5000K>0.900.75AAC220-240V15°/24°/38°165*90mm155*80mm
JST-HTW25W*2>80/902700K-5000K>0.901.25AAC220-240V15°/24°/38°220*110mm200*100mm
JST-HTW35W*2>80/902700K-5000K>0.901.75AAC220-240V15°/24°/38°275138mm255*125mm
Application

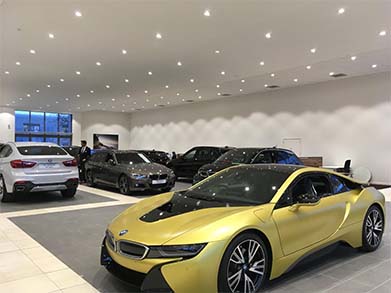

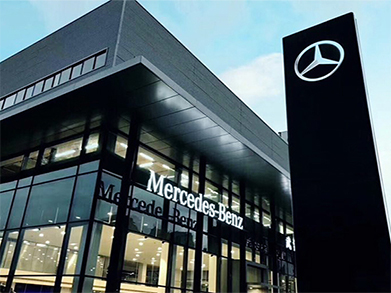

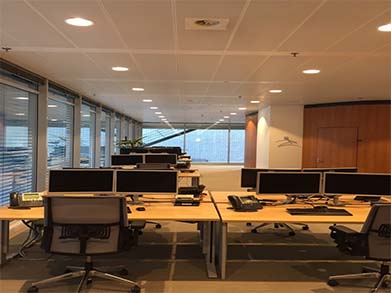

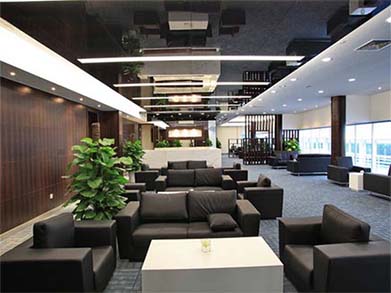

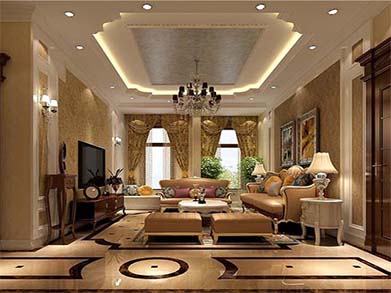

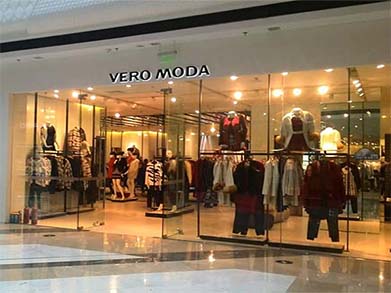

Fashion stores lighting, Stationsli ghting, Hotels lighting, Offices kighting, Shopping malls lighting, Clubs lighting, Supermarkets lighting etc.

LED Hotel Downlight Double head HTW Series LED Hotel Downlight Double head HTW Series LED Hotel Downlight Double head HTW Series
LED Hotel Downlight Double head HTW Series LED Hotel Downlight Double head HTW Series LED Hotel Downlight Double head HTW Series
