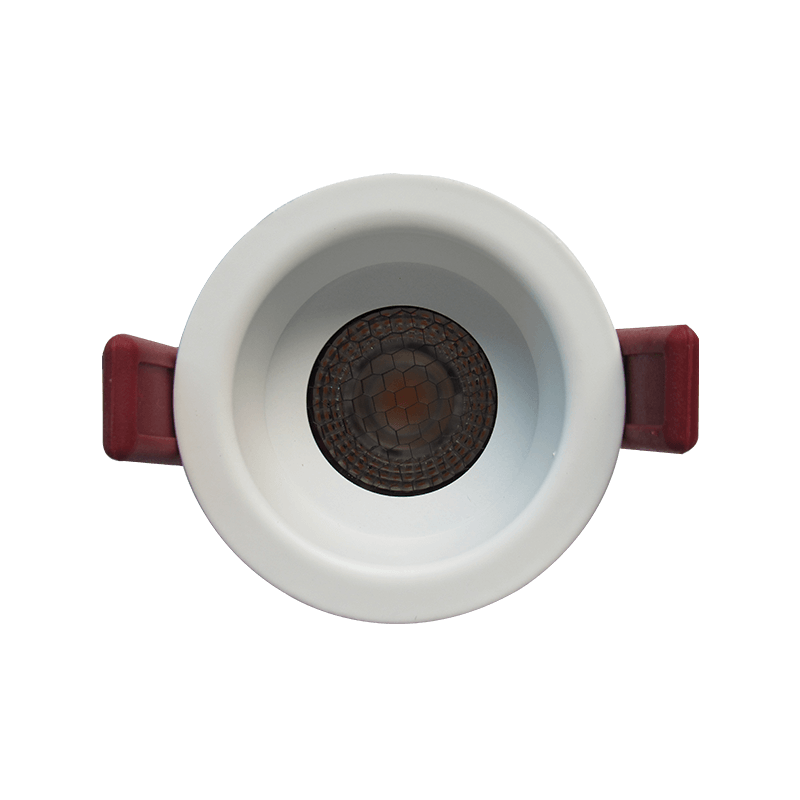

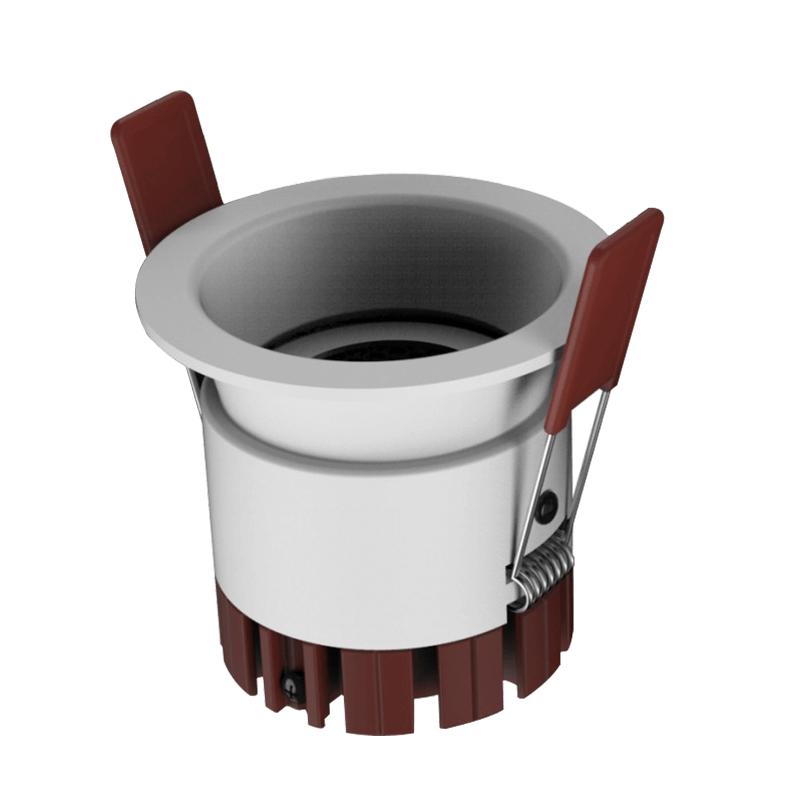

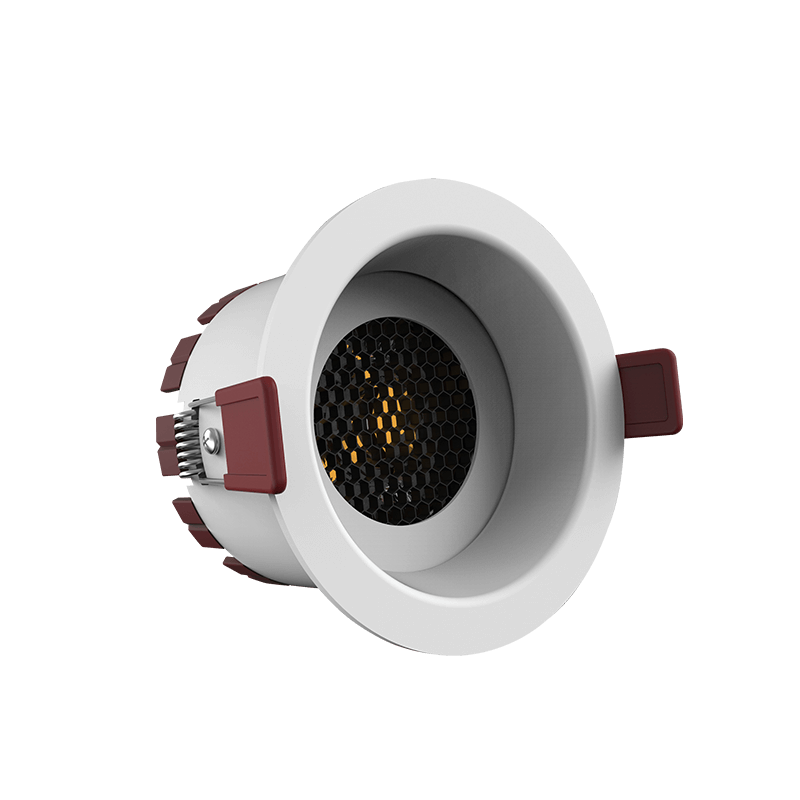

LED Hotel Downlight

LED Hotel Downlight HTB

Model: JST-HTB

Wattage: 7W/12W

LED Chip: CREE

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/36°

Diameter: 72mm/88mm

Cutout: 65mm/75mm

Description

Mini downlight series were designed by well-known lighting designers according to the deep anti-glare lighting perfermance and applacation which could archieve UGR<10. Modular design, quickly assemble and disassemble. Front maintenance. Different reflector shapes for options. The shape for fittings include Round, Square, Fixed, Gimbal, Trimless.

Advantages

· High quality CITIZEN COB, CRI>90, SDCM<3

· Anti-glare design with various free replacement accessories

· Triac, 0-10V and DALI dimming are available

· Modularity structure, easier to assemble, install and disassemble, no damage to the ceiling floor

· Family structure appearance design to meet with the uniform aesthetic requirement

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-HTB7W>80/902700K-5000K>0.650.15AAC220-240V15°/24°/36°D72*H64mm65mm
JST-HTB12W>80/902700K-5000K>0.900.30AAC220-240V15°/24°/36°D88*H92mm75mm
Application

Fashion stores, Stations, Hotels, Offices, Shopping malls, Clubs, Supermarkets etc.
