LED Linear Light

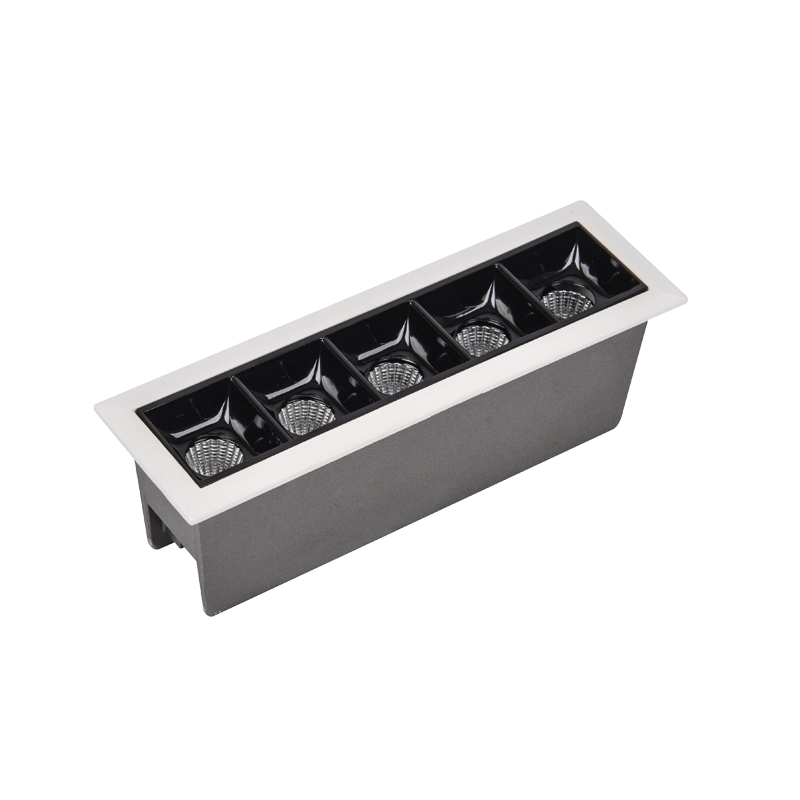

LED Linear Light LL-AC Series

Model: JST-LL-AC

Wattage: 2W-30W

LED Chip: OSRAM3030

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/30°/45°

Diameter: 45mm-412mm

Cutout: 37mm-405mm

Description

LED Linear Light LL-AC Series the lamp body, in fashionable design,is made of 6063 section aluminum and PC reflector. It is combined LED lighting with building harmoniously. Creat a circle of light from a line of LED downlights, A narrow line of nano LED downlights for pure minimalism, three choices of beam angle 15°/30°/45°, Brilliant quality, more than 50,000 hours life span.

Advantages

. High brightness,low light decline

. Owns unique and attractive design

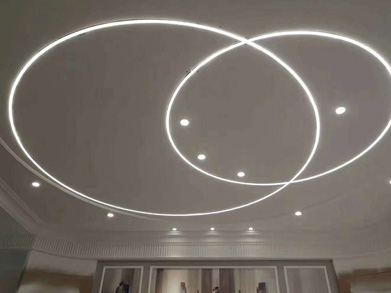

. Creat a circle of light from a line of LED downlight

. A narrow line of nano LED downlights for pure minimalism

. Superior glare control for high performance and visual comfort

. The installation is easy and safe

Specification

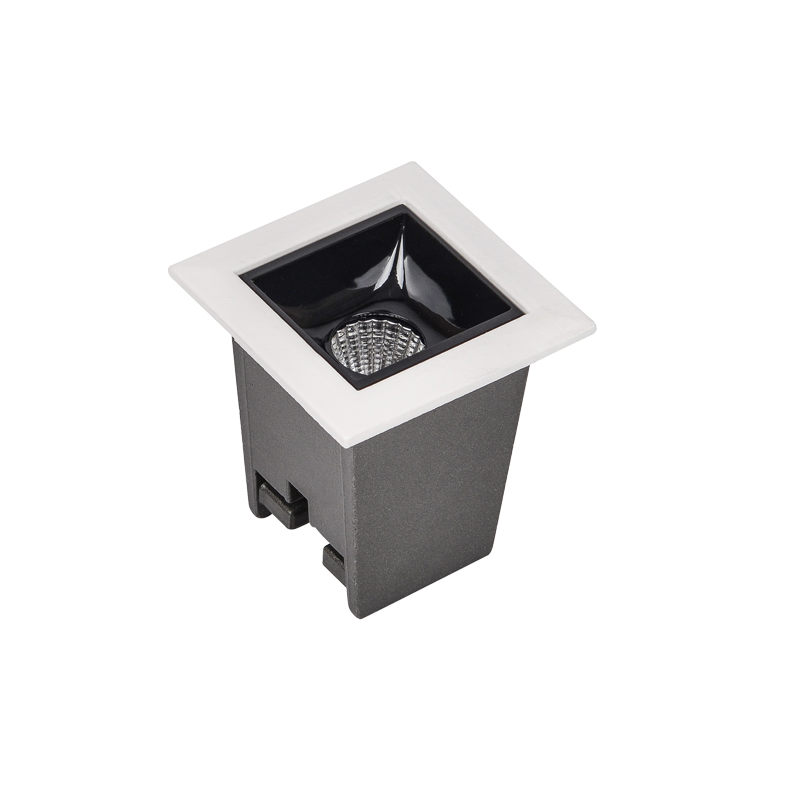

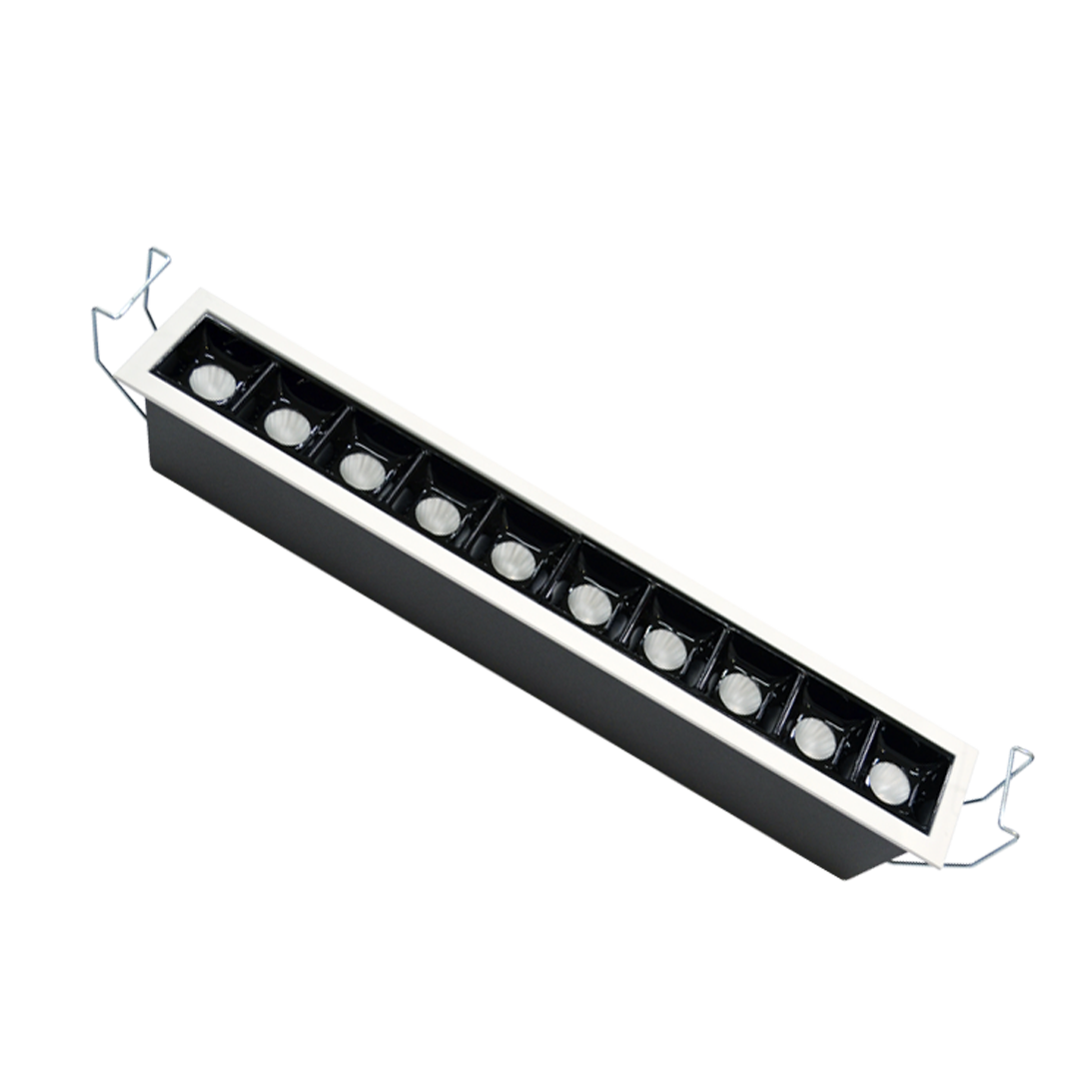

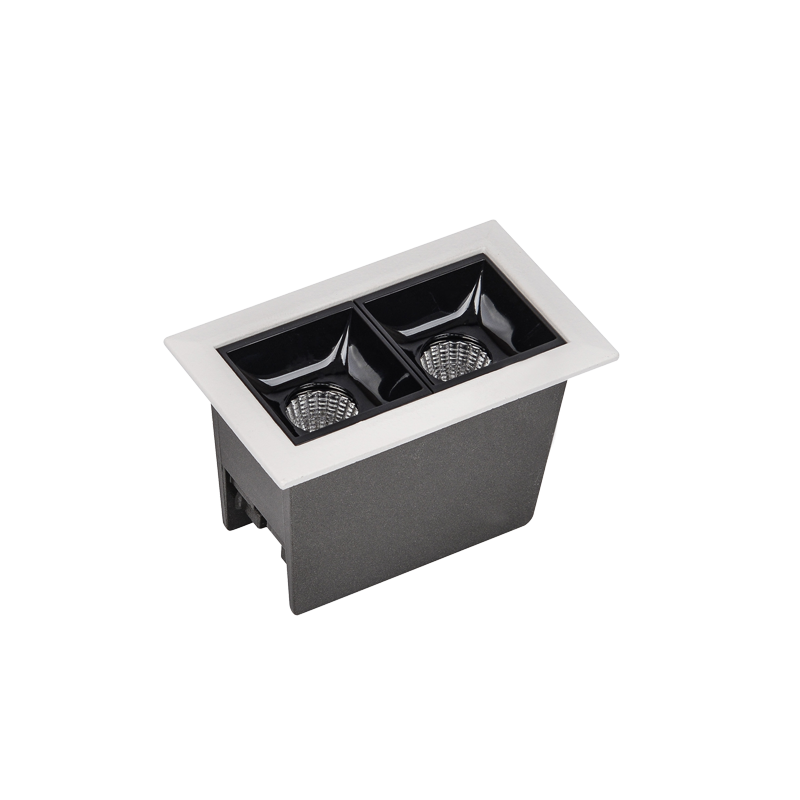

ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-LL-AC2W>80/902700K-5000K>0.650.05AAC220-240V15°/30°/45°L45*W45*H49mmL37*W37mm
JST-LL-AC4W>80/902700K-5000K>0.650.60AAC220-240V15°/30°/45°L75*W45*H49mmL68*W37mm
JST-LL-AC10W>80/902700K-5000K>0.650.60AAC220-240V15°/30°/45°L147*W45*H49mmL140*W37mm
JST-LL-AC20W>80/902700K-5000K>0.900.60AAC220-240V15°/30°/45°L280*W45*H49mmL273*W37mm
JST-LL-AC30W>80/902700K-5000K>0.900.60AAC220-240V15°/30°/45°L412.7*W45*4H9mmL405*W37mm

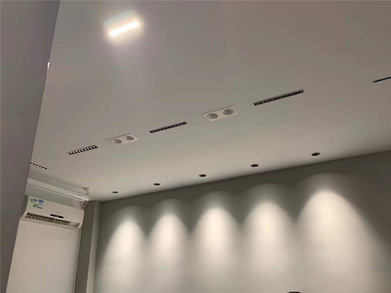

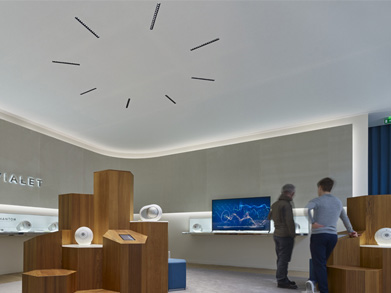

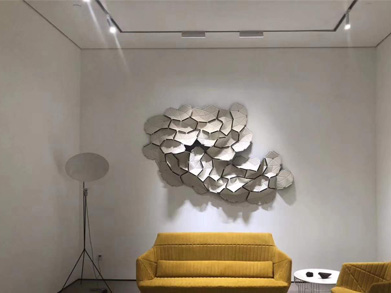

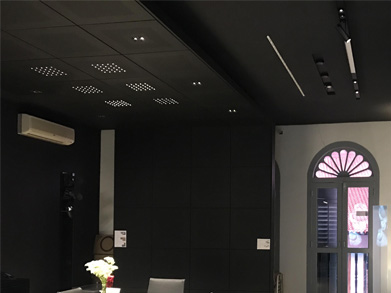

Application

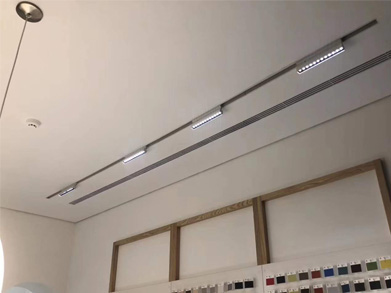

Fashion stores, Stations, Hotels, Offices, Shopping malls, Clubs, Supermarkets etc.

LED Linear Light LL-AC Series LED Linear Light LL-AC Series LED Linear Light LL-AC Series
LED Linear Light LL-AC Series LED Linear Light LL-AC Series LED Linear Light LL-AC Series
