LED Linear Light

LED Linear Light LL-LC1 Series

Model: JST-LL-JC1

Wattage: 3W-35W

LED Chip: OSRAM5050

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/38°/50°/50x50°/70x70°/35x70°

Diameter: 51mm-393mm

Cutout: 46mm-390mm

Description

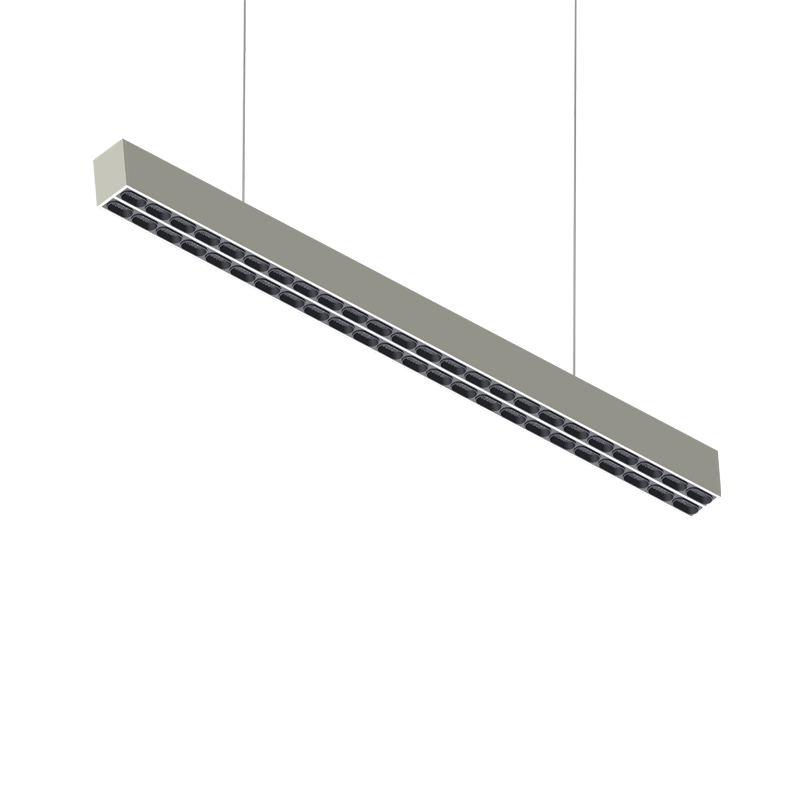

LED Linear Light LL-JC1 Series the lamp body, in fashionable design,is made of 6063 section aluminum and PC reflector. It is combined LED lighting with building harmoniously. Creat a circle of light from a line of LED downlights, A narrow line of nano LED downlights for pure minimalism, seven choices of beam angle 15°/24°/38°/50°/50x50°/70x70°/35x70°, Brilliant quality, more than 50,000 hours life span.

Advantages

. Creat a circle of light from a line of LED Downlights
. A narrow line of nano LED Downlights for pure minimalism
. Superior glare control for high performance and visual comfort
. Seven choices of beam angle 15°/24°/38°/50°/50x50°/70x70°/35x70°

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout

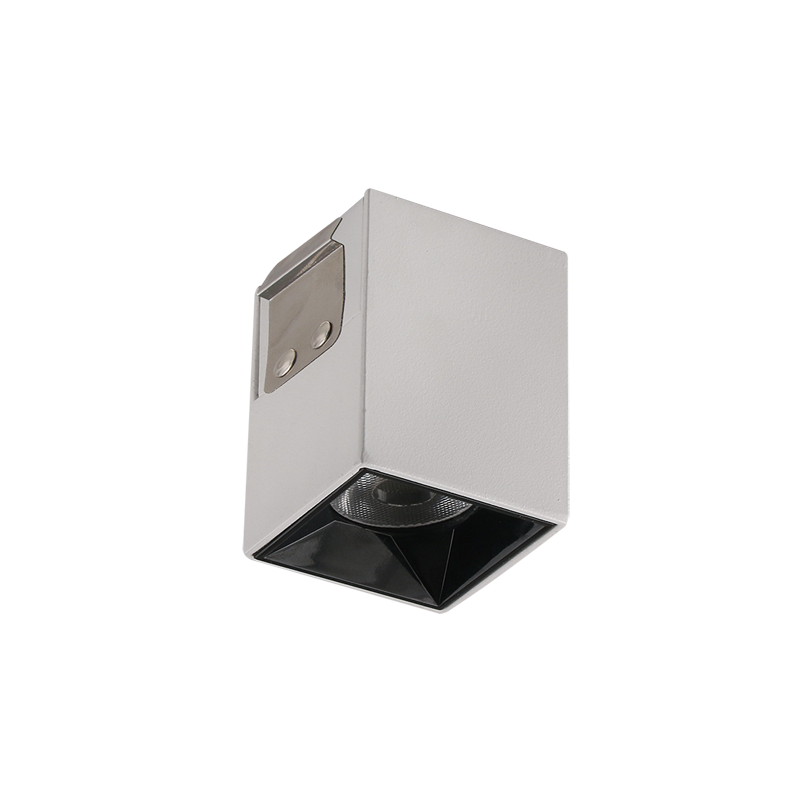

JST-LL-JC13W>80/902700K-5000K>0.650.60AAC220-240V

15°/24°/38°/50°

/50x50°/70x70°/35x70°

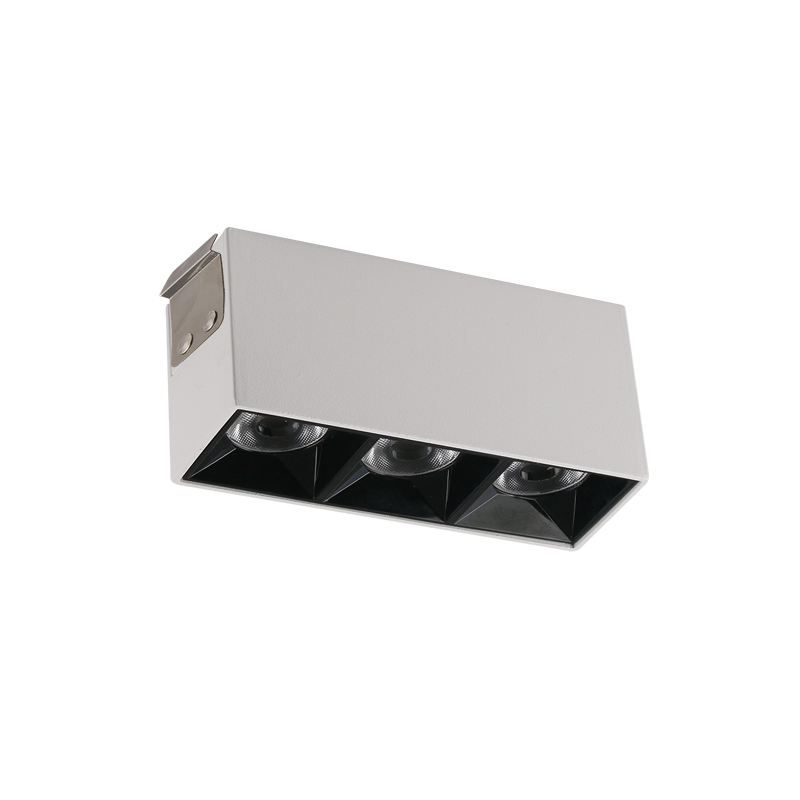

L51*W51*H56mmL46*W46mm
JST-LL-JC110W>80/902700K-5000K>0.900.35AAC220-240V

15°/24°/38°/50°

/50x50°/70x70°/35x70°

L127*W51*H56mmL124*W46mm
JST-LL-JC115W>80/902700K-5000K>0.900.40AAC220-240V

15°/24°/38°/50°

/50x50°/70x70°/35x70°

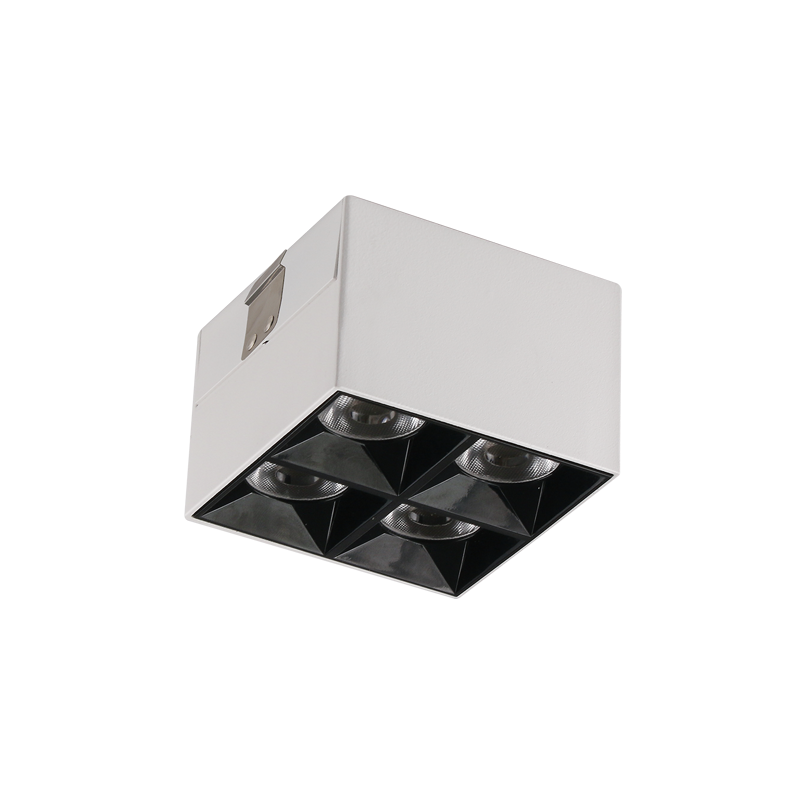

L90*W90*H56mmL86*W86mm
JST-LL-JC120W>80/902700K-5000K>0.900.60AAC220-240V

15°/24°/38°/50°

/50x50°/70x70°/35x70°

L203*W51*H56mmL200*W46mm
JST-LL-JC130W>80/902700K-5000K>0.900.80AAC220-240V

15°/24°/38°/50°

/50x50°/70x70°/35x70°

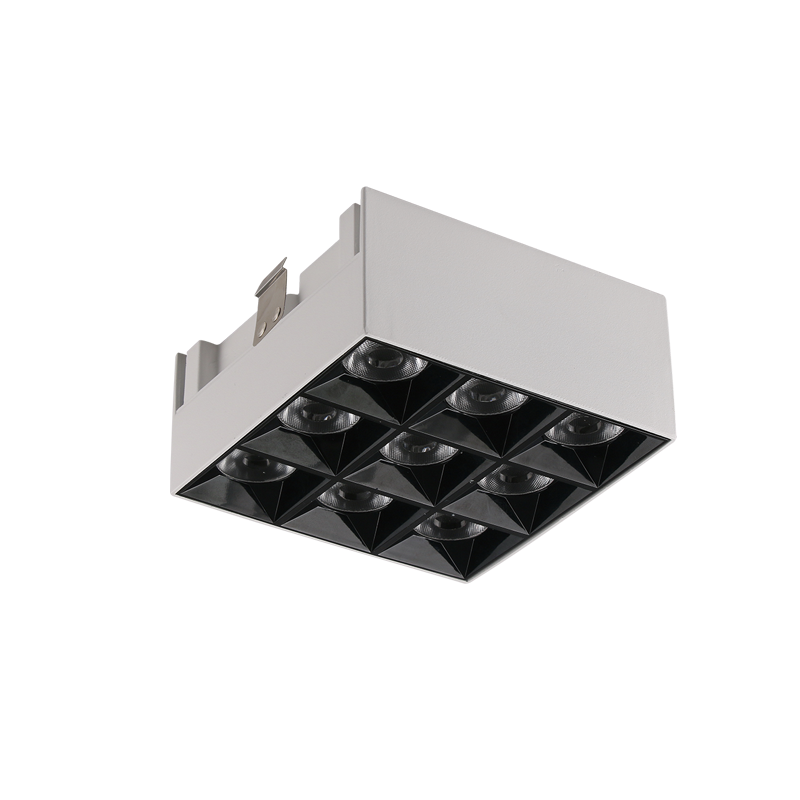

L128*W128*H56mmL124*W124mm
JST-LL-JC135W>80/902700K-5000K>0.900.90AAC220-240V

15°/24°/38°/50°

/50x50°/70x70°/35x70°

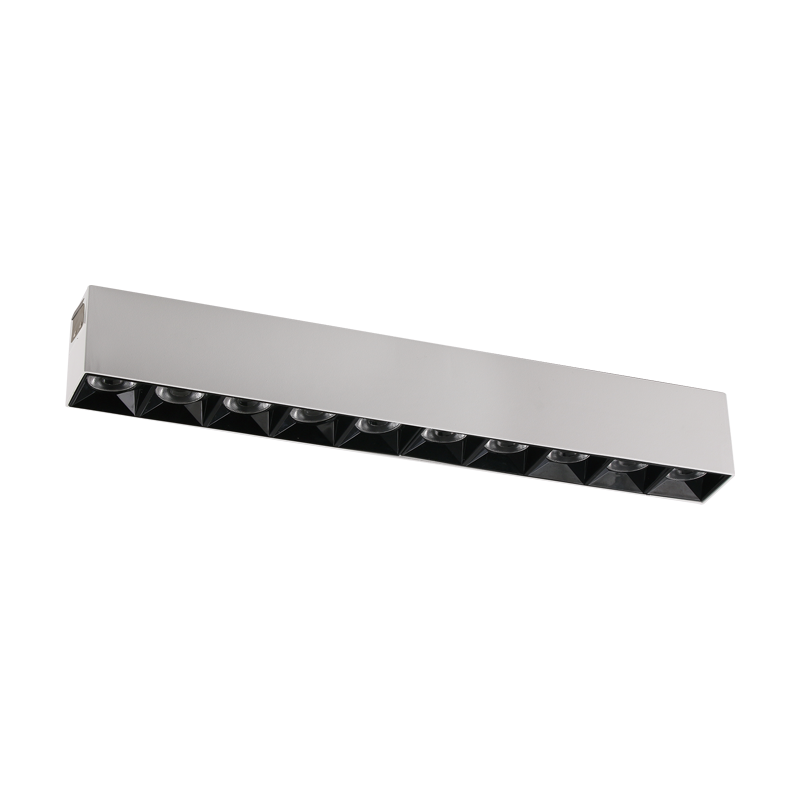

L393*W51*H56mmL390*W46mm

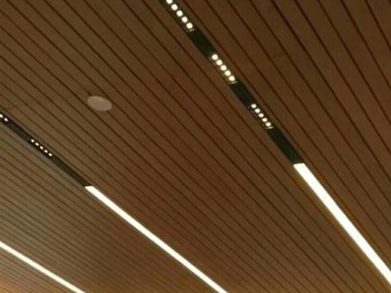

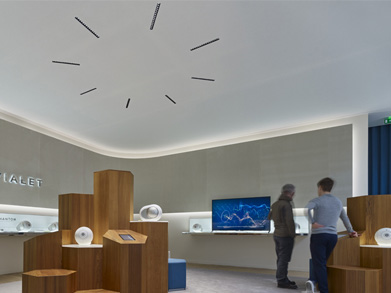

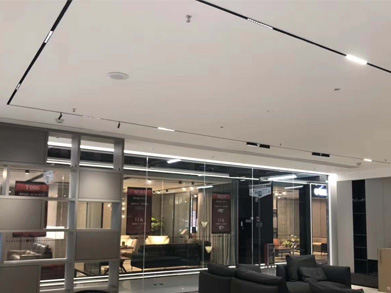

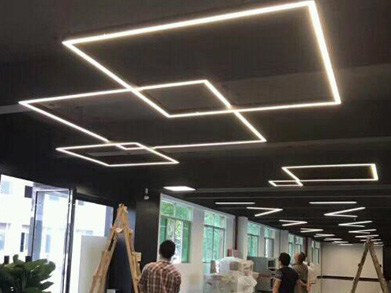

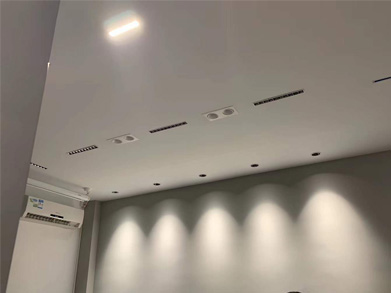

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting
