LED Linear Light

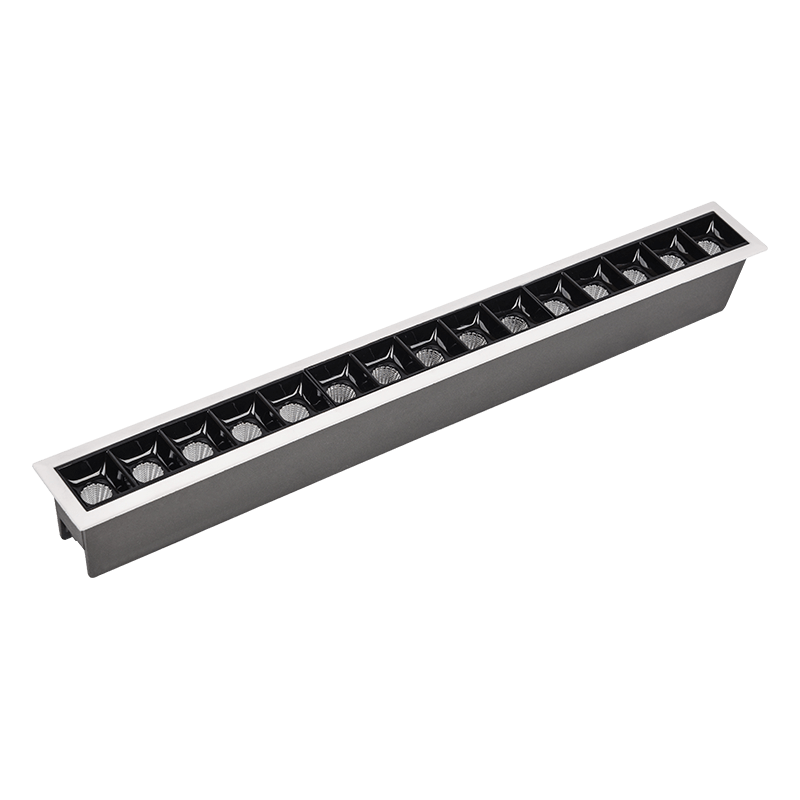

LED Linear Light LL-ZC Series

Model: JST-LL-ZC

Wattage: 4W-36W

LED Chip: OSRAM3030/Philips3030

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 40°*70°

Diameter: 137mm-1198mm

Installnation: Surface Mounted/Suspendent

Description

LED Linear Light LL-ZC Series the lamp body, in fashionable design,is made of 6063 section aluminum and PC reflector. It is combined LED lighting with building harmoniously. Creat a circle of light from a line of LED downlights, A narrow line of nano LED downlights for pure minimalism, rectangular optical reflector of beam angle 40°*70°, Brilliant quality, more than 50,000 hours life span.

Advantages

. Rectangular optical reflector offer special light effects

. Creat a circle of light from a line of LED Downlights

. A narrow line of nano LED Downlights for pure minimalism
. Superior glare control for high performance and visual comfort

. Special beam angle 40°*70°

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionInstallnation
JST-LL-ZC4W>80/902700K-5000K>0.900.35AAC220-240V

15°/30°/45°

L137*W35*H82mmSurface Mounted
JST-LL-ZC8W>80/902700K-5000K>0.900.50AAC220-240V

15°/30°/45°

L270*W35*H82mmSurface Mounted
JST-LL-ZC12W>80/902700K-5000K>0.900.75AAC220-240V

15°/30°/45°

L420*W35*H82mmSurface Mounted
JST-LL-ZC16W>80/902700K-5000K>0.901.00AAC220-240V

15°/30°/45°

L535*W35*H82mmSurface Mounted
JST-LL-ZC24W>80/902700K-5000K>0.901.20AAC220-240V

15°/30°/45°

L800*W35*H82mmSurface Mounted
JST-LL-ZC32W>80/902700K-5000K>0.900.90AAC220-240V

15°/30°/45°

L1065*W35*H82mmSurface Mounted
JST-LL-ZC36W>80/902700K-5000K>0.900.90AAC220-240V

15°/30°/45°

L1198*W35*H82mmSurface Mounted
Application

Art galleries, museums, villas, hotels, high-end clubs, bars, exhibition halls.

LED Linear Light LL-ZC Series LED Linear Light LL-ZC Series LED Linear Light LL-ZC Series
LED Linear Light LL-ZC Series LED Linear Light LL-ZC Series LED Linear Light LL-ZC Series
