LED Linear Light

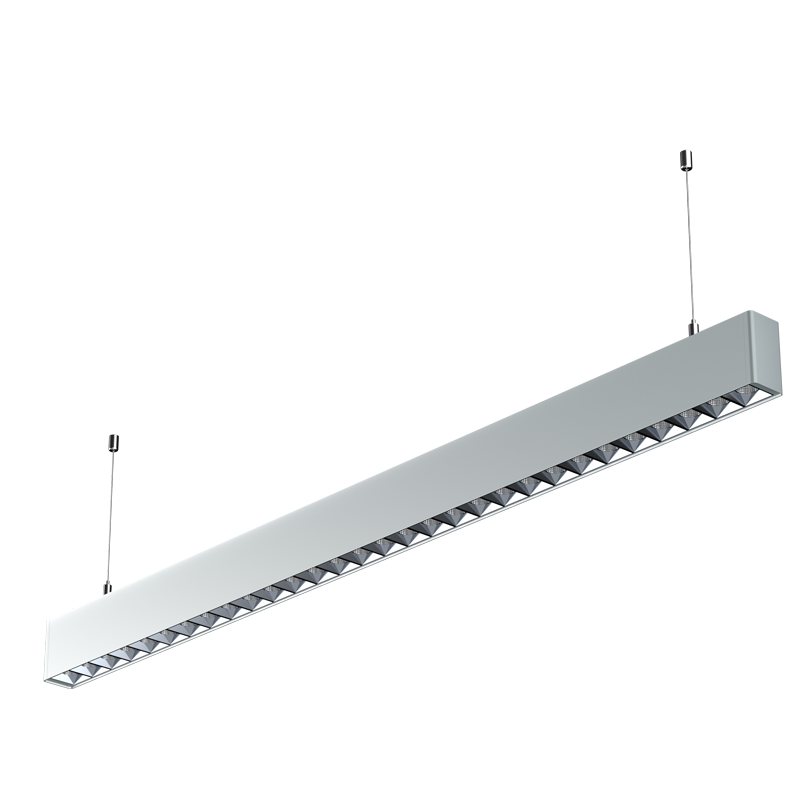

LED Linear Light LL-GC Series Up-Down

Model: JST-LL-GC Up-Down

Wattage: 30W+15W-60W+20W

LED Chip: OSRAM3030/Philips3030/Epistar2835

Driver Brand: OSRAM/Philips/Lifud/BOKE

RA: >80/90

Finish Color: White/Black/Customized

Beam Angle: 15°/ 24°/ 38°/ 50°/ 50°*50°/ 70°*70°/ 35°*70°/ 90°*90°/ Asymmetric

Size: See below

Installnation: Surface Mounted / Suspendent


Description

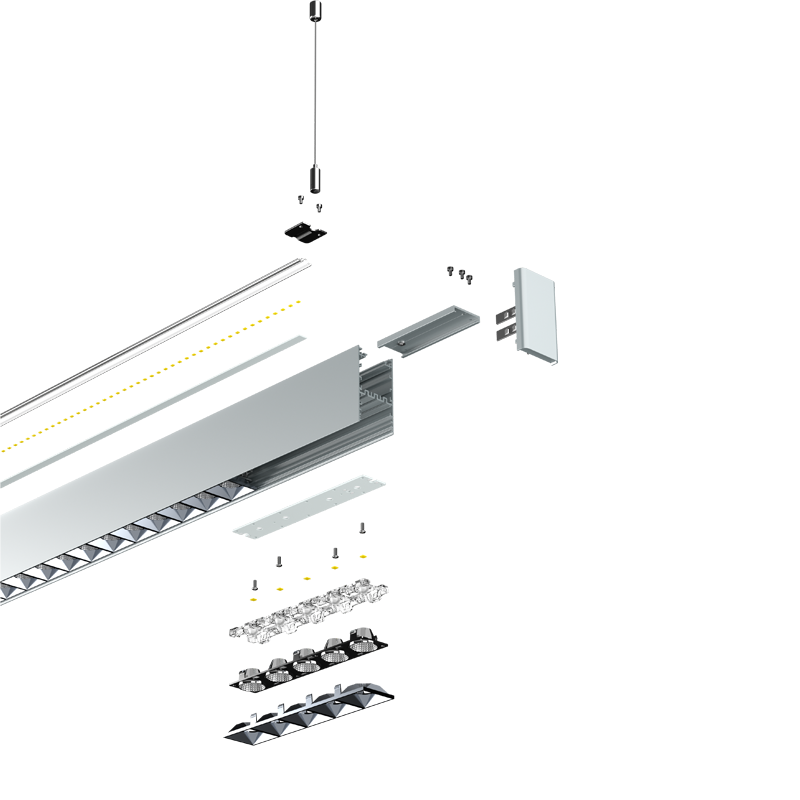

Jarstar's up-down linear light LL-GC series is a versatile linear lighting system with a modern aesthetic, offering a uniform light distribution that meets a variety of design needs. The LL-GC Series of extra-rigid sleek

aluminum housing in different lengths, may be easily connected to form long linear runs. Straight runs can be combined with preassembled lit-connectors in X, L, T, V, and Y configurations to create intricate patterns

and forms.  LL-GC series as one of Architectural linear lighting which is often used in commercial and industrial settings but may also be installed in residential buildings.


Well-designed architectural lighting enables comfortable and sufficient illumination for the safety and activity of the occupants. Architectural lighting should balance function and art. It not only emphasize the

dramatic features in a space but also be required to provide the voluminous lighting necessary for the room’s function.


Many different types of architectural linear lighting fixtures are available, each with unique lighting design applications. Some of the most common types include:


  1. Recessed linear light: These fixtures are installed in the ceiling and are often flush with the ceiling, allowing for a smooth appearance. They provide a diffused light that is ideal for general illumination.

  2. Surface-mounted linear light: These fixtures are mounted on the surface of the ceiling or wall. They are typically used to provide a more direct light that is ideal for accenting or highlighting specific areas.

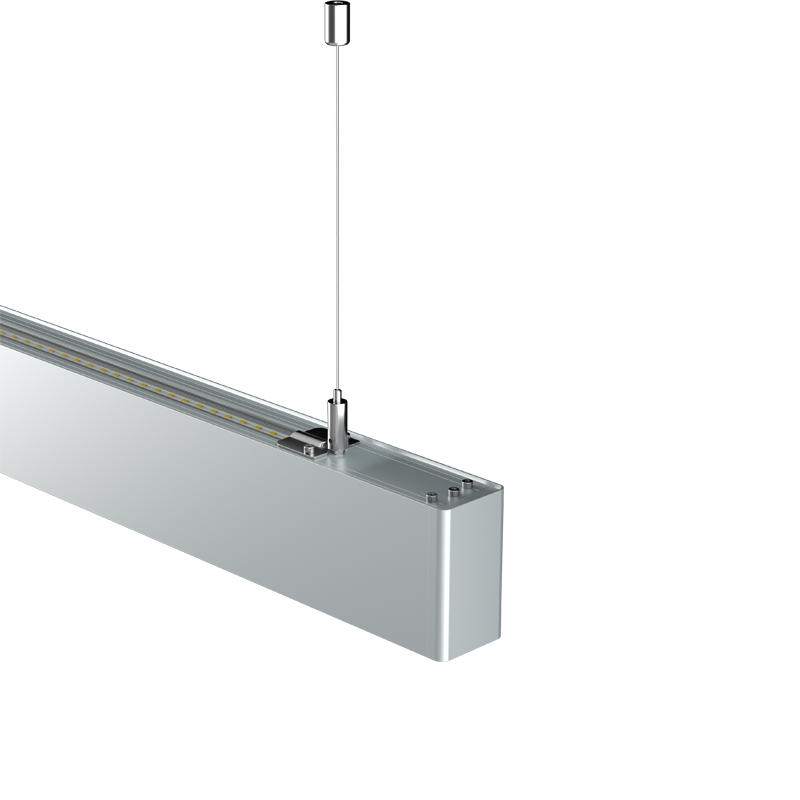

  3. Suspended linear light: These fixtures are suspended from the ceiling. They provide a dramatic light effect that can be used to divide a space or create a focal point, as well as a diffused general illumination.


Architectural linear lighting is a versatile and effective way to light almost any open indoor space. It can create various lighting effects, from subtle ambient light to dramatic accent lighting.


Advantages


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionInstallnation
JST-LL-GC30W+15W>80/902700K-5000K>0.900.75A/ 0.35AAC220-240V

15°/ 24°/ 38°/ 50°/ 50°*50°/ 70°*70°/

35°*70°/ 90°*90°/ Asymmetric

L1160*W37*H77mm

Surface Mounted/

Suspendent

JST-LL-GC40W+15W>80/902700K-5000K>0.901.00A/ 0.35AAC220-240V

15°/ 24°/ 38°/ 50°/ 50°*50°/ 70°*70°/

 35°*70°/ 90°*90°/ Asymmetric

L1160*W45*H79mm

Surface Mounted/

Suspendent

JST-LL-GC50W+20W>80/902700K-5000K>0.901.25A/ 0.50AAC220-240V

15°/ 24°/ 38°/ 50°/ 50°*50°/ 70°*70°/

35°*70°/ 90°*90°/ Asymmetric

L1540*W37*H77mm

Surface Mounted/

Suspendent

JST-LL-GC60W+20W>80/902700K-5000K>0.901.50A/ 0.50AAC220-240V

15°/ 24°/ 38°/ 50°/ 50°*50°/ 70°*70°/ 35°*70°/ 90°*90°/ Asymmetric

L1540*W45*H79mm

Surface Mounted/

Suspendent

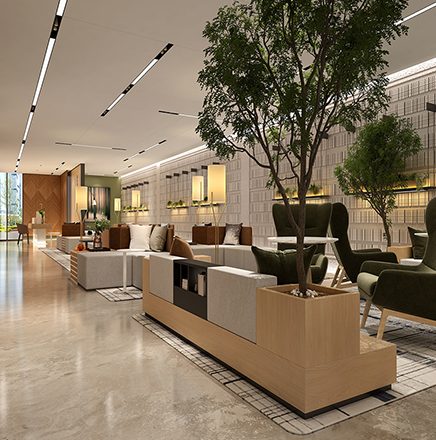

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.
