LED Track Light

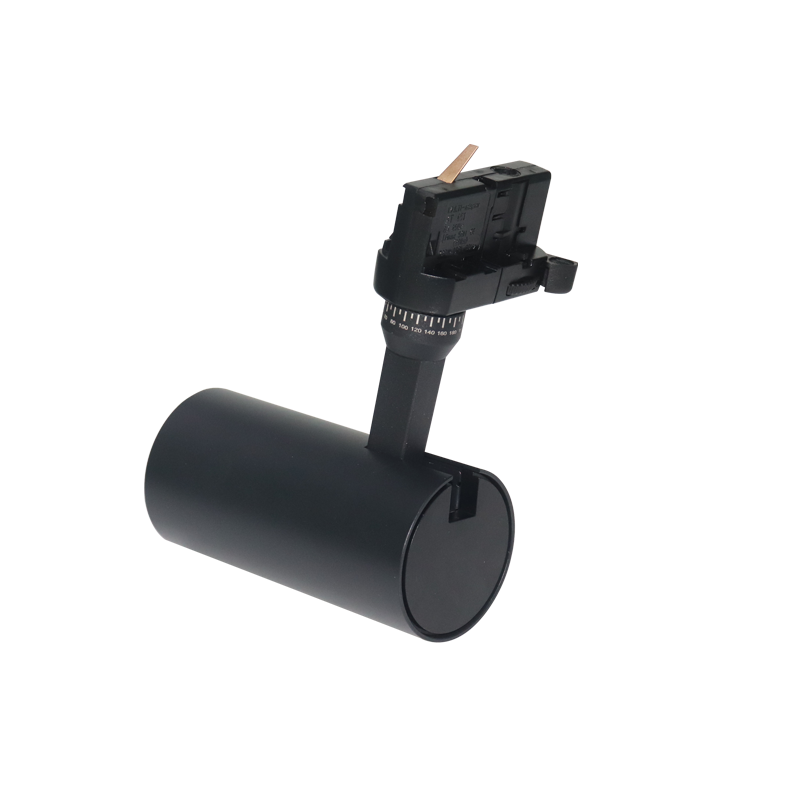

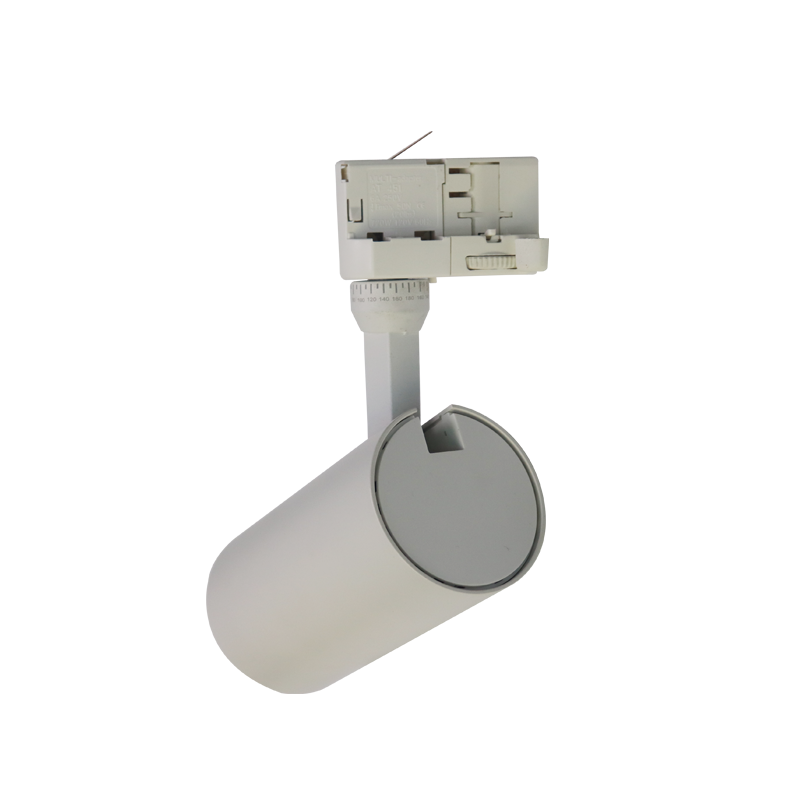

LED Track Light XG Series

Model: JST-XN series

Wattage: 10W-30W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Lifud/Tridonic

RA: >90/95

Finish Color: White/Black/Silver/Customized

Beam Angle: 15°/24°/36°

Diameter: 60mm/70mm/80mm/

Adapater: 6wires/4wires/3wires/2wires


Description

LED track lights are LED lights installed on a track.  It is an efficient of lighting where light fixtures are attached anywhere on a continuous track rail which is electrically charged as compared to the need of routing

electrical wiring to individual light positions. They can smoothly slide along the track rail and allow for adjustable illumination angles. Generally, they are used as spotlights in places where accent lighting is required.


LED track lights have numerous advantages such as energy efficiency, longer lifespan, lesser heat emission, relatively inexpensive, versatility to add or remove etc and are now commonly used everywhere from the

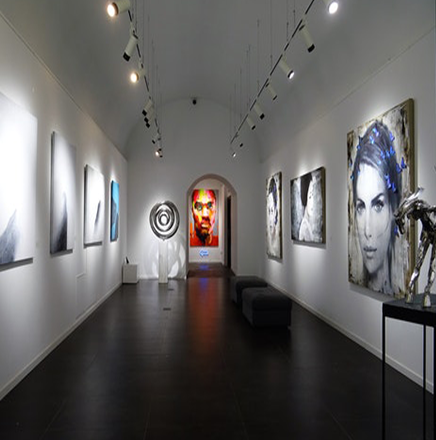

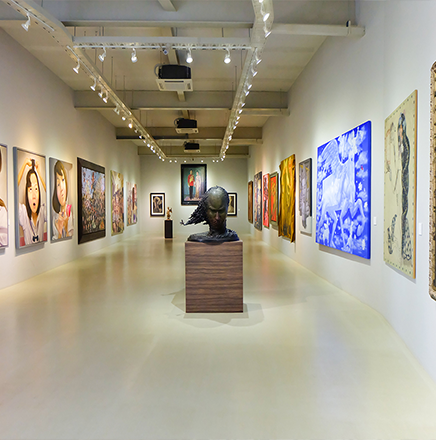

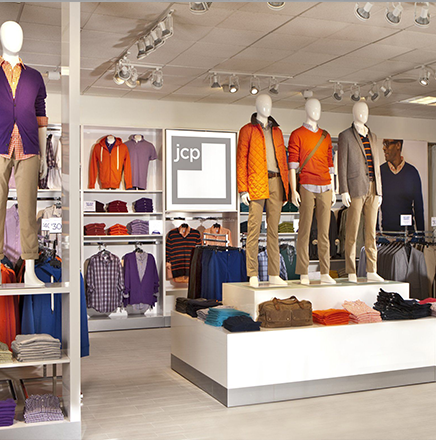

kitchen to the bedroom. It can also be used as accent lighting, such as art galleries, museum, shops, Windows, exhibition halls...

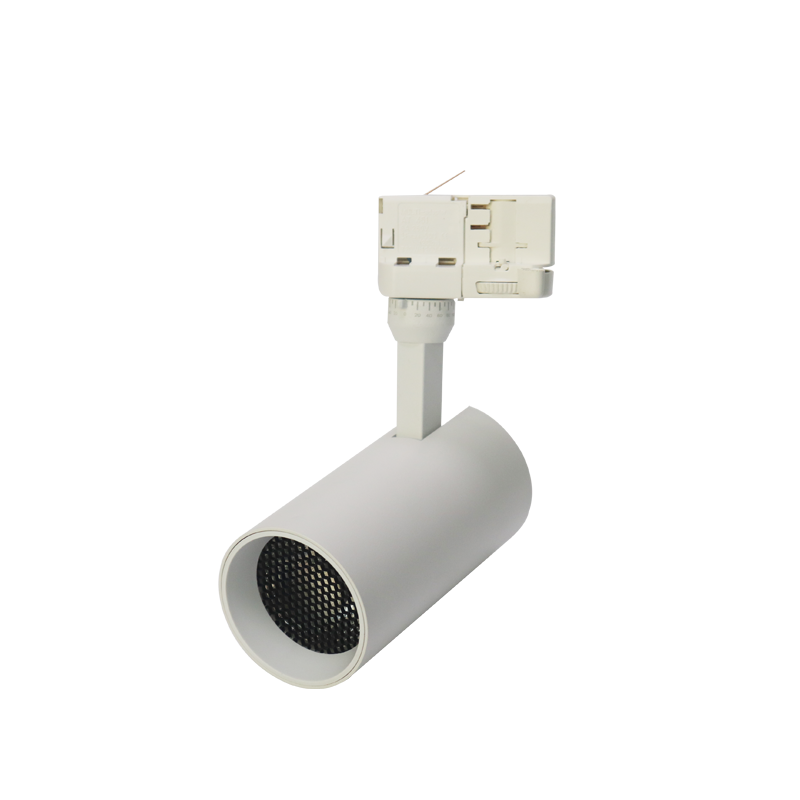

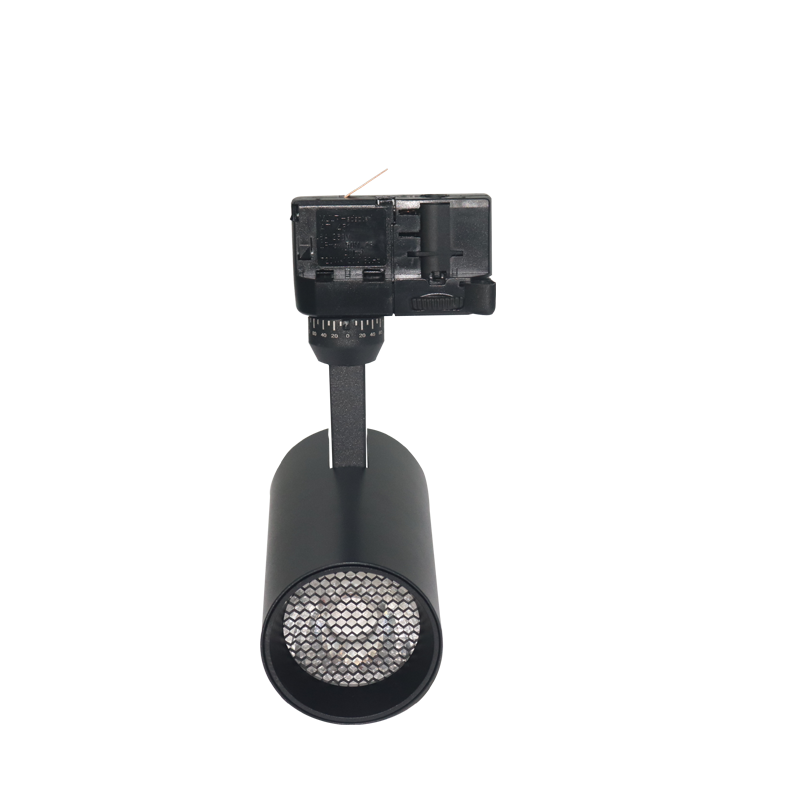

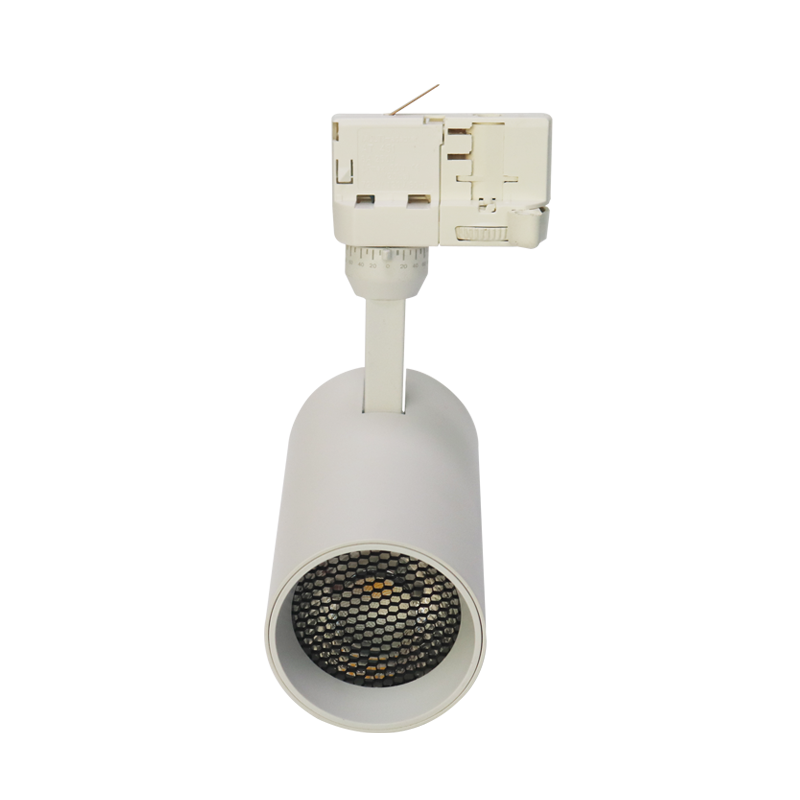

LED track light XG series can be used in both austere, loft-style interiors and very modern arrangements. A honeycomb diffuser included in a set gently softens the light, while maintaining high lumen performance and

 it has an additional, decorative function.


XG series track light has 15°/24°/36° beam angle, 2700K, 3000K, 4000K, 5000K, 4CCT so that a user can choose the power and colour temperature of the light to his individual preferences. Suppling Non-dim, triac dim,

0-10V dim, DALI dim drivers.


The extremely high visual comfort of UGR<19 optics is combined with the presence and lighting possibilities of products with soft colours and minimalist shapes. XG series track spotlight with the junction allows 360°

horizontal and 90° vertical.djustable angle for different object directional lighting.


Advantages


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimension
JST-XG10W>80/902700K-5000K>0.900.25AAC220-240V15°/24°/36°D60*L120mm
JST-XG20W>80/902700K-5000K>0.900.50AAC220-240V15°/24°/36°D70*L130mm
JST-XG30W>80/902700K-5000K>0.900.75AAC220-240V15°/24°/36°D80*L160mm


Application

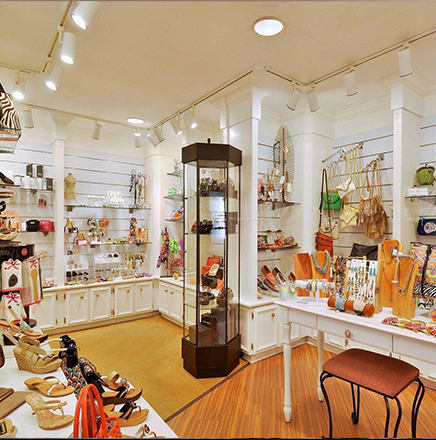

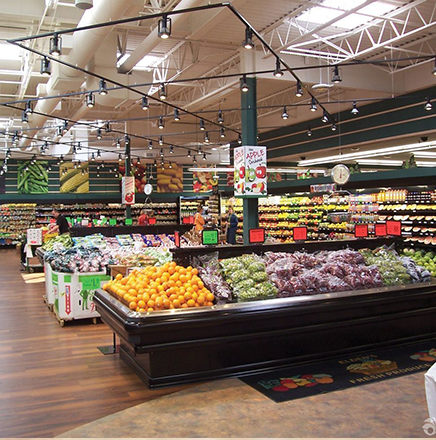

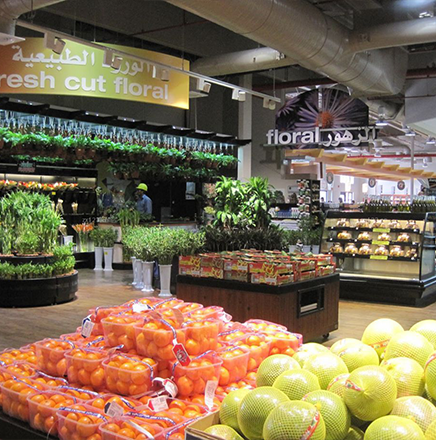

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket lighting etc.

LED Track Light XG Series LED Track Light XG Series LED Track Light XG Series
LED Track Light XG Series LED Track Light XG Series LED Track Light XG Series
