LED Downlight

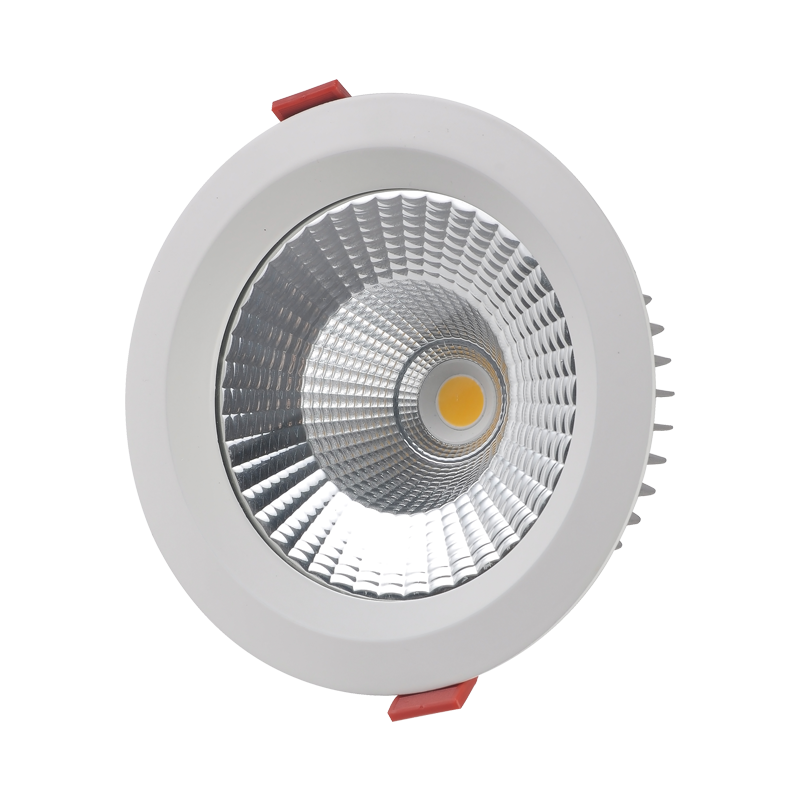

LED Downlight DTU-R Series IP65

Model: JST-DTU

Wattage: 10W-50W

LED Chip: Citizen/Cree/Philips3030

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 45°/90°

Diameter: 110mm-220mm

Cutout: 90mm-200mm


What is a COB downlight? Chip on board LED downlights consist of a single LED chip mounted on the downlight. Since individual LED chip was mounted at one point, the heat it emits is concentrated at this point, so

greater cooling capacity is required and a larger heat sinks must be installed to dissipate the heat.

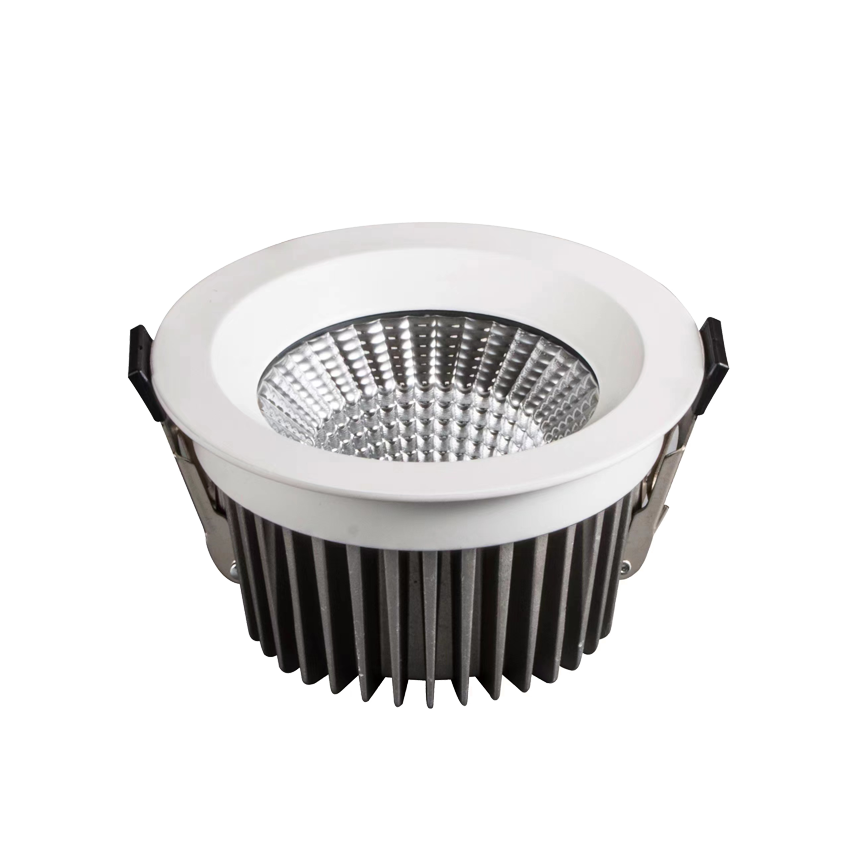

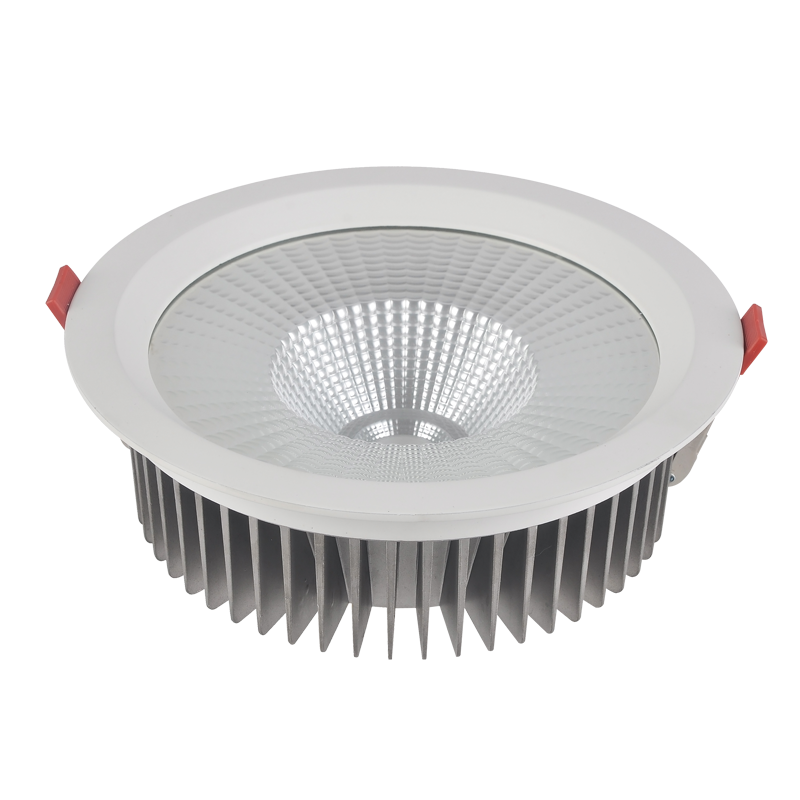

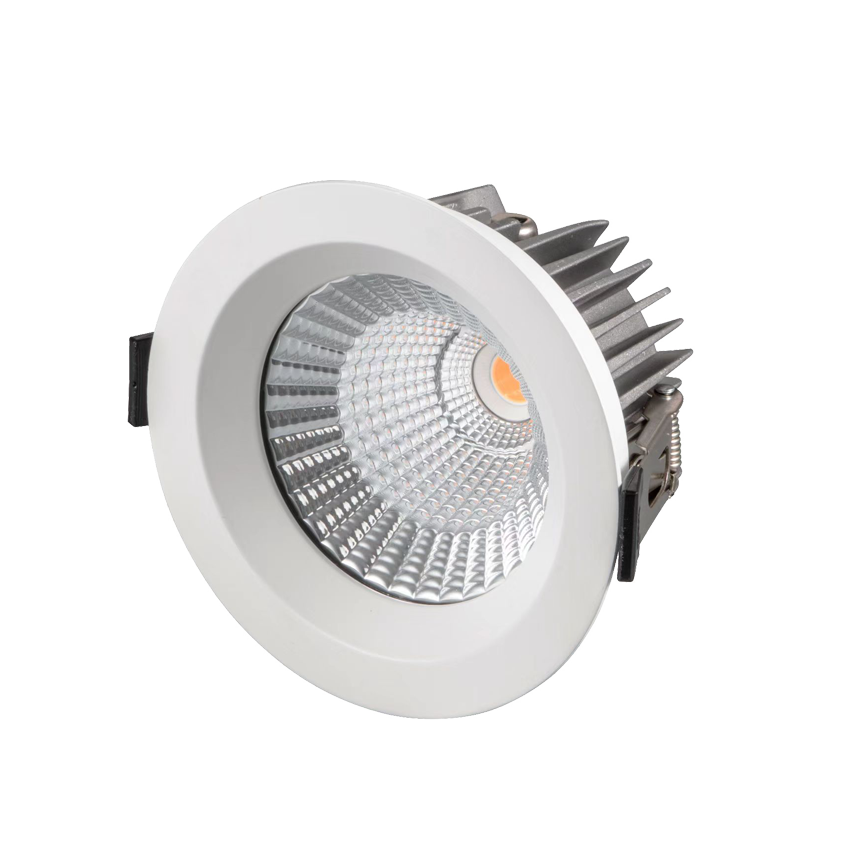

The DTU series is a COB downlight. The radiator is made of finely crafted aluminum, its exquisite craftsmanship outlines a simple and elegant arc. The COB chip provides an excellent light source, achieving focused light,

through the reflectors, the beam can be controlled- 45°/90° . Because the beam is narrower and a transparent diffuser panel , DTUs produce a clearer, cleaner light, allowing more light to penetrate further, meaning they

perform well in rooms with high ceilings.

DTU series are available in square and round 2 shapes, stylish, simple, efficient, environmentally friendly, energy-saving, long-lasting and durable lighting. Compared with traditional halogen lamps, its energy

consumption can be reduced by about 85%, saving up to 30 % of energy consumption. 50,000 hours life span.

The DTU series downlight is also a downlight specially designed for wet areas, as it has an IP rating of 65 and can be used in damp place, bathrooms, showers and even outdoors. What is IP65? For  the IP stands for

Ingress Protection. The 6 is the level of protection from dirtparticles larger than 1mm. And the 5 is the level of protection from water splases.


ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout

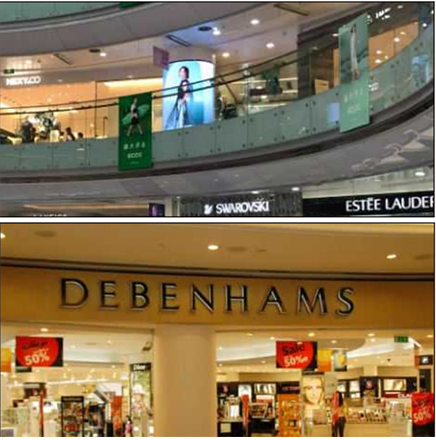

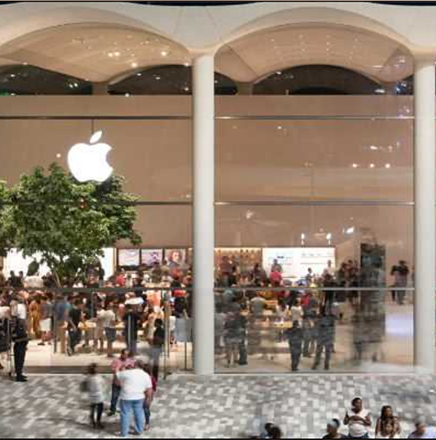

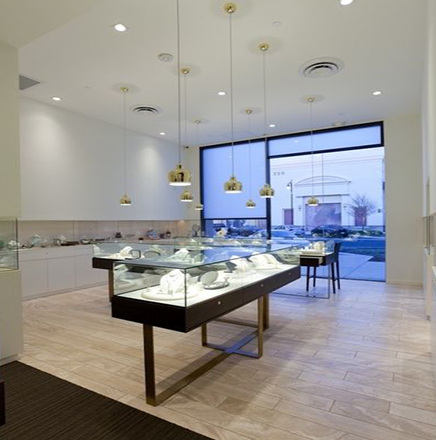

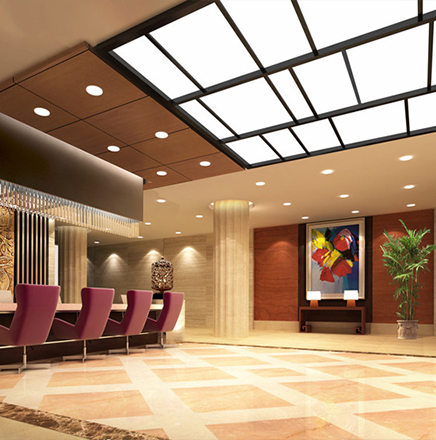

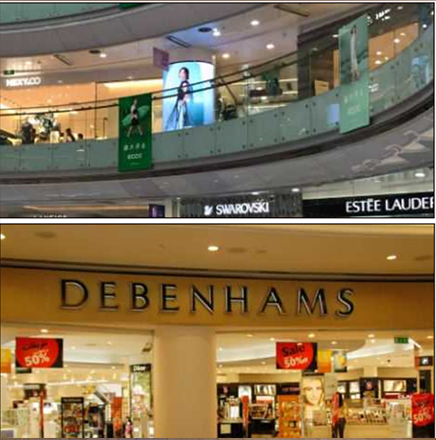

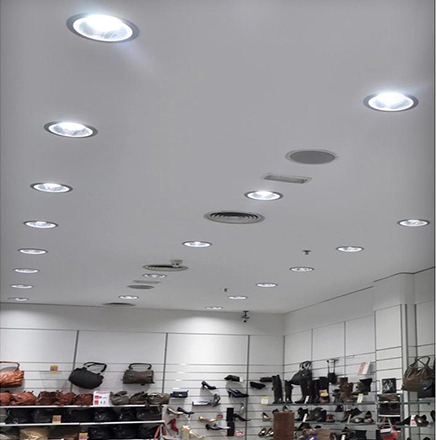

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket lightingetc.

LED Downlight DTU-R Series IP65 LED Downlight DTU-R Series IP65 LED Downlight DTU-R Series IP65
LED Downlight DTU-R Series IP65 LED Downlight DTU-R Series IP65 LED Downlight DTU-R Series IP65
