LED Grille Downlight

LED Grille Downlight RH series

Model: JST-RH

Wattage: 25W-35W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/36°

Size:  See below spec form

Cutout: See below spec form


Description

What Are Downlights?

Whether it's for your home, office, or any other facility, an LED downlight can provide a spot and focus illumination and is super energy- efficient since it produces less heat than other lighting solutions.It's perfect when

you’re reading or whenever you need concentrated lighting. Well-determine the space in which you will place your LED downlight, know the specific size you need, then match them with our products.


Energy Consumption

These Grille reflector LED downlights consume less power compared with conventional commercial lighting products. At the same time offering high light output, 50,000 + hours life, with excellent light stability and

colour render, allowing the light to change from a point light source to a surface light source in an effective space, increasing the light-emitting area, preventing glare, and preventing visual fatigue.


Series design

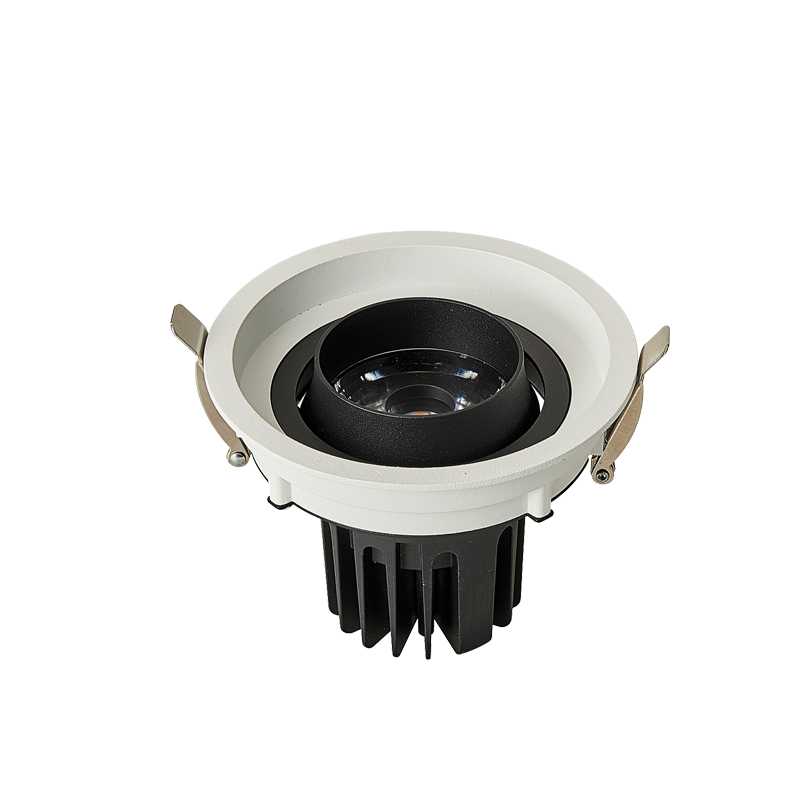

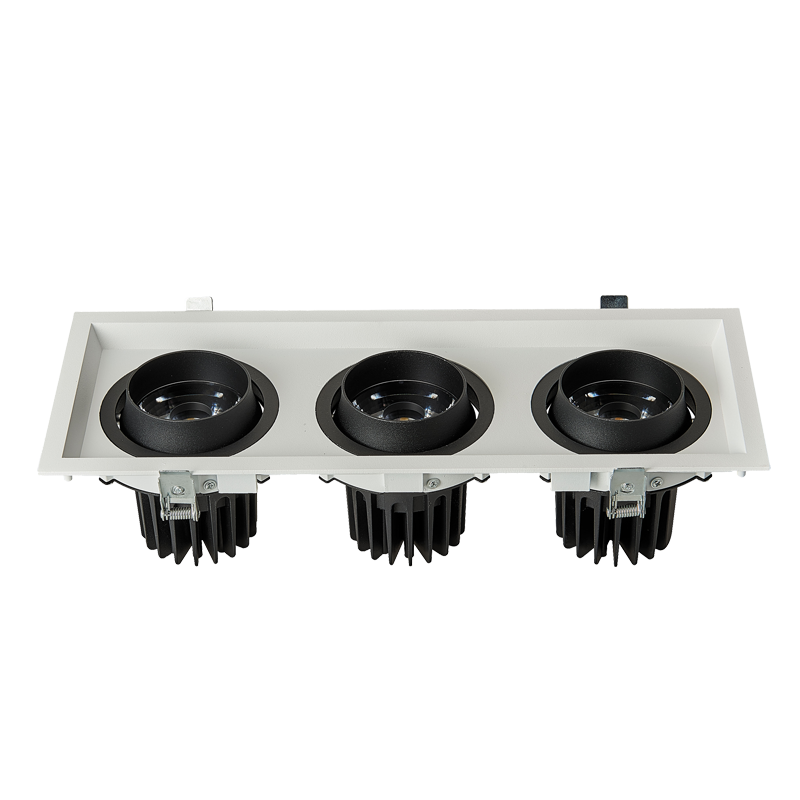

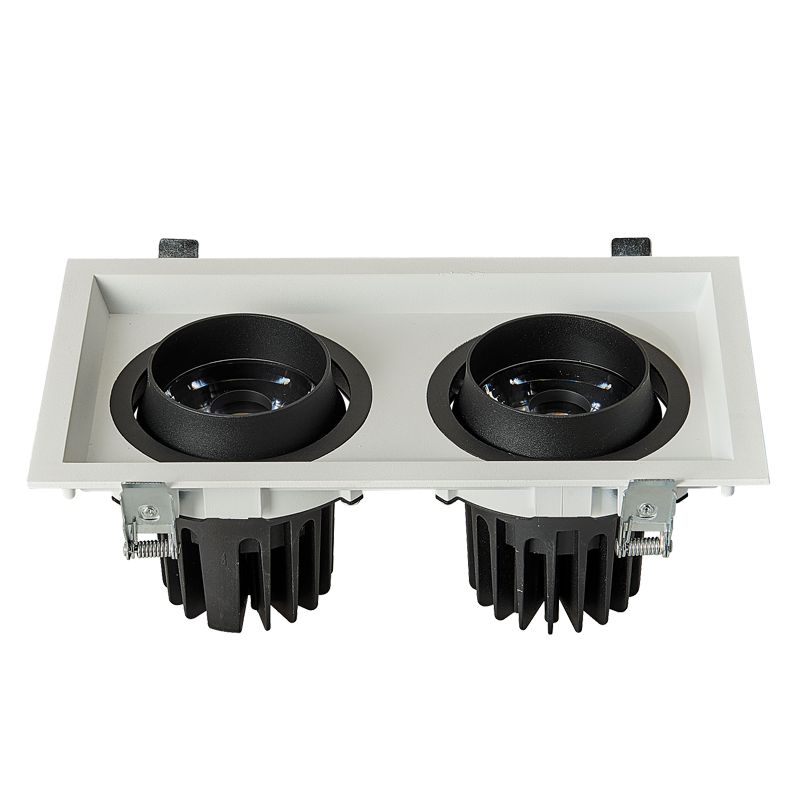

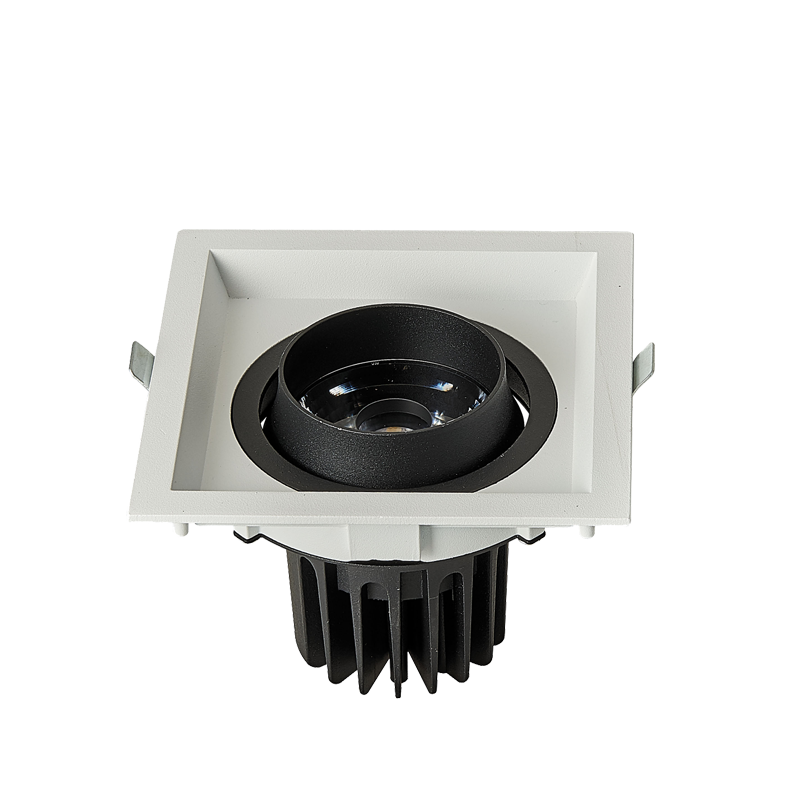

Grille downlight RH series with multiple spotlights have three power options of 10W, 20W and 30W, optional styles as single head, double heads, and triple heads, round, square optional, which can be combined

according to the lighting design requirements. Beam angle 15°/24°/36°makes it possible to efficiently highlight object details. It’s a sought-after lighting solution for both accent and general lighting in commercial

lighting such as retail stores, shops, supermarkets, offices, meeting roomss, they were a directional beam of light is required in multiple directions.


Materials

Luminaire body built in die- cast aluminium with high- grade frosted lens + high efficiency reflector, light transmittance> 90%, face ring with finish in White/ Blac


Advantages
  1. High Alu housing, better heat dissipation

  2. Adjustable body design

  3. Paint baking surface,never fade,and anti-scratch

  4. Triac,0/1-10V,DALI dimmable options are available

  5. Ease of installation and maintenance

  6. 50,000 hrs life span


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-RH-R/S7W>80/902700K-5000K>0.900.17AAC220-240V15°/24°/36°D86*H85mm / L90*W90*H85mm75mm
JST-RH-R/S7W*2>80/902700K-5000K>0.900.35AAC220-240V15°/24°/36°L158*W90*H85mm145*75mm
JST-RH-R/S7W*3>80/902700K-5000K>0.900.50AAC220-240V15°/24°/36°L227*W90*H85mm215*75mm
JST-RH-R/S10W>80/902700K-5000K>0.900.25AAC220-240V15°/24°/36°D105*H95mm / L112*W112*H85mm95mm /100*100mm
JST-RH10W*2>80/902700K-5000K>0.900.25A*2AC220-240V15°/24°/36°L210*W112*H85mm195*100mm
JST-RH10W*3>80/902700K-5000K>0.900.25A*3AC220-240V15°/24°/36°L282*W112*H85mm265*100mm
JST-RH-R/S20W>80/902700K-5000K>0.900.60AAC220-240V15°/24°/36°D135*H100mm / L137*W137*H100mm125mm/125*125nn
JST-RH20W*2>80/902700K-5000K>0.900.60A*2AC220-240V15°/24°/36°L250*W137*H100mm235*125mm
JST-RH20W*3>80/902700K-5000K>0.900.60A*3AC220-240V15°/24°/36°L362*W137*H100mm345*125mm
JST-RH-R/S30W>80/902700K-5000K>0.900.75AAC220-240V15°/24°/36°D155*H110mm / L175*W175*H110mm160*160mm
JST-RH30W*2>80/902700K-5000K>0.900.75A*2AC220-240V15°/24°/36°L325*W175*H110mm310*160mm
JST-RH30W*3>80/902700K-5000K>0.900.75A*3AC220-240V15°/24°/36°L470*W175*H110mm455*160mm

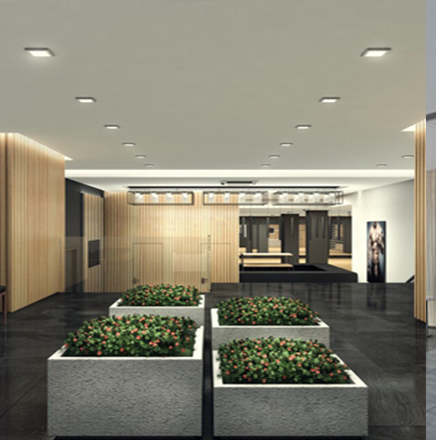

Application

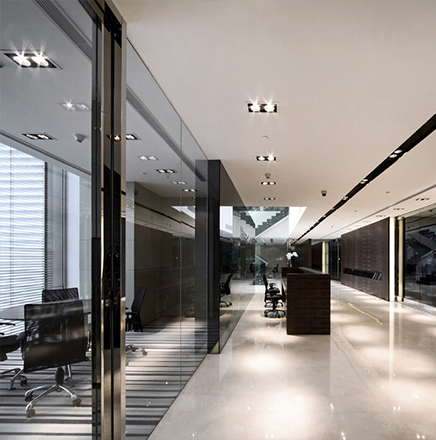

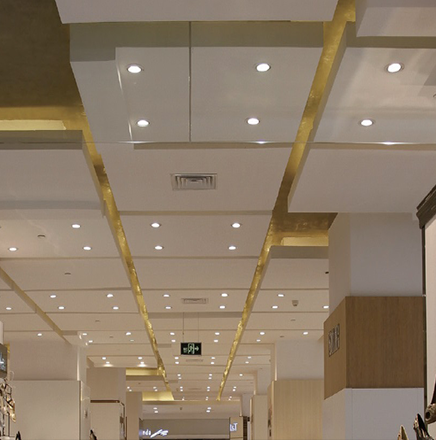

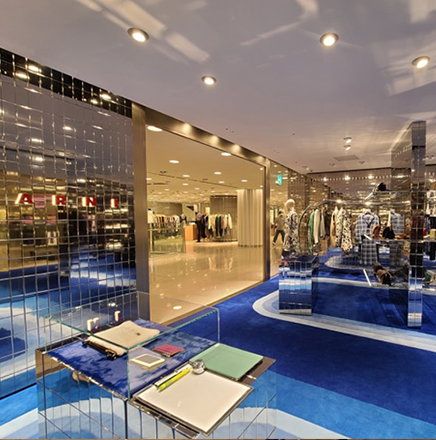

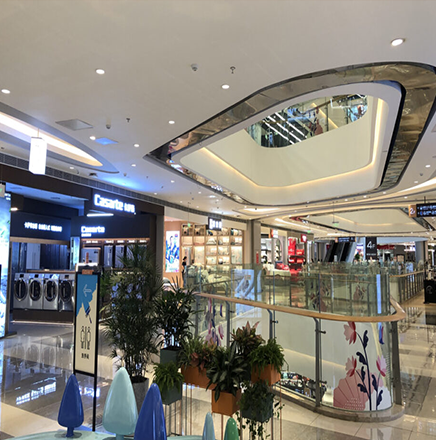

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.

LED Grille Downlight RH series LED Grille Downlight RH series LED Grille Downlight RH series
LED Grille Downlight RH series LED Grille Downlight RH series LED Grille Downlight RH series
