LED Grille Downlight

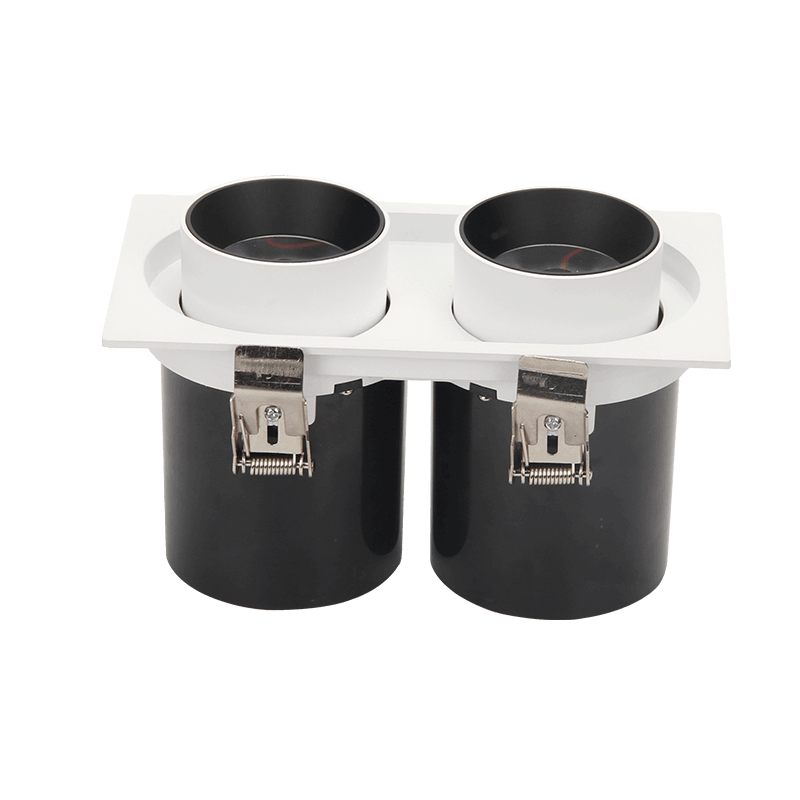

LED Grille Downlight RC Series Two Head

Model: JST-RC-Two-Head

Wattage: 14W-70W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/36°/60°

Size: 131*72mm/ 185*100mm/ 240*130mm /295*160mm

Cutout: 120*65mm / 175*90mm/ 230*120mm /280*140mm

Description

What Are Downlights?

Whether it's for your home, office, or any other facility, an LED downlight can provide a spot and focus illumination and is super energy-efficient since it produces less heat than other lighting solutions.It's perfect

when you’re reading or whenever you need concentrated lighting. Well-determine the space in which you will place your LED downlight, know the specific size you need, then match them with our products.


SMD & COB

SMD Surface mount diode- This downlight is ideal if you want a wide spread of light suitable for larger areas and great for delivering a higher level of lumens/ light with a lower wattage.

COB Chip on Board- Provide a better light source by utilising reflectors that produce more crisp focused light.A cob only has one LED chip,as opposed to an SMD which has a LED chip array.


Materials

Luminaire body built in die- cast aluminium with high- grade frosted lens + high efficiency reflector, light transmittance> 90%, face ring with finish in White/ Black.


Ddvantage

  1. Series design, deep anti-glare design, effectively reduce glare

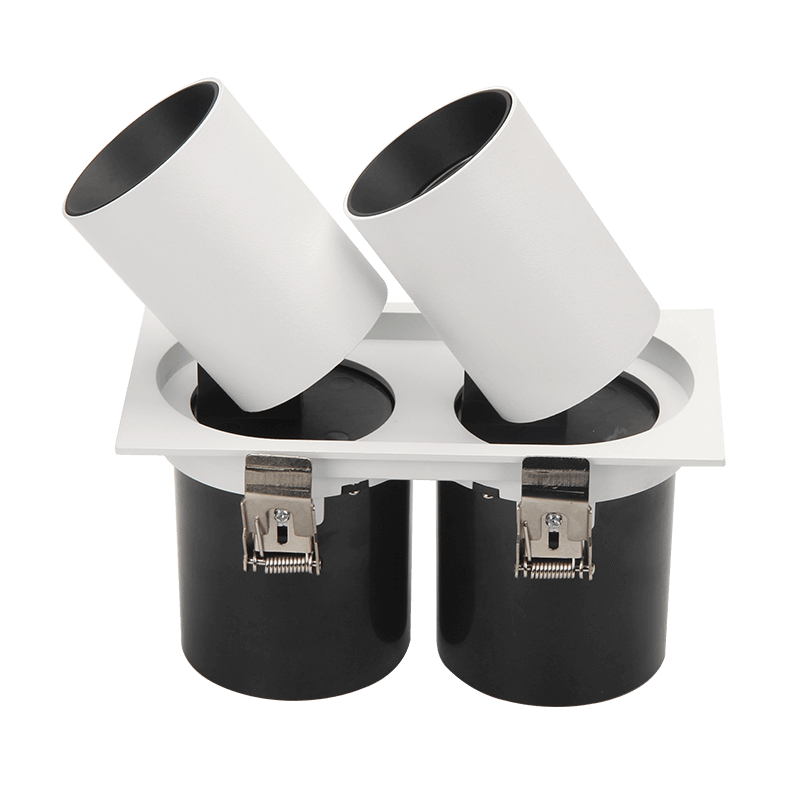

  2. The module rotates 360° horizontally and 60° vertically to meet different illumination angles

  3. Narrow frame design, perfect combination of luminaire and installation smallpox, enhance the beauty of space

  4. The light body can be freely stretched downward upward to meet the high demand of different layers Further versions on request


Advantages

1. Patent design with multi-funcations, Hiding light body and Rotable 360°

2. Optic lens stay in deep of the housing to perfermance unti-glare UGR<19

3. High Lighting perfermance to save 60%-80% energy

4. Improved prdocution visibility through High color rendering CRI>90

5. Best same color perfermance at same CCT because the COB SDCM<3

6. Long life time CITIZEN COB to meet 5 years warranty

7. Different installation ways for option: Recessed and Surfacemounted

8. Different Control system: Triac dimming, 1-10V dimming, Dali dimming, App dimming

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-RC7W*2>80/902700K-5000K>0.900.16A*2AC220-240V15°/24°/36°/60°L131*W72*H110mm120*65mm
JST-RC15W*2>80/902700K-5000K>0.900.35A*2AC220-240V15°/24°/36°/60°L185*W100*H120mm175*90mm
JST-RC25W*2>80/902700K-5000K>0.900.60A*2AC220-240V15°/24°/36°/60°L240*W130*H135mm230*120mm
JST-RC35W*2>80/902700K-5000K>0.900.60A*2AC220-240V15°/24°/36°/60°L295*W160*H155mm280*140mm

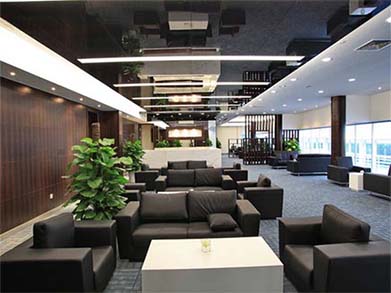

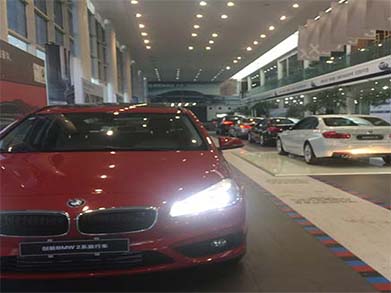

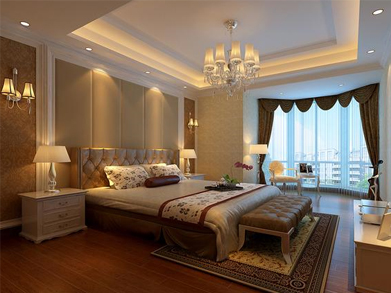

Application

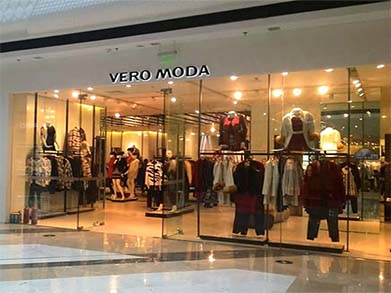

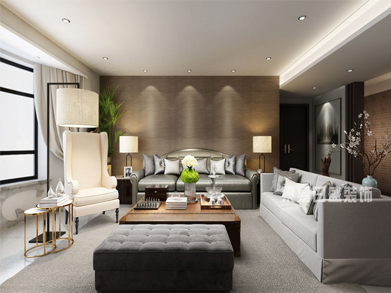

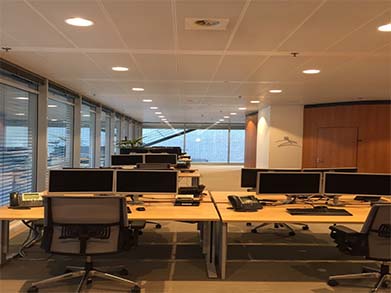

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.

LED Grille Downlight RC Series Two Head LED Grille Downlight RC Series Two Head LED Grille Downlight RC Series Two Head
LED Grille Downlight RC Series Two Head LED Grille Downlight RC Series Two Head LED Grille Downlight RC Series Two Head
