LED Hotel Downlight

LED Hotel Downlight HTN Series

Model: JST-HTN-A(Fixed+Honycomb)/ B(Abjustable)

Wattage: 5W-15W

LED Chip: CREE/CITIZEN

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 12°/24°/36°

A-Diameter: 60mm-80mm

A-Cutout: 55mm-75mm

B-Diameter: 65mm-110mm

B-Cutout: 55mm-95mm


Description

Hotel downlight HTN series use CITIZEN/ CREE LED chips which is high lumen output,low depreciation,pure colors. Die-casting aluminum with tempered glass, less heat dissipation, effectively extend the lifespan.

And they use high quality drive Meanwell/ Philips/ Lifud/ Osram, high-end chip intelligent control electrical appliances, energy-saving, environmental protection, stable output.


No UV, IR, mercury and other harmful materials for Hotel downlight HTN series, Eco-friendly and the light No flickering & FR interference.

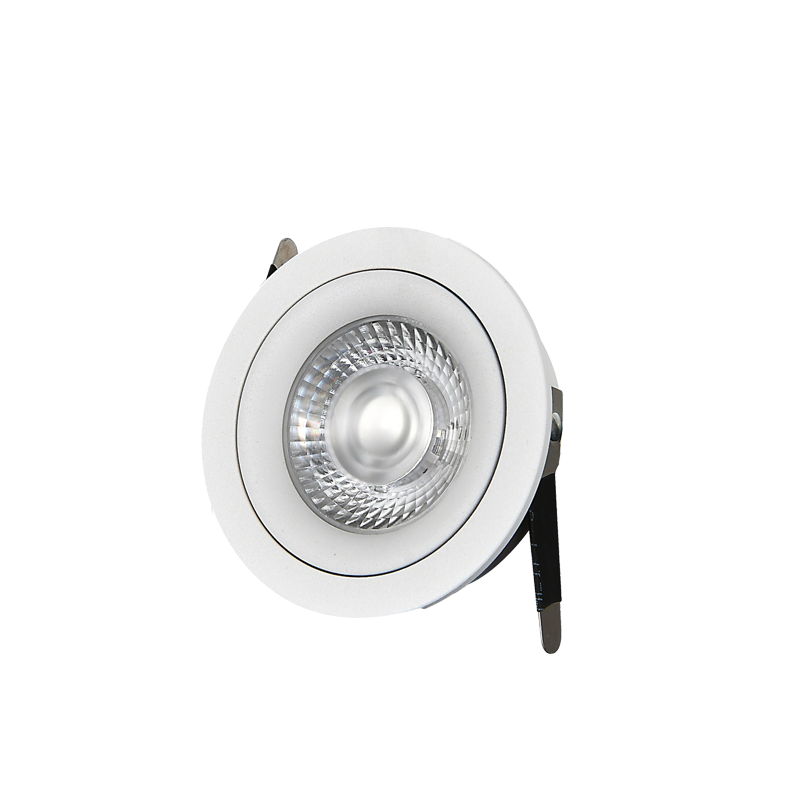

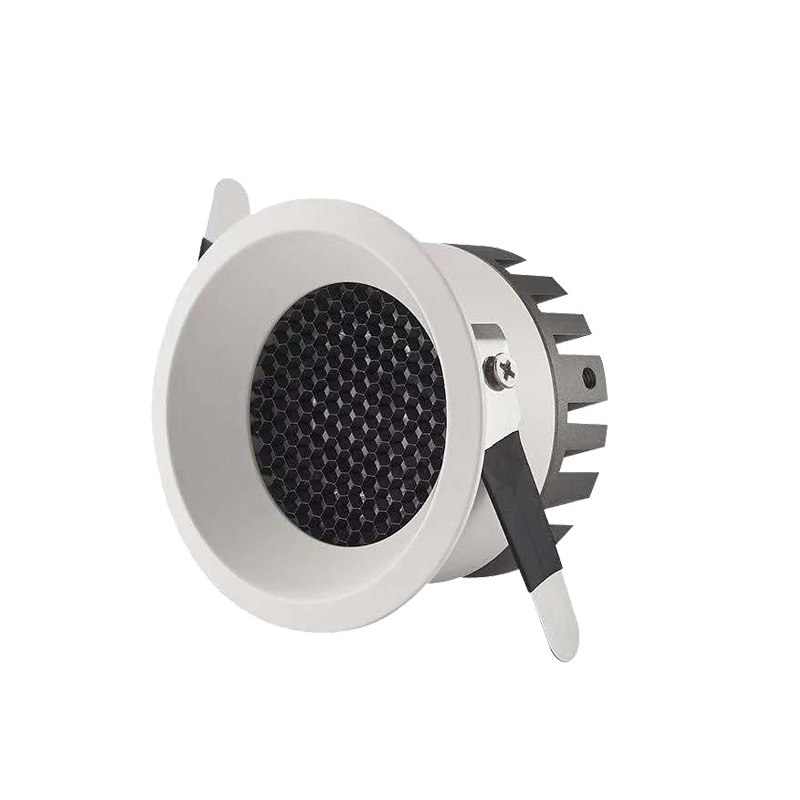

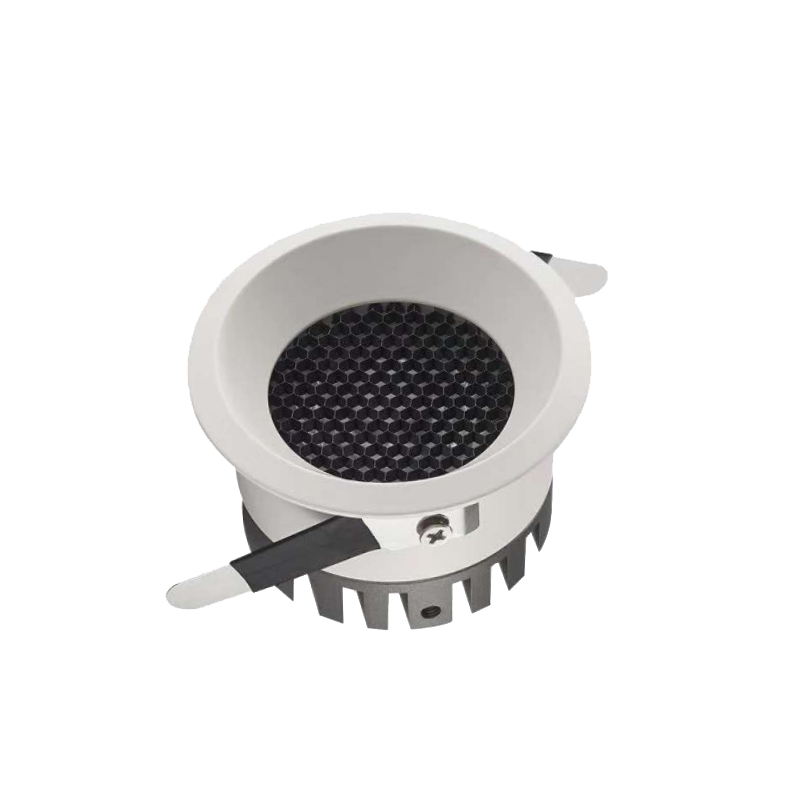

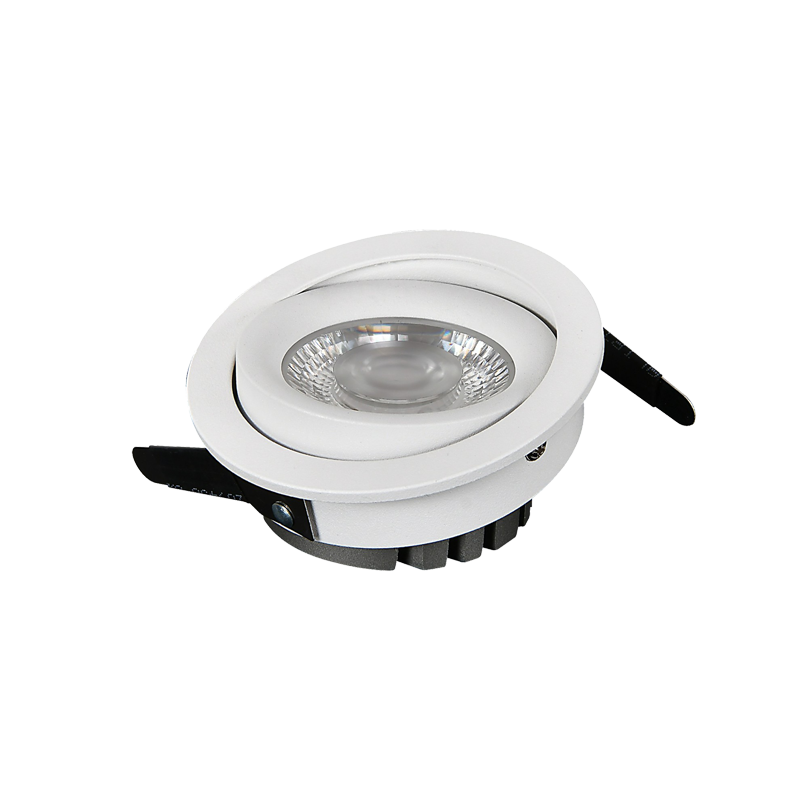

HTN-A series with honeycomb, the light is soft, not dazzling, and creates a comfortable sense of space. HTN-B series is adjust beam angle, meet  the needs of different angles.

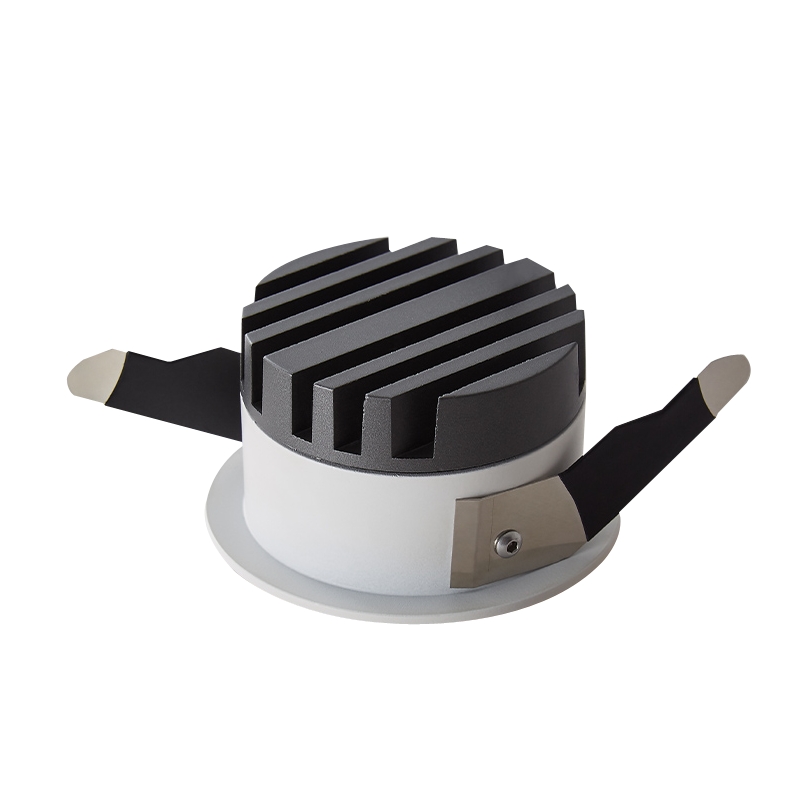

HTN-A series  is available with blade springs. The version with blade springs can be mounted in a concrete ceiling or a full ceiling. The ultra-thin design does not require much space on the ceiling


Advantages
  1. Fixed or adjustable optional

  2. Fixed option with honeycomb more anti-glare

  3. Narrow beam angle12degree

  4. Low energy consumption

  5. Ultra-thin design

  6. Wide Application


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-HTN-A5W>80/902700K-5000K>0.900.13AAC220-240V12°/24°/36°D60*H37mm55mm
JST-HTN-A7W>80/902700K-5000K>0.900.16AAC220-240V12°/24°/36°D70*H45mm65mm
JST-HTN-A10W>80/902700K-5000K>0.900.25AAC220-240V12°/24°/36°D80*H45mm75mm
JST-HTN-B5W>80/902700K-5000K>0.900.13AAC220-240V12°/24°/36°D65*H30mm55mm
JST-HTN-B10W>80/902700K-5000K>0.900.25AAC220-240V12°/24°/36°D85*H35mm75mm
JST-HTN-B15W>80/902700K-5000K>0.900.35AAC220-240V12°/24°/36°D110*H42mm95mm


Application

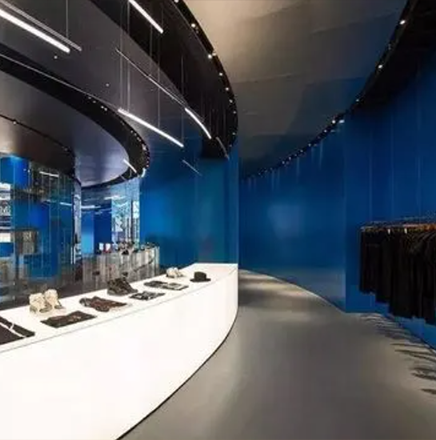

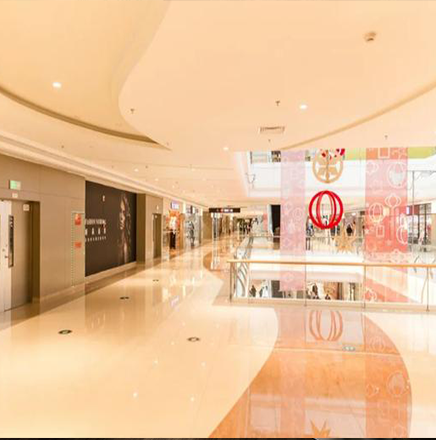

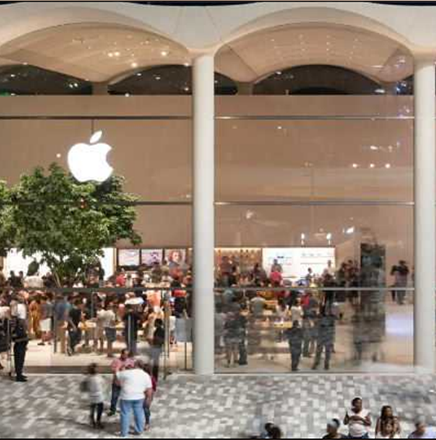

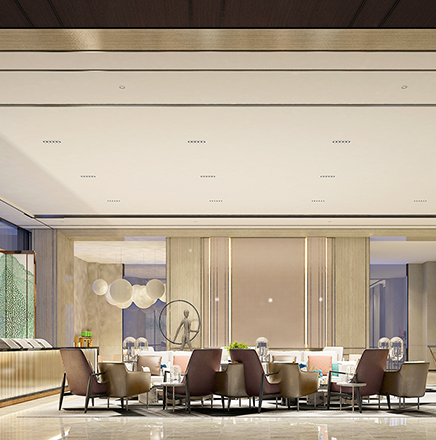

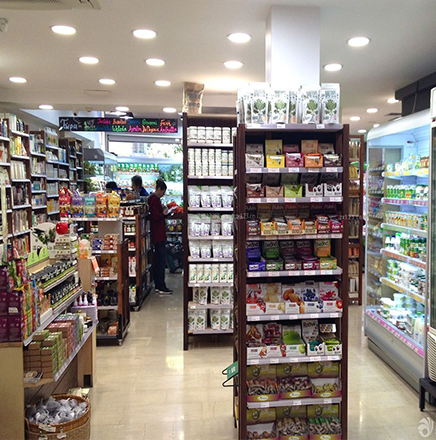

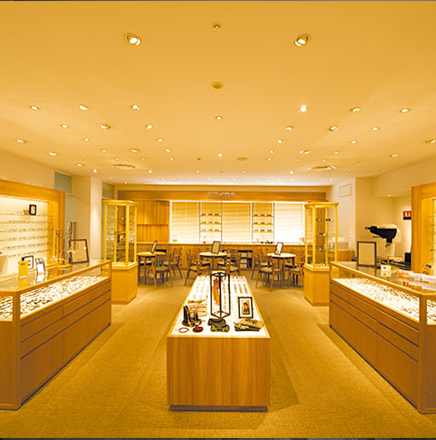

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.

LED Hotel Downlight HTN Series LED Hotel Downlight HTN Series LED Hotel Downlight HTN Series
LED Hotel Downlight HTN Series LED Hotel Downlight HTN Series LED Hotel Downlight HTN Series
