LED Hotel Downlight

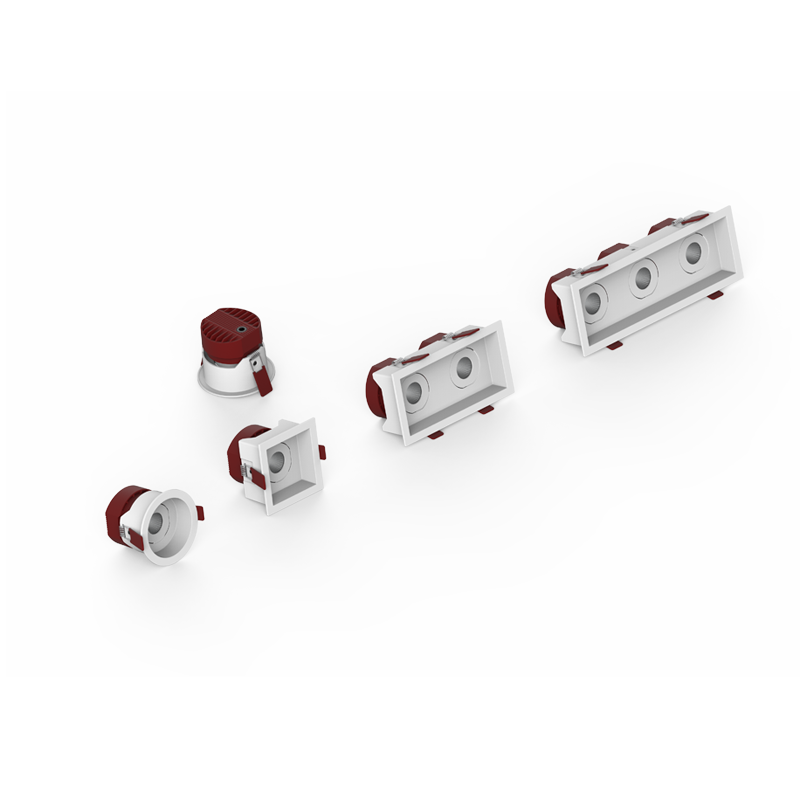

LED Spot Light STR Series

Model: JST-STR

Wattage: 6W-54W

LED Chip: Citizen/Cree

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/38°

Diameter: 72-312mm

Cutout: 60-300mm


Description

What factors affect the life of LED lights?


1. chip

In the course of LED manufacturing, the life of LED will be affected by the pollution of other impurities and the imperfection of crystal lattice. So Jarstar use famous brands of chips such as Citizen/Cree, because they

have a strict quality control system in the production process to ensure that every product is perfect.

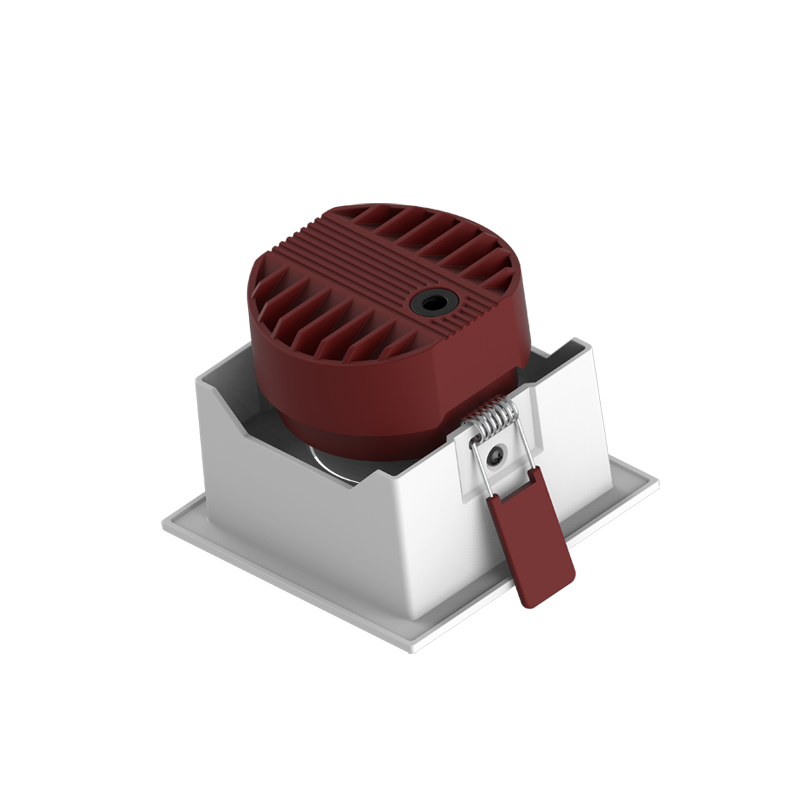

Jarstar use die-casing aluminium housing, which is the radiator was made of aluminium, blade design, effectively increase heat dissipation area, the heat faster than other radiators made of plastic on the market, Effectively extend the service life.


3. Driver

Whether the power supply of the lamp is reasonable. LED is a current driving device, if the power current fluctuation is large, or the frequency of the power tip pulse is high, it will affect the life of the LED light source.

Therefore, we use a constant current driver, the lamp in the control of the LED input current, stable output. So, a constant current driver can effectively affect the life of the lamp.


Advantages


Specification


Model

PowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout

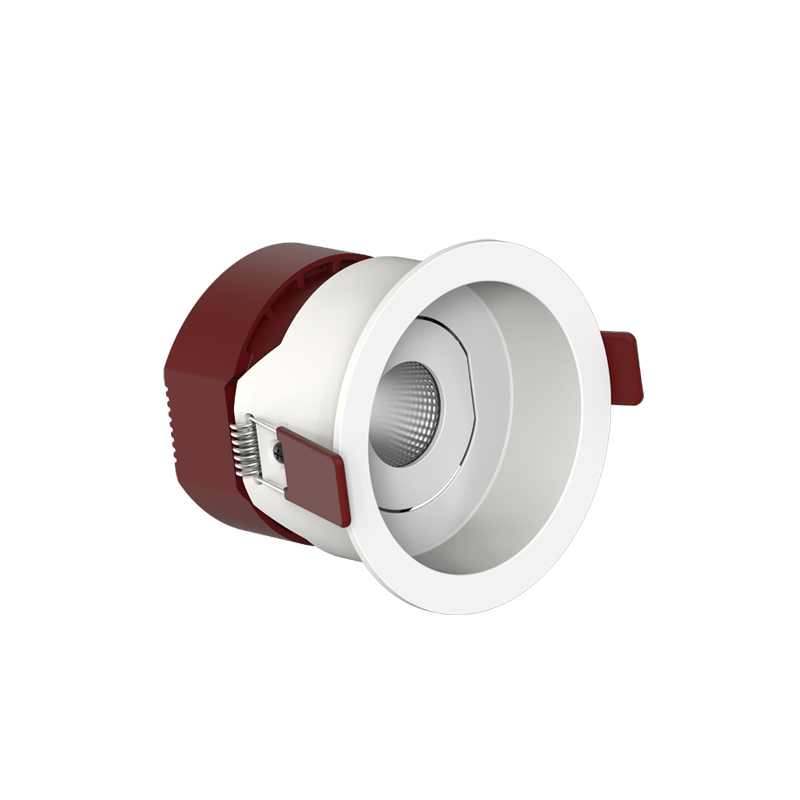

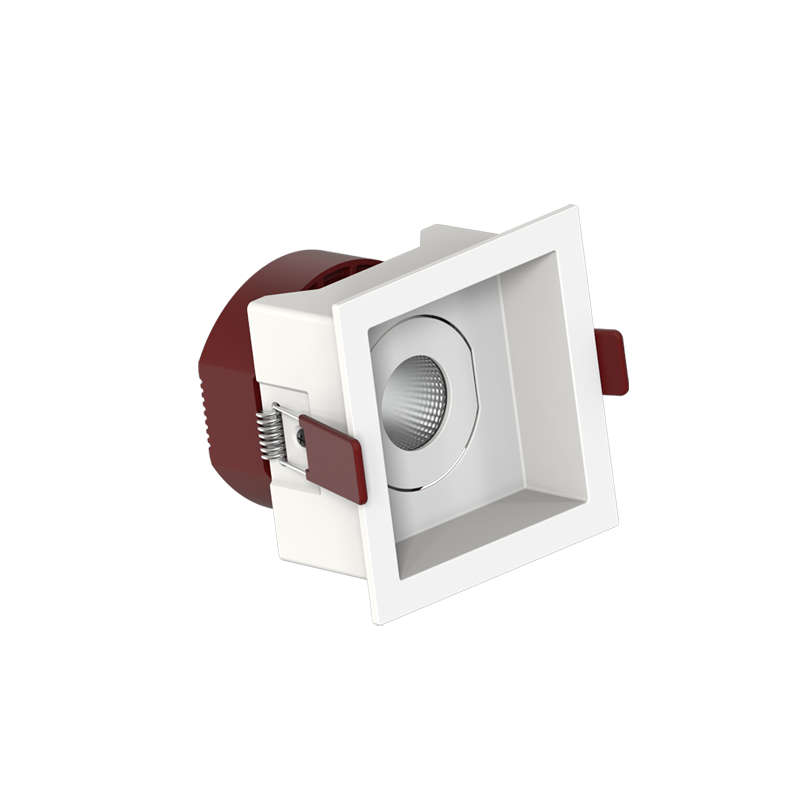

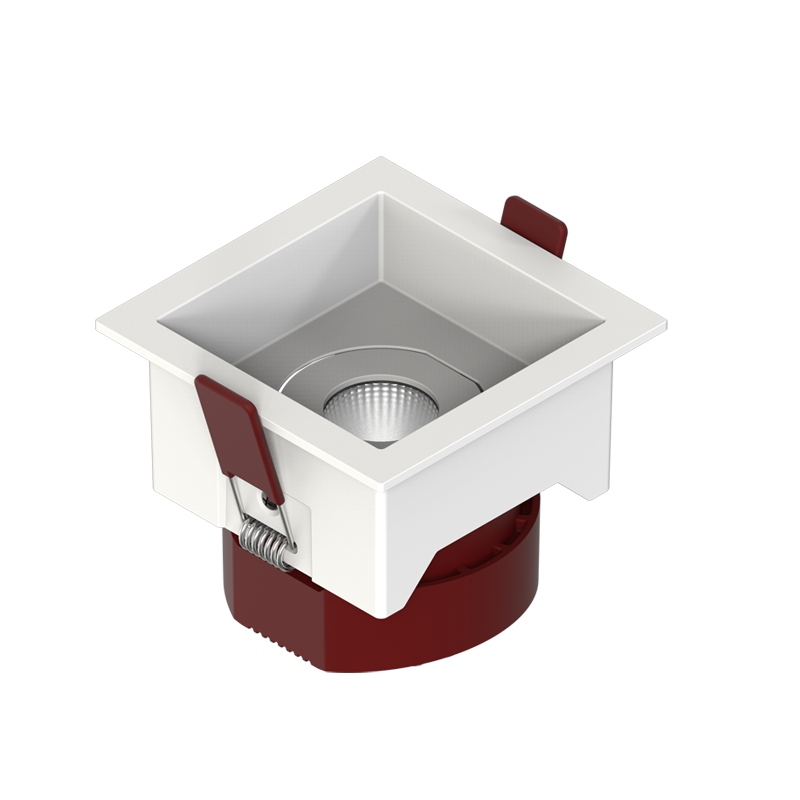

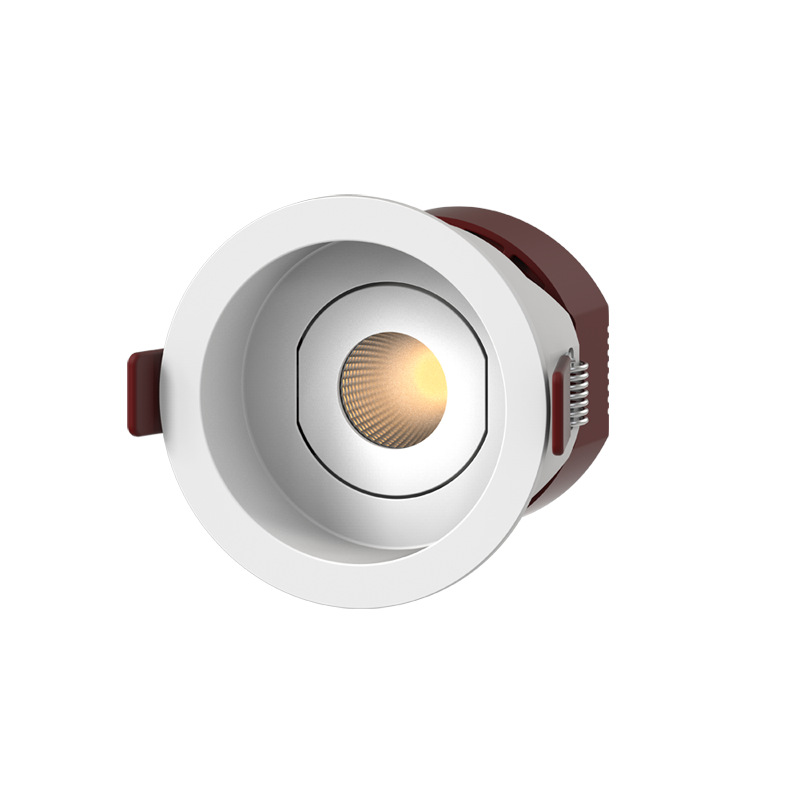

JST-STR-R/S6W>80/902700K-5000K>0.900.13AAC220-240V15°/24°/38°D72*H62mm60mm
JST-STR-R/S12W>80/902700K-5000K>0.900.30AAC220-240V15°/24°/38°D88*H71mm75mm
JST-STR-R/S18W>80/902700K-5000K>0.900.50AAC220-240V15°/24°/38°D102*H86mm90mm

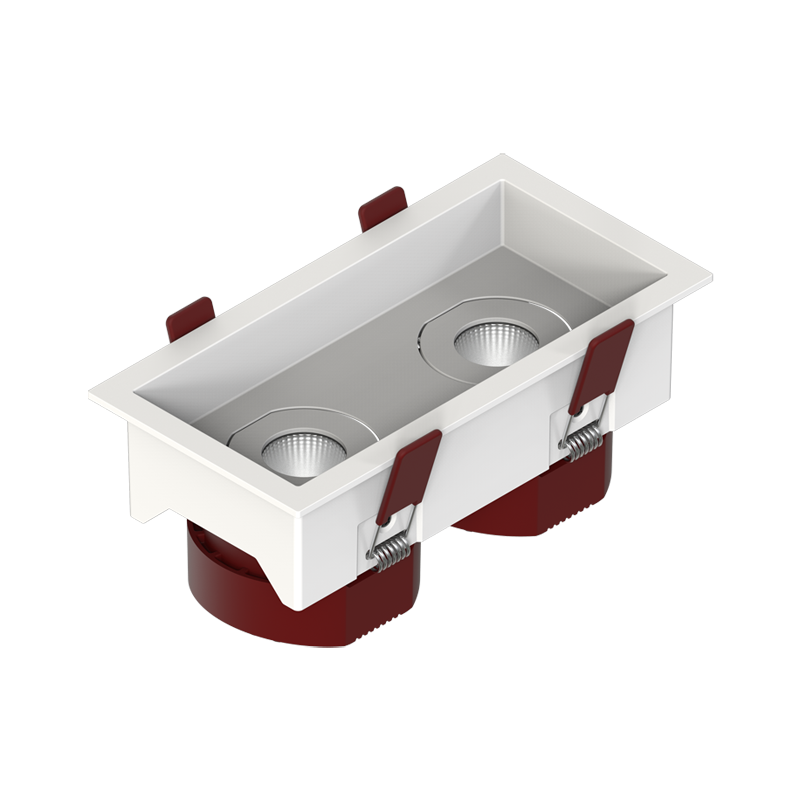

JST-STR6W*2>80/902700K-5000K>0.900.30AAC220-240V15°/24°/38°142*72mm130*60mm

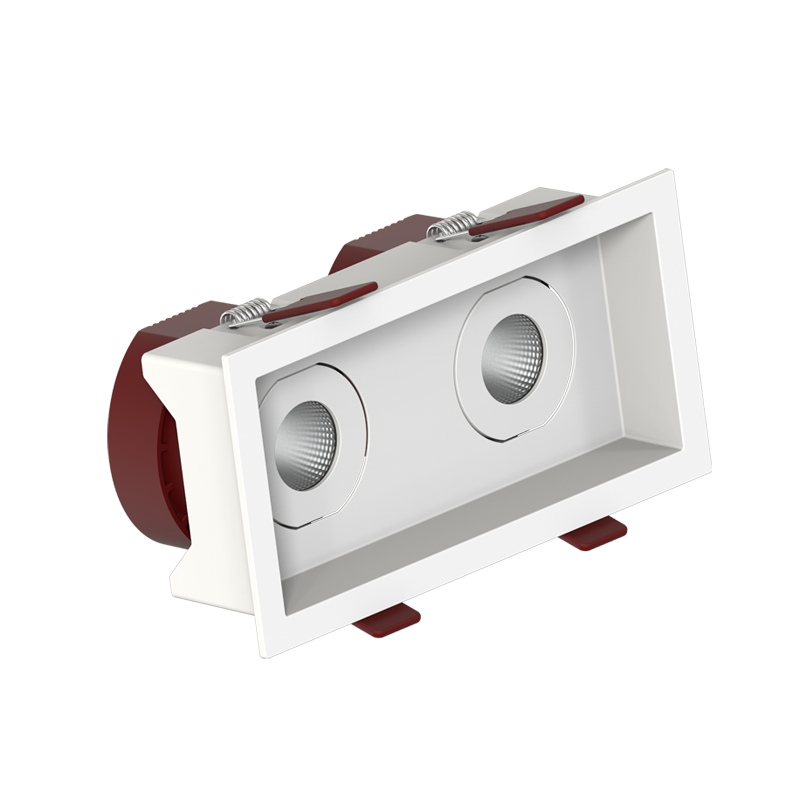

JST-STR12W*2>80/902700K-5000K>0.900.60AAC220-240V15°/24°/38°173*88mm160*75mm
JST-STR-18W*2>80/902700K-5000K>0.900.85AAC220-240V15°/24°/38°210*102mm195*90mm
JST-STR6W*3>80/902700K-5000K>0.900.50AAC220-240V15°/24°/38°212*72mm200*60mm
JST-STR12W*3>80/902700K-5000K>0.900.85AAC220-240V15°/24°/38°253*88mm240*75mm
JST-STR18W*3>80/902700K-5000K>0.901.30AAC220-240V15°/24°/38°312*102mm300*90mm

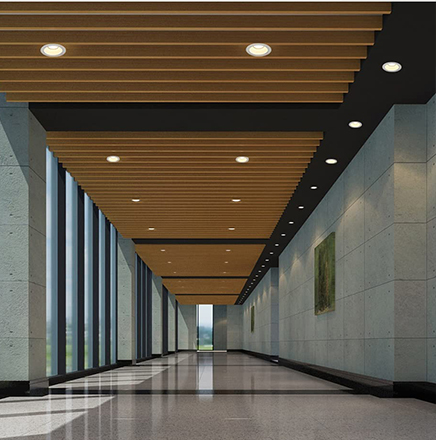

Application

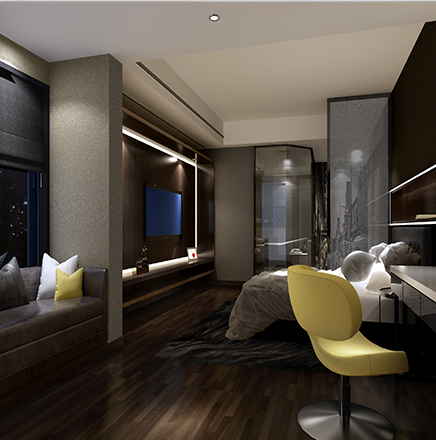

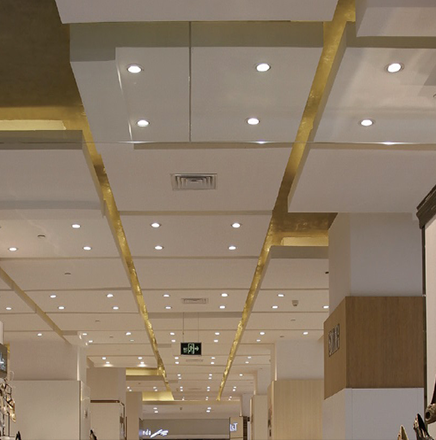

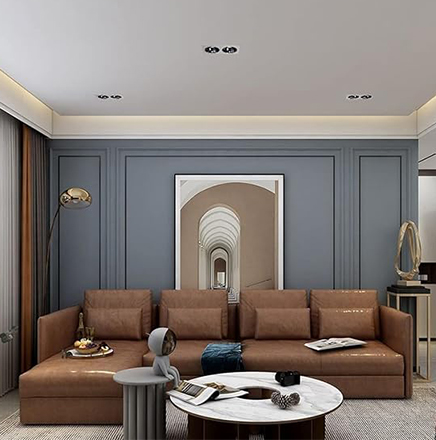

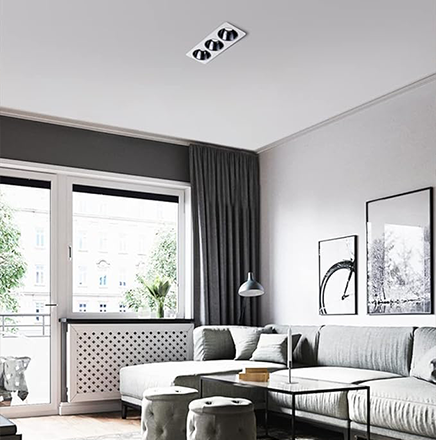

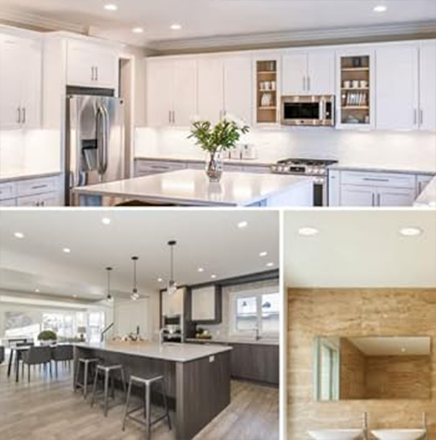

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting, Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.

LED Spot Light STR Series LED Spot Light STR Series LED Spot Light STR Series
LED Spot Light STR Series LED Spot Light STR Series LED Spot Light STR Series
