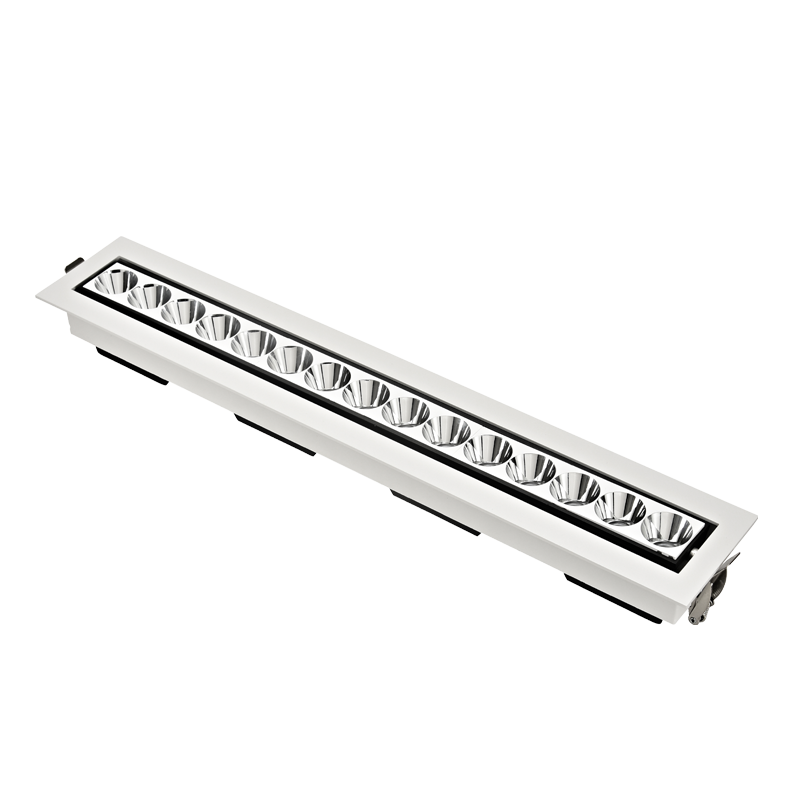

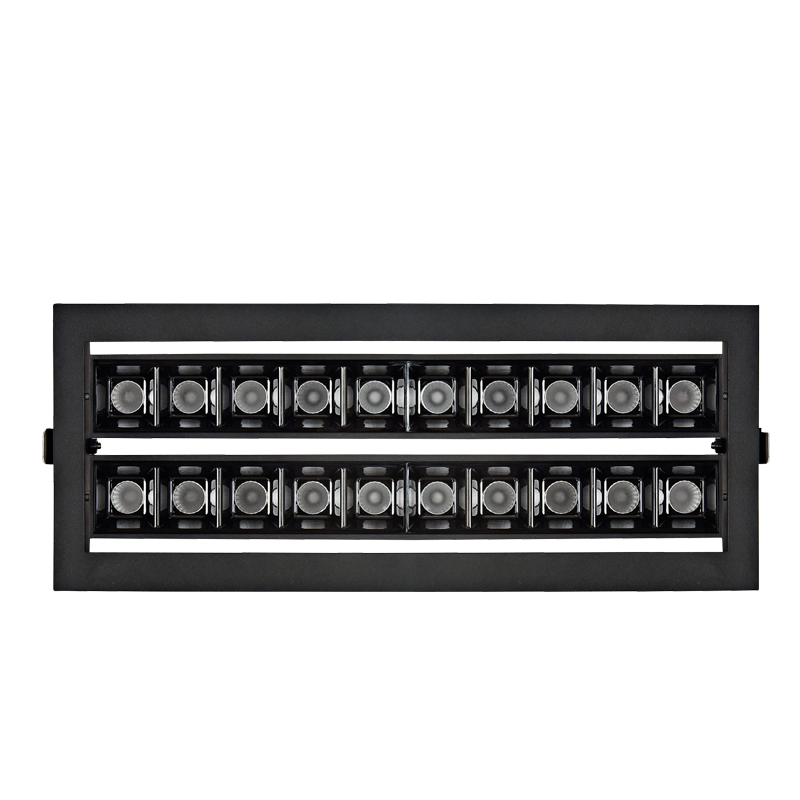

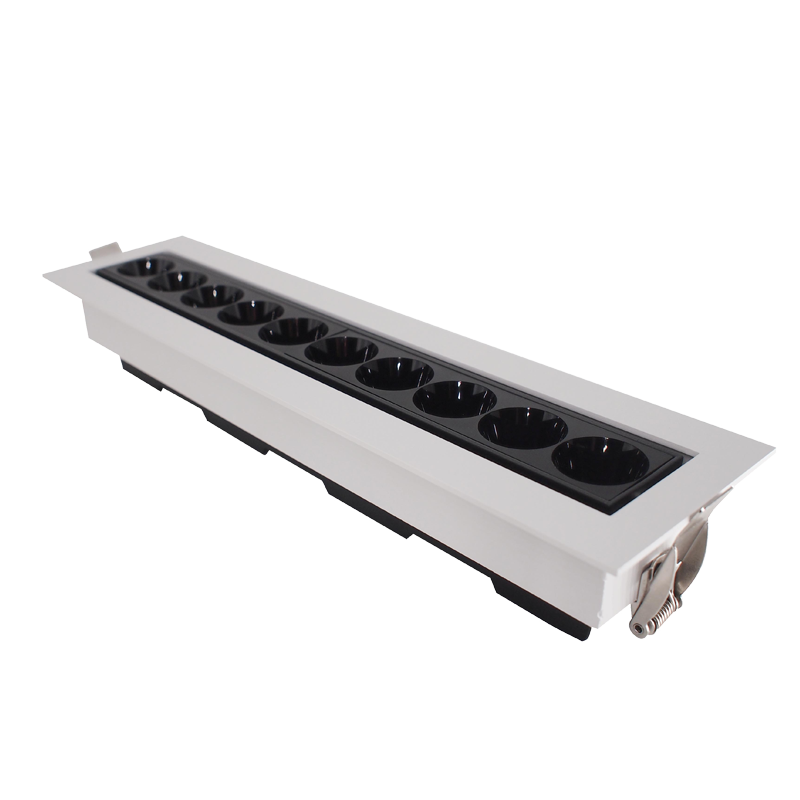

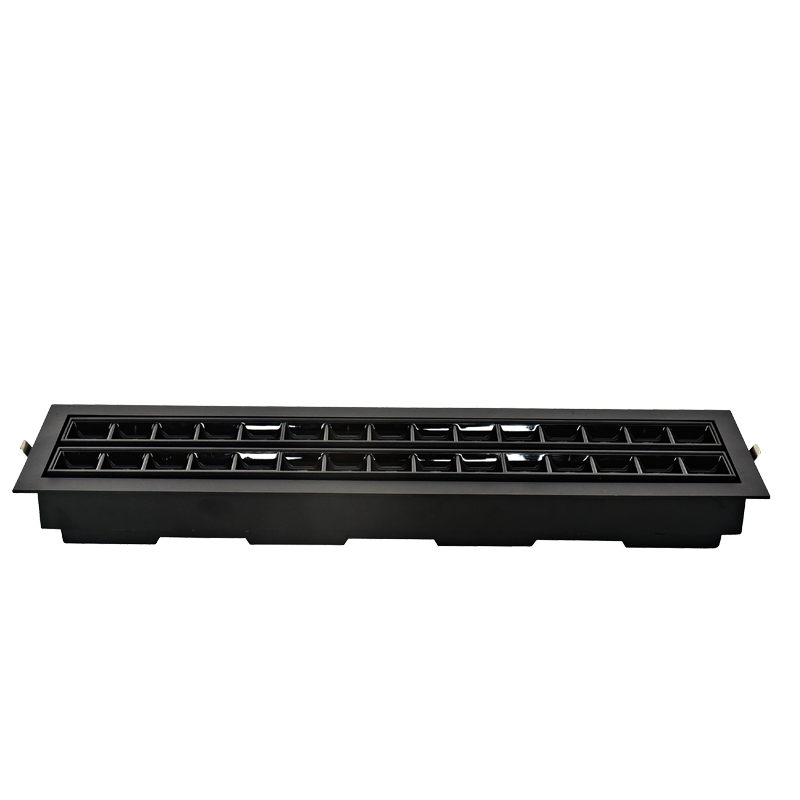

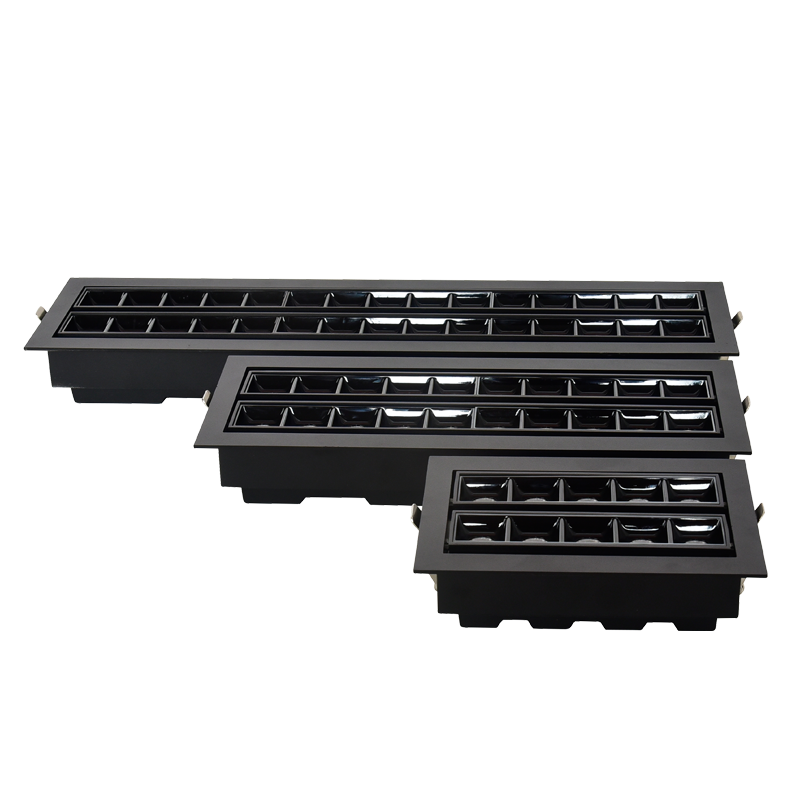

LED Linear Downlight LGC Series

Model: JST-LGC

Wattage: 6W-60W

LED Chip: CREE/CITIZEN/Philips

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/30°/45°

Size: See below spec.

Cutout: See below spec.


Description

Linear downlight LGC series with bold and subtle at the same time, the LGC is a powerful   single and double row downlight. The minimalist design of the LGC makes it a perfect lighting solution achieving a clean look

in contemporary architecture.


Linear downlight LGC series adopt CREE/CITIZEN COB chip. The high quality of the manufacturing of these chips has caused the light output to be 100m/w land with CRI>80, SDCM< 3, which helps the color integrity

of the output light. Using multiple reflector to diffuse the light, the LGC offers a high visual comfort improving the well-being in the workplace.


Easy to installation, no tooling, spring clip attend to the ceiling which offering a high visual comfort, a cool design, the LGC is a welcoming change to traditional Recessed Downlights. ,  It has all qualities for setting

new standards in recessed lighting.  The contemporary and unique design of this  linear downlight can turn into the design element of your commercial scheme.


Advantages
  1. Multiple size and power, Mltiple beam angles

  2. Optical lens or arcylic transparent solutions, high luminous efficiency, with good anti-glare effect

  3. Aluminum alloy material, which is corrosion resistan

  4. Recessed installation., easy installation, no tooling

  5. High quality profile, simple & exquisite design

  6. Lifespan up to 50000hour


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-LGC6W>80/902700K-5000K>0.900.15AAC220-240V

15°/24°/36°

L105*W60mmL98*W50mm
JST-LGC10W>80/902700K-5000K>0.900.25AAC220-240V

15°/24°/36°

L158*W62mmL150*W50mm
JST-LGC12W>80/902700K-5000K>0.900.30AAC220-240V

15°/24°/36°

L186*W60mmL180*W50mm
JST-LGC-A20W>80/902700K-5000K>0.900.50AAC220-240V

15°/24°/36°

L291*W60mmL280*W50mm
JST-LGC-B20W>80/902700K-5000K>0.900.50AAC220-240V

15°/24°/36°

L168*W122mmL155*W100mm
JST-LGC30W>80/902700K-5000K>0.900.75AAC220-240V

15°/24°/36°

L426*W62mmL420*W50mm
JST-LGC40W>80/902700K-5000K>0.901.00AAC220-240V

15°/24°/36°

L301*W122mmL185*W100mm
JST-LGC60W>80/902700K-5000K>0.901.50AAC220-240V

15°/24°/36°

L434*W122mmL420*W100mm

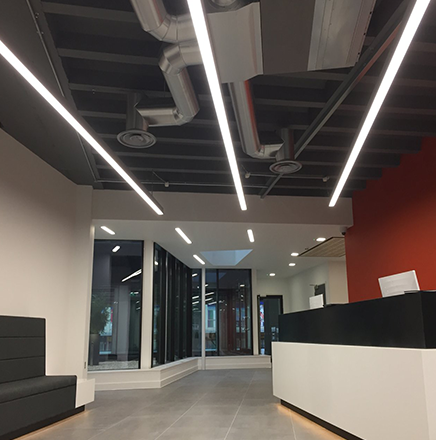

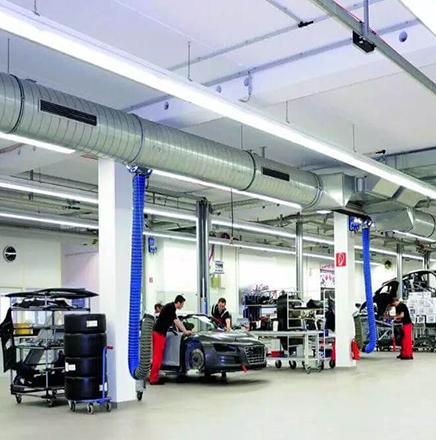

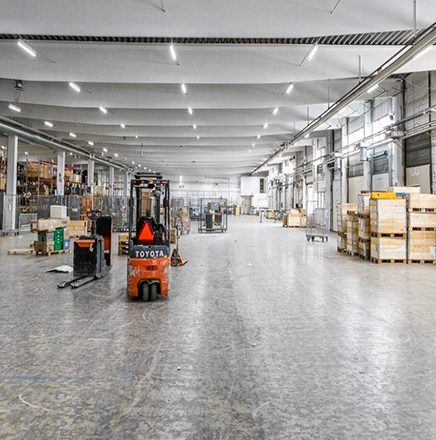

Application

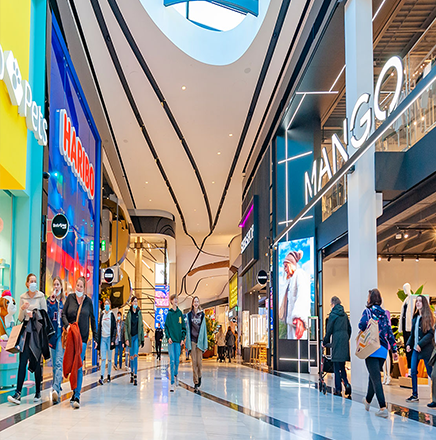

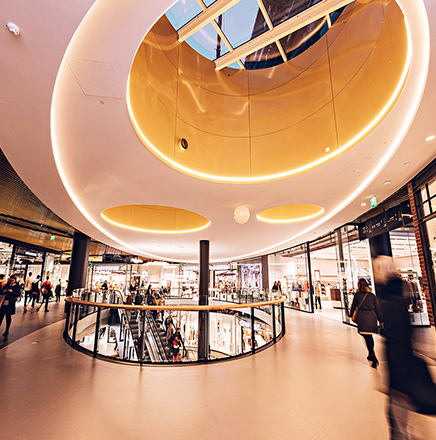

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.

LED Linear Downlight LGC Series LED Linear Downlight LGC Series LED Linear Downlight LGC Series
LED Linear Downlight LGC Series LED Linear Downlight LGC Series LED Linear Downlight LGC Series
