LED Linear Light

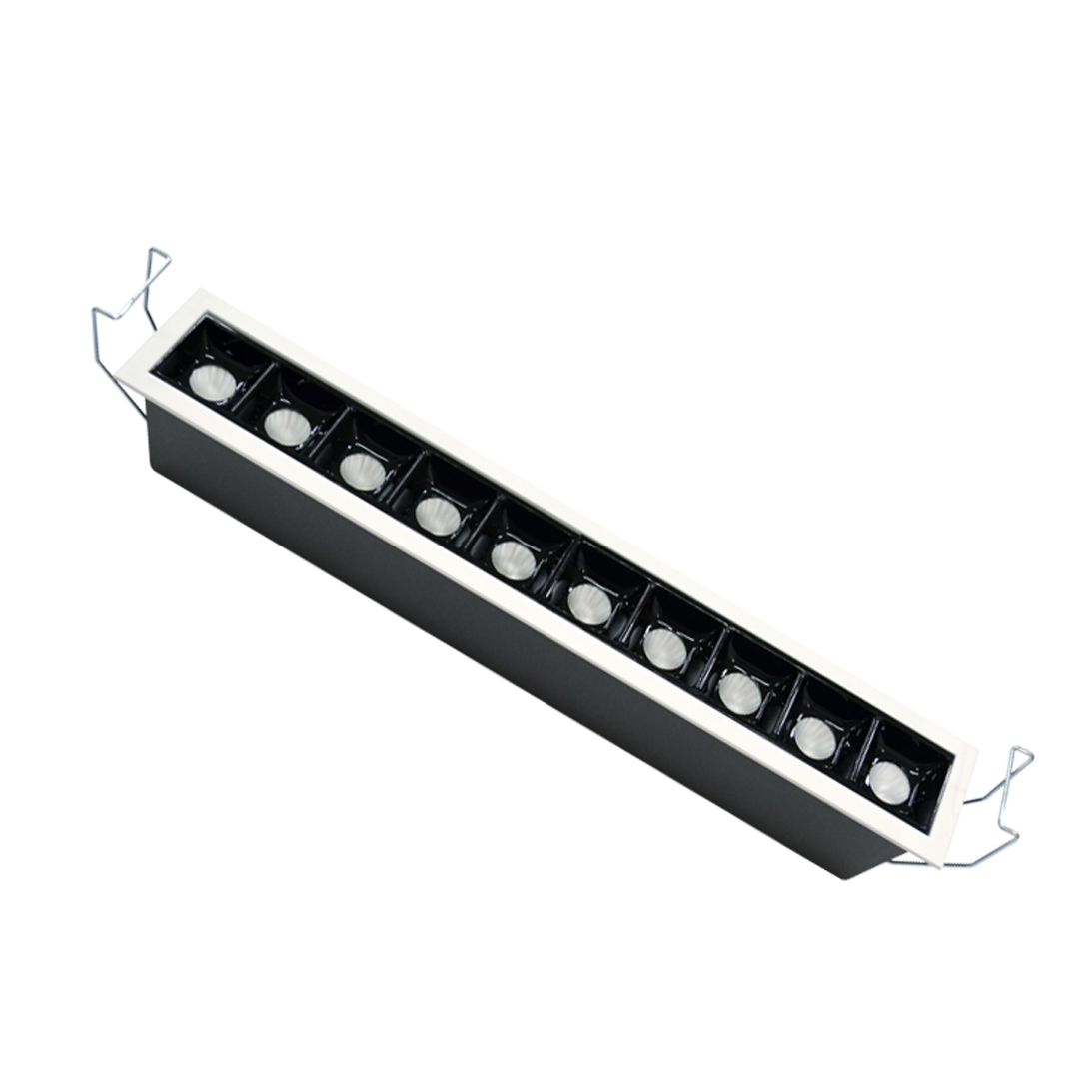

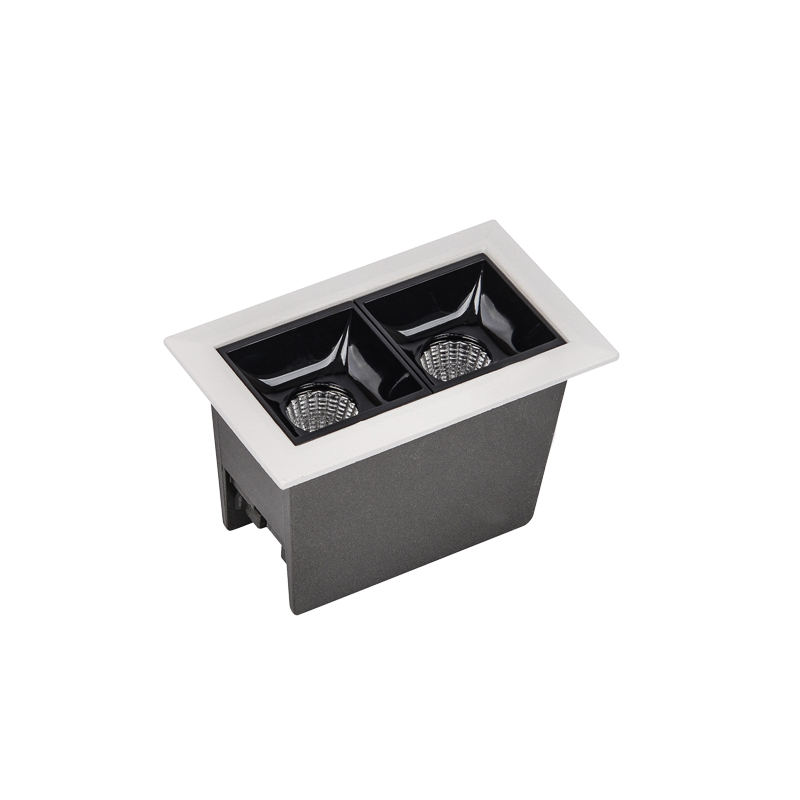

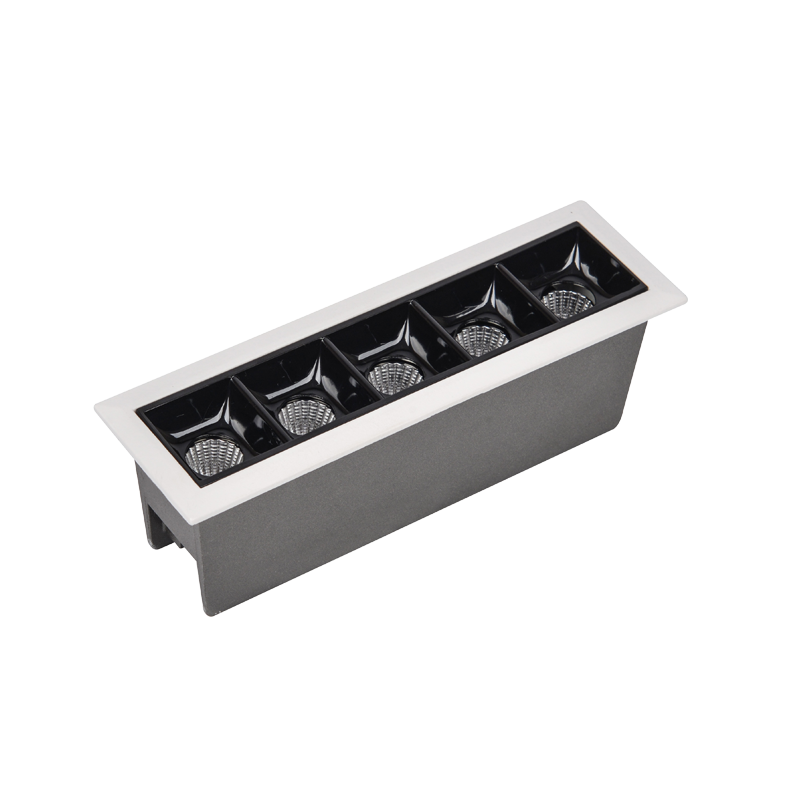

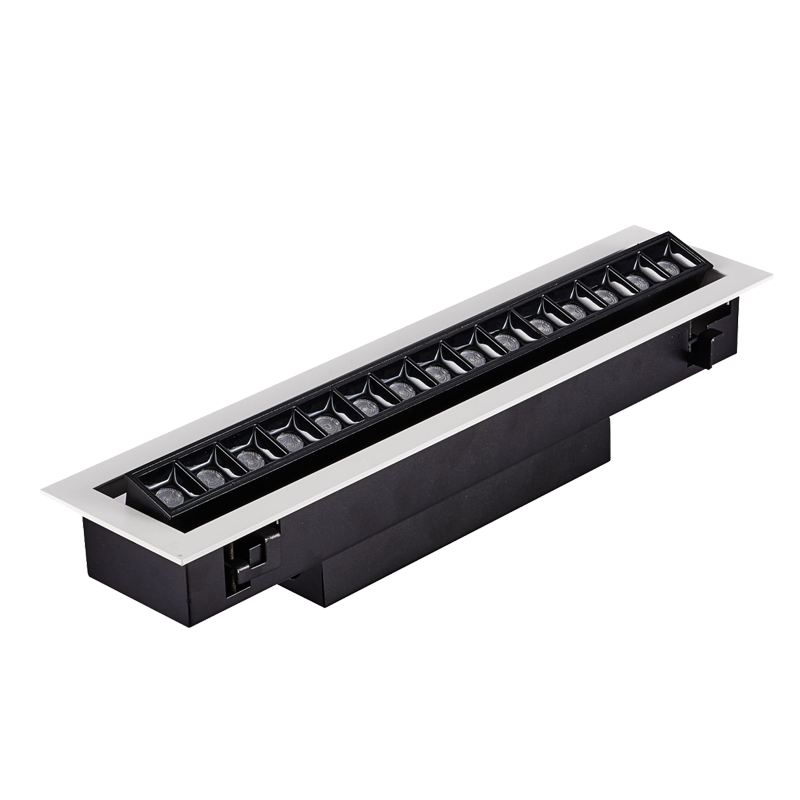

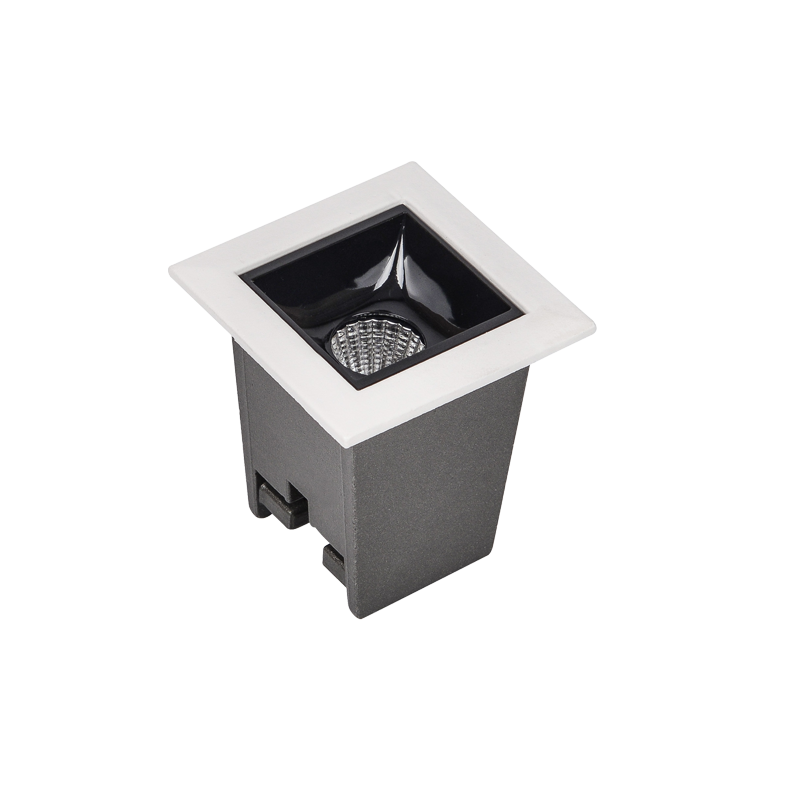

LED Linear Downlight LAC Series

Model: JST-LAC

Wattage: 2W-30W

LED Chip: CREE/CITIZEN/Philips

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/30°/45°

Size: 45*45*49mm-413*45*49mm

Cutout: 37*37mm-405*37mm



Description

The linear downlight LAC series with aluminum extrusion profile, high Alu purity,better heat dissipation for longer life and reliability, up to 50,000 hrs long life span.


The linear downlight LAC series with high quality chip and reflector cup, the special configuration of the optical system delivers a precise circular distribution without a punctiform effect which reduces eye strain. Uniform light, perfect light spot, soft lighting, effective eyes's protection.


The linear downlight LAC series  is no strobe, no ultraviolet ray, energy-efficient and environment-friendly. It is a perfect pick for bedrooms, lounge, kitchen, games room, bars, restaurants, pubs and diners, and offices.


Advantages
  1. No strobe, no ultraviolet ray, green and eco-friendly

  2. Uniform light, perfect light spot, soft lighting.

  3. Low power consumption, less heat produced,

  4. Cold forging process heat-sink,high Alu purity,better heat dissipation

  5. Triac,0/1-10V,DALI dimmable options are all available

  6. Rated Life: 50,000 hrs


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-LAC2W>80/902700K-5000K>0.900.05AAC220-240V

15°/30°/45°

L45*W45*H49mmL37*W37mm
JST-LAC4W>80/902700K-5000K>0.900.10AAC220-240V

15°/30°/45°

L75*W45*H49mmL68*W37mm
JST-LAC10W>80/902700K-5000K>0.900.25AAC220-240V

15°/30°/45°

L147*W45*H49mmL140*W37mm
JST-LAC20W>80/902700K-5000K>0.900.50AAC220-240V

15°/30°/45°

L280*W45*H49mmL273*W37mm
JST-LAC30W>80/902700K-5000K>0.900.75AAC220-240V

15°/30°/45°

L413*W45*H49mmL405*W37mm

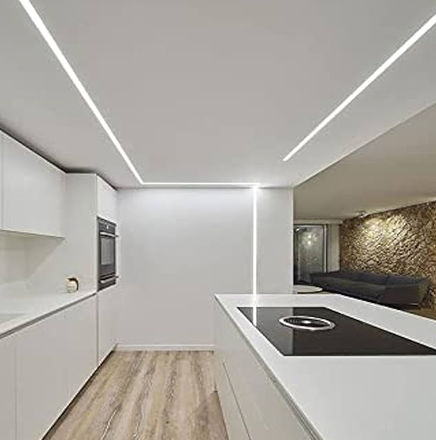

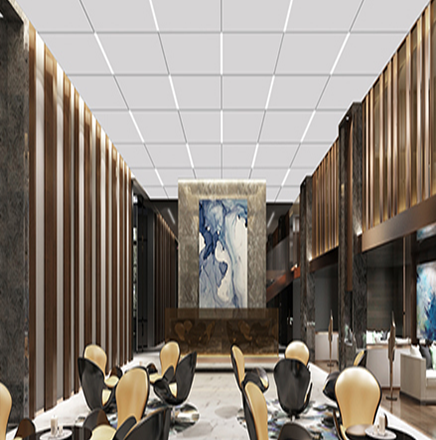

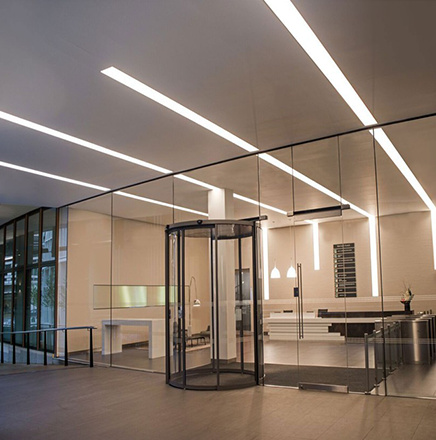

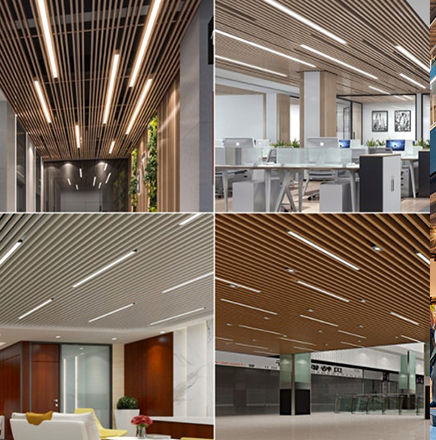

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting

LED Linear Downlight LAC Series LED Linear Downlight LAC Series LED Linear Downlight LAC Series
LED Linear Downlight LAC Series LED Linear Downlight LAC Series LED Linear Downlight LAC Series
