LED Linear Light

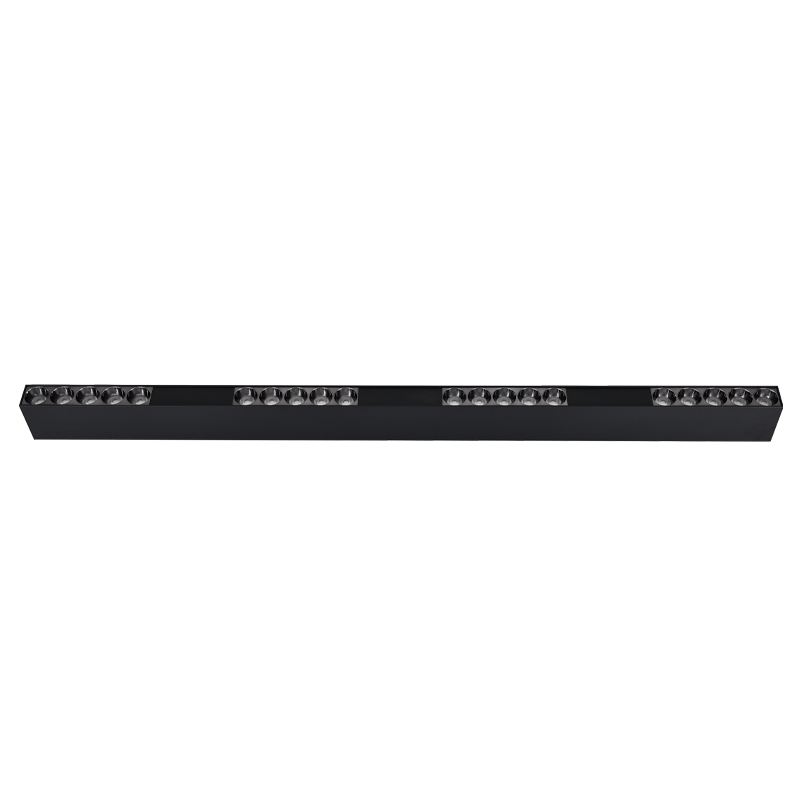

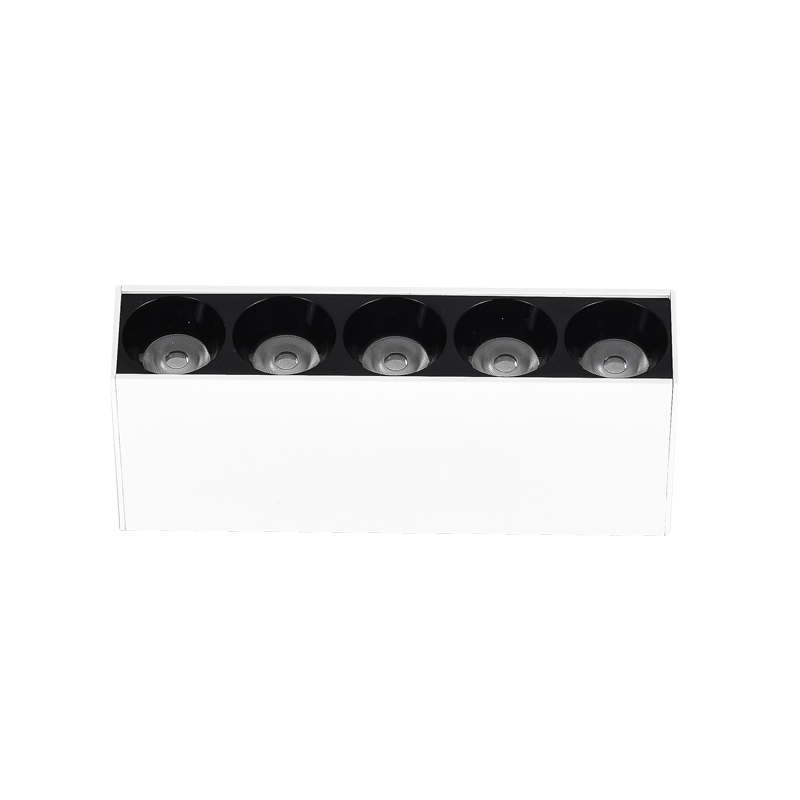

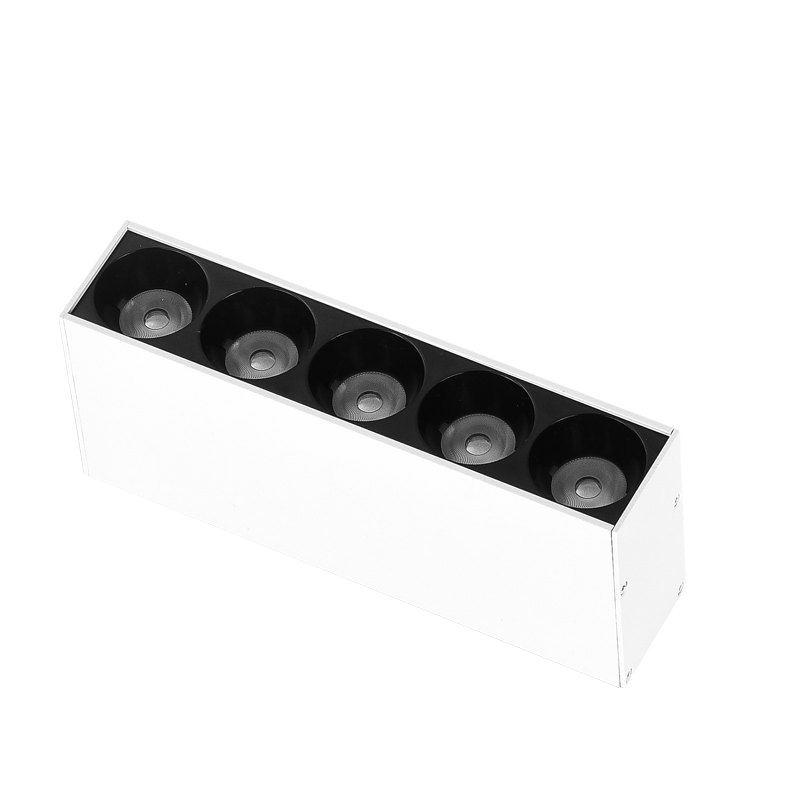

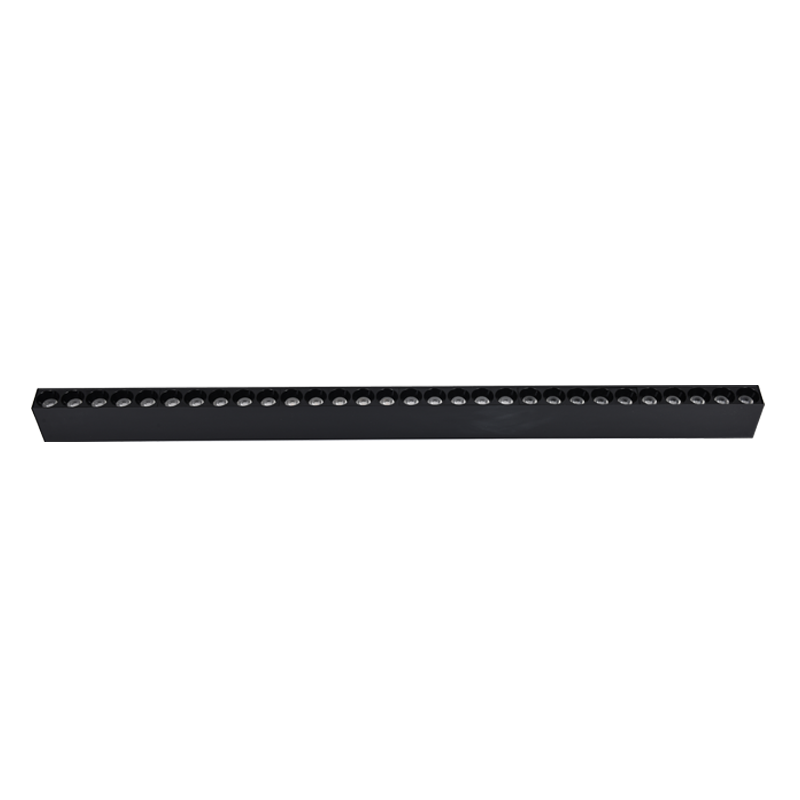

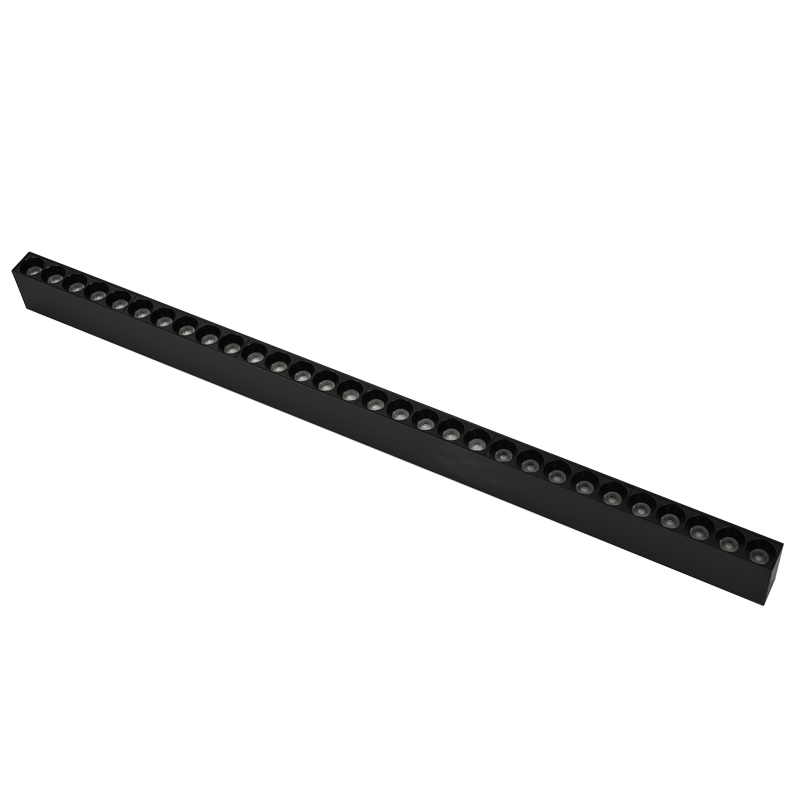

LED Linear Light LL-BC Series

Model: JST-LL-BC Series

Wattage: 10W-50W

LED Chip: OSRAM5050/CREE5050

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/30°/45°

Length: 190mm/1145mm

Installation: Surface mounted/Suspend

Description

LED Linear Light LL-BC Series the lamp body, in fashionable design, is made of 6063 section aluminum and PC reflector. It is combined LED lighting with building harmoniously. Creat a circle of light from a line of LED downlights, A narrow line of nano LED downlights for pure minimalism, widely beam angle 15°-24°-36°, Brilliant quality, more than 50,000 hours life span.


LED Linear light are made of aluminum, the hand is thick, which has a  strong heat dissipation, effectively extend the service life. The light with a high quality chip, deep anti-glare sepalad design, and constant current driver, CRI>80, nFLICKER-FREE and 100% ENVIRONMENT FRIENDLY. Anti-glare design, soft light, no glare, effective protection of eyes, looks comfortable, to create a soft lighting atmosphere.

Advantages

. Connect freely, easy fixing

. 5 different types of corner connectors application

. End caps assembled by mechanical screws and magnet structure

. Ladder type structure design, convenient for disassemble

. Build-in Triac /0-10V/ DALI dimming function optional

. UGR<19

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimension
JST-LL-BC10W>80/902700K-5000K>0.900.25AAC220-240V15°/30°/45°L190*W44*H83mm
JST-LL-BC30W>80/902700K-5000K>0.900.75AAC220-240V15°/30°/45°L1145*W55*H83mm
JST-LL-BC40W>80/902700K-5000K>0.901.00AAC220-240V15°/30°/45°L1145*W55*H83mm
JST-LL-BC50W>80/902700K-5000K>0.901.25AAC220-240V15°/30°/45°L1145*W55*H83mm

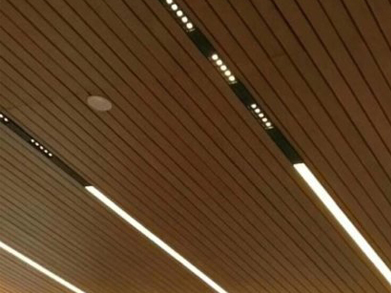

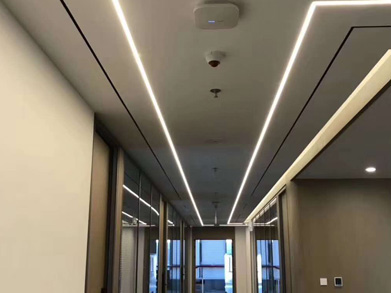

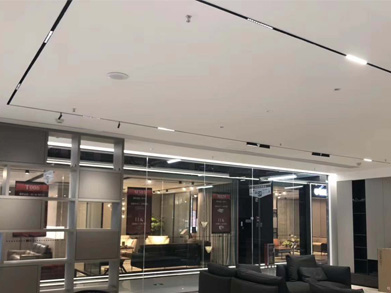

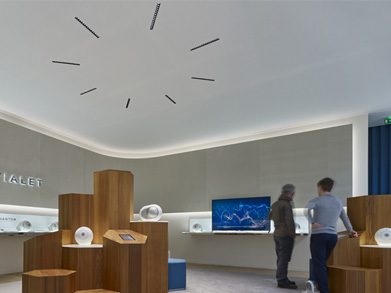

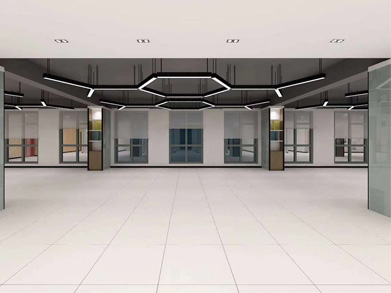

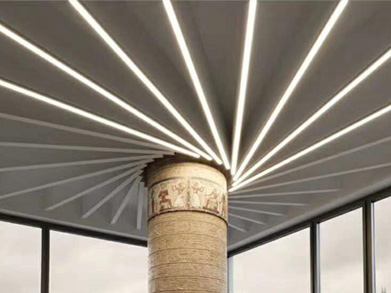

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.

LED Linear Light LL-BC Series LED Linear Light LL-BC Series LED Linear Light LL-BC Series
LED Linear Light LL-BC Series LED Linear Light LL-BC Series LED Linear Light LL-BC Series
