LED Linear Light

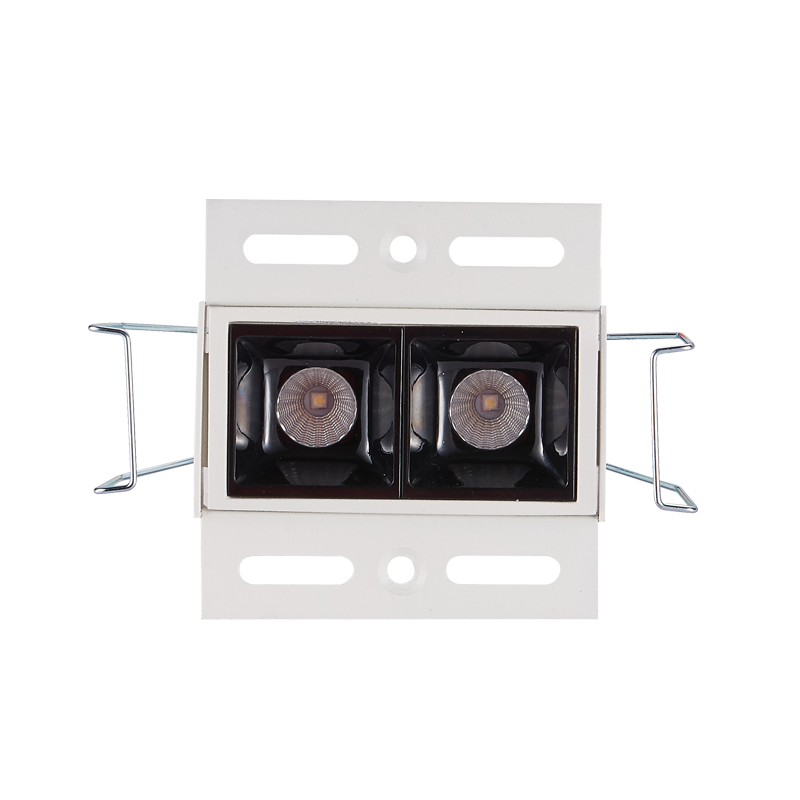

LED Linear Light LL-AC1 Series

Model: JST-LL-AC1

Wattage: 2W-30W

LED Chip: OSRAM3030

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/30°/45°

Diameter: 38mm-406mm

Cutout: 42mm-410mm

Description

LED Linear Light LL-AC1 Series the lamp body, in fashionable design,is made of 6063 section aluminum and PC reflector. It is combined LED lighting with building harmoniously. Creat a circle of light from a line of LED downlights, A narrow line of nano LED downlights for pure minimalism, three choices of beam angle 15°/30°/45°, Brilliant quality, more than 50,000 hours life span.

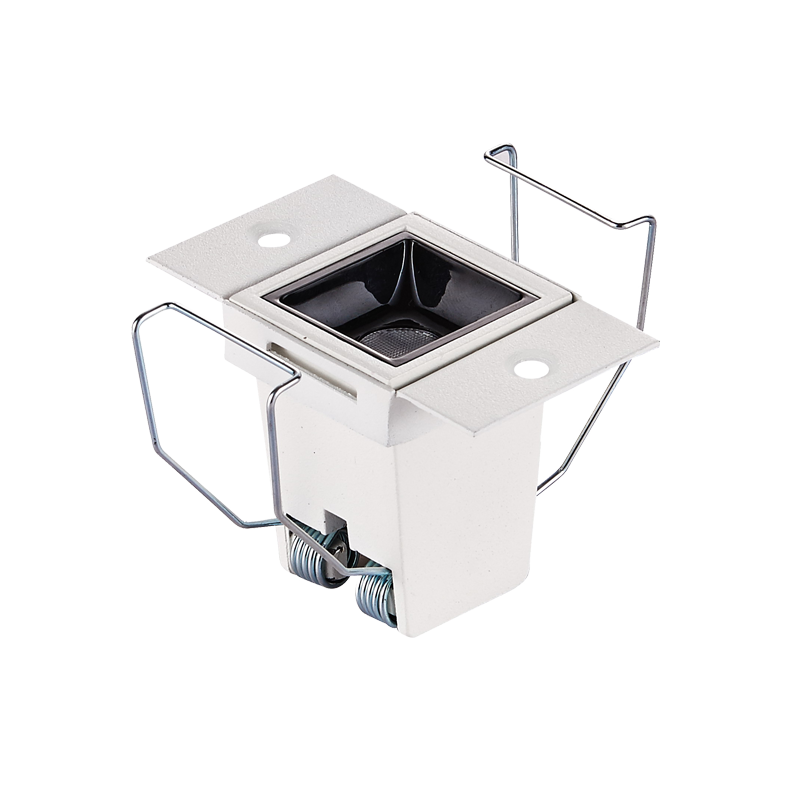

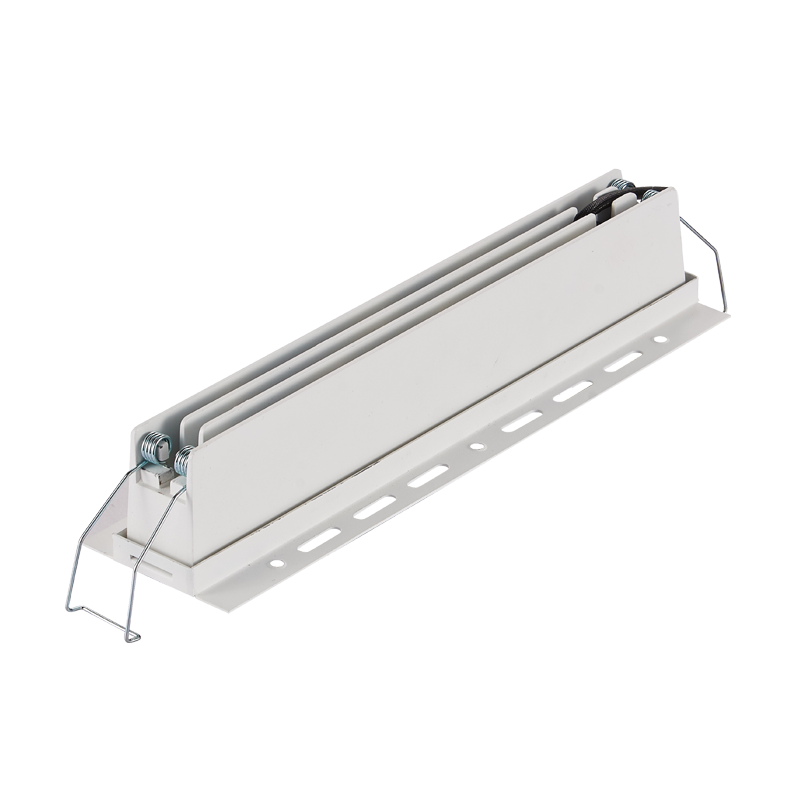

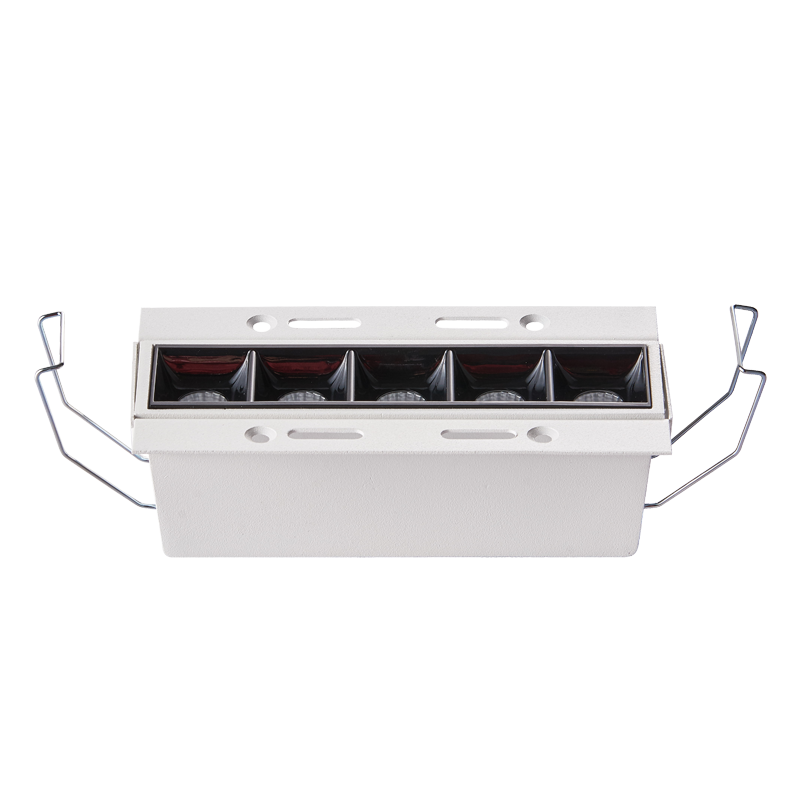

The linear downlight LL-AC1 series with aluminum extrusion profile, high Aluminum purity, better heat dissipation. Spring buckle and frame, double installation, more safe, not easy to fall.


The linear downlight LAC series with high quality chip and reflector cup, the special configuration of the optical system delivers a precise circular distribution without a punctiform effect which reduces eye strain.

Uniform light, perfect light spot, soft lighting, effective eyes's protection.


Advantages

. High brightness,low light decline

. Owns unique and attractive design

. Creat a circle of light from a line of LED downlight

. A narrow line of nano LED downlights for pure minimalism

. Superior glare control for high performance and visual comfort

. The installation is easy and safe

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-LL-AC12W>80/902700K-5000K>0.900.05AAC220-240V15°/30°/45°L38*W91*H49mmL42*W41mm
JST-LL-AC14W>80/902700K-5000K>0.900.10AAC220-240V15°/30°/45°L69*W91*H49mmL72*W41mm
JST-LL-AC110W>80/902700K-5000K>0.900.25AAC220-240V15°/30°/45°L141*W91*H49mmL145*W41mm
JST-LL-AC120W>80/902700K-5000K>0.900.50AAC220-240V15°/30°/45°L274*W91*H49mmL277*W41mm
JST-LL-AC130W>80/902700K-5000K>0.900.75AAC220-240V15°/30°/45°L406*W91*4H9mmL410*W41mm
Application

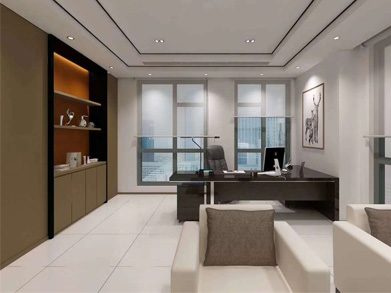

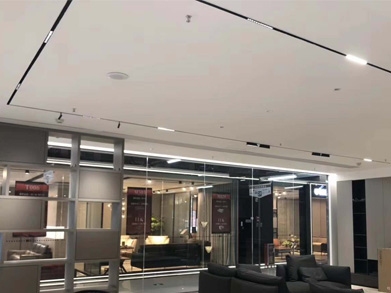

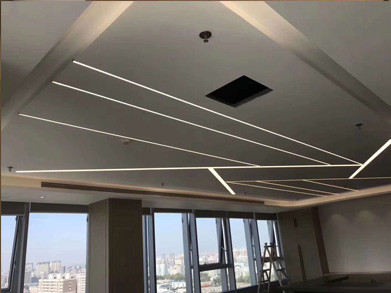

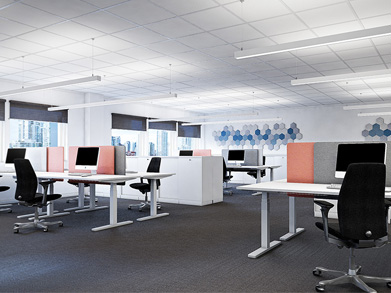

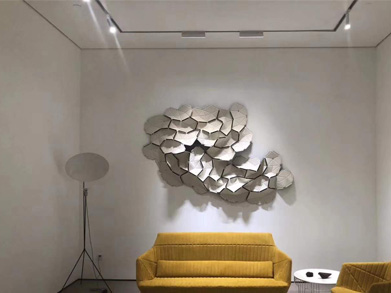

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.

LED Linear Light LL-AC1 Series LED Linear Light LL-AC1 Series LED Linear Light LL-AC1 Series
LED Linear Light LL-AC1 Series LED Linear Light LL-AC1 Series LED Linear Light LL-AC1 Series
