LED Linear Light

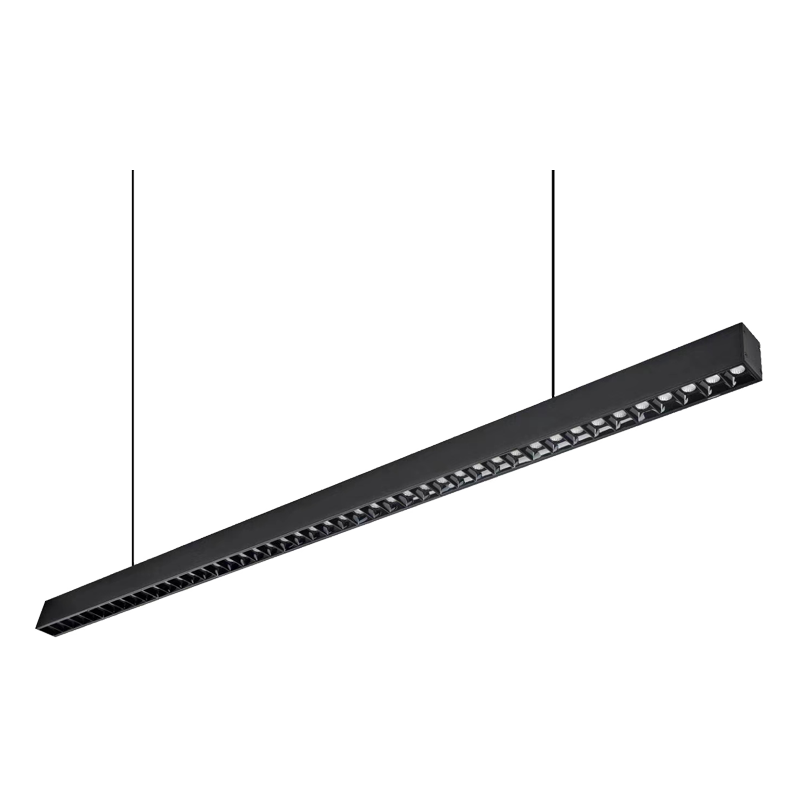

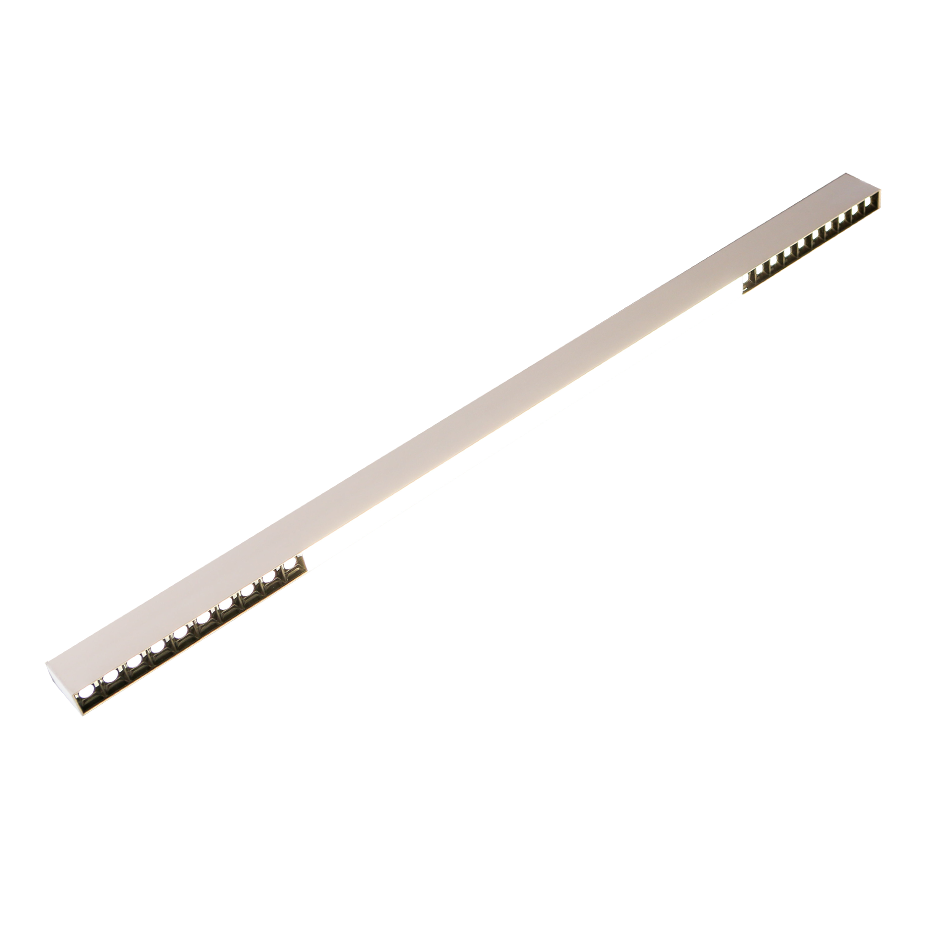

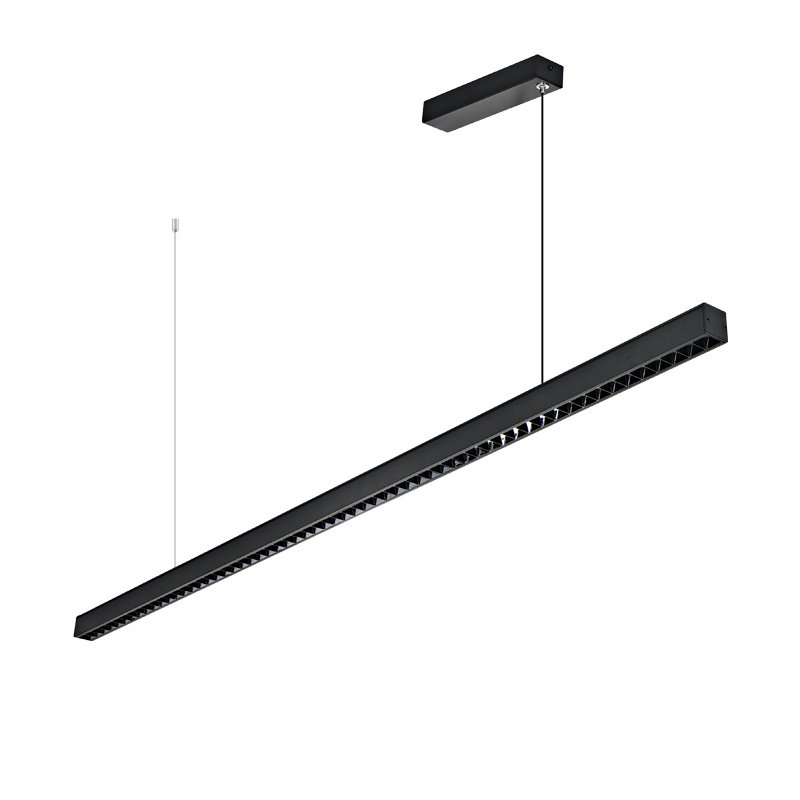

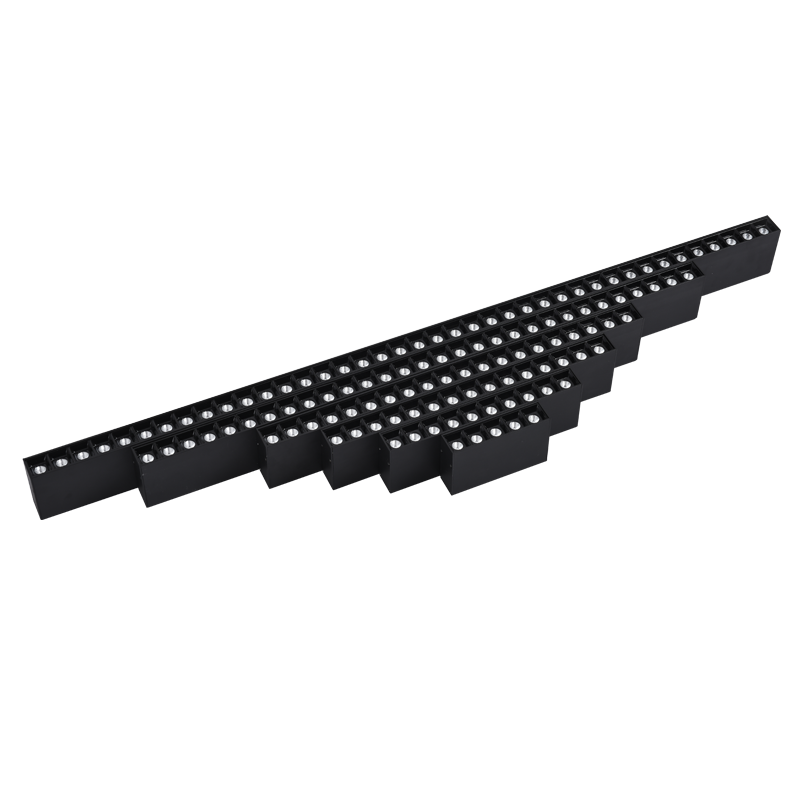

LED Linear Light LL-PC Series

Model: JST-LL-PC

Wattage: 10W-40W

LED Chip: OSRAM3030/Philips3030/Epistar2835

Driver Brand: OSRAM/Philips/Lifud/BOKE

RA: >80/90

Finish Color: White/Black/Customized

Beam Angle: 15°/30°/45°

Size: See below detail

Installnation: Surface Mounted / Suspendent


Description

LED linear light can bring a visual lift to many spaces, both indoors and out.T he possibility of endless lines allows you to go as far as you want. Thanks to the modularity, the luminaire can be designed as you want it

and to go in different directions.


What is Linear Lighting?

LED linear lighting is a type of ceiling lighting uses lots of light-emitting diodes (LED) together in a long, narrow housing, resulting in a sleek line of light. The use of LEDs gives them a long lifespan and also makes them

extremely energy efficient.


Benefits of Linear Lighting Systems

Linear lighting can be practical or fanciful, and it can also be subtle or striking. Linear fixtures are utilized as single standalone luminaires, long straight rows of adjoined fixtures, or geometric shapes formed by

numerous luminaires. Linear fixtures are an essential component of complex or straightforward lighting designs.


There are many advantages to consider when including linear fixtures in a lighting system. Bright, evenly distributed light in commercial spaces can be attained with linear lighting, just as architectural features can be

accentuated to create a memorable space. Linear lighting designs can also utilize long runs of fixtures to emphasize the size or shape of an area or be installed vertically on walls to create a focal point for the room or hallway. Cove lighting and task lighting are another opportunity to install linear fixtures. The addition of control devices, color options, and flexible light temperature assist with creating moods and atmospheres.


What is the lifespan of LED lights?

LED lights have a great lifespan, often up to 50,000 hours or more. This means they seldom need to be changed meaning they are a low-maintenance solution that can be relied on for years to come.


Advantages

Delicate And Beautiful

High Brightness, 3000K/4000k/5000k/6000k Color Temperatures

Made Of High Quality Aluminum Material, Which Has Good Texture, , Efficient Heat Dissipation.

Triple Anti Glare Design‘: Features Reflective Cup, Frosted Lens, And Deep Lamp Source

Providing Natural And Comfortable Light Effect, Soft And Not Dazzling

No UV or IR rays, NO mercury


Specification

JST-LL-PC

ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionInstallnation
JST-LL-PC20W>80/902700K-5000K>0.900.50AAC220-240V

15°/30°/45°

L976*W27*H28mm

Surface Mounted/

Suspendent

JST-LL-PC30W>80/902700K-5000K>0.900.75AAC220-240V

15°/30°/45°

L1194*W27*H28mm

Surface Mounted/

Suspendent

JST-LL-PC5W>80/902700K-5000K>0.900.13AAC220-240V

15°/30°/45°

L140*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-PC8W>80/902700K-5000K>0.900.16AAC220-240V

15°/30°/45°

L270*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-PC12W>80/902700K-5000K>0.900.75AAC220-240V

15°/30°/45°

L405*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-PC15W>80/902700K-5000K>0.900.75AAC220-240V15°/30°/45°L540*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-PC20W>80/902700K-5000K>0.900.50AAC220-240V15°/30°/45°L670*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-PC25W>80/902700K-5000K>0.900.60AAC220-240V15°/30°/45°L805*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-PC30W>80/902700K-5000K>0.900.75AAC220-240V15°/30°/45°L940*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-PC35W>80/902700K-5000K>0.900.85AAC220-240V15°/30°/45°L1070*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-PC40W>80/902700K-5000K>0.901.00AAC220-240V15°/30°/45°L1200*W35/50*H70mm

Surface Mounted/

Suspendent

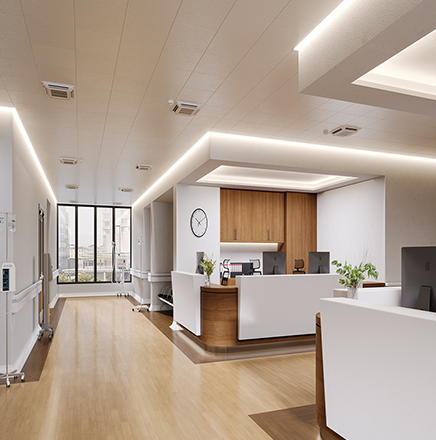

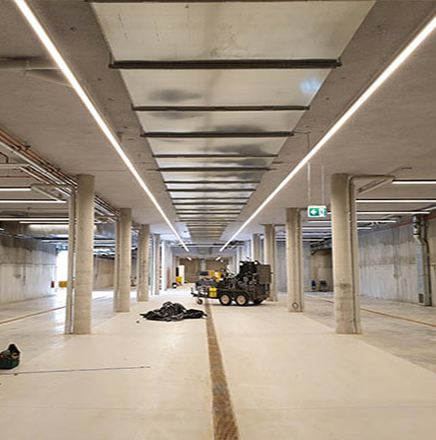

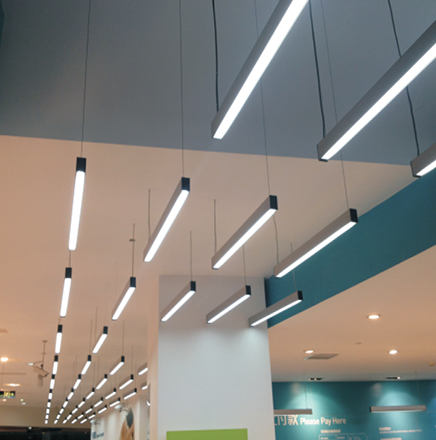

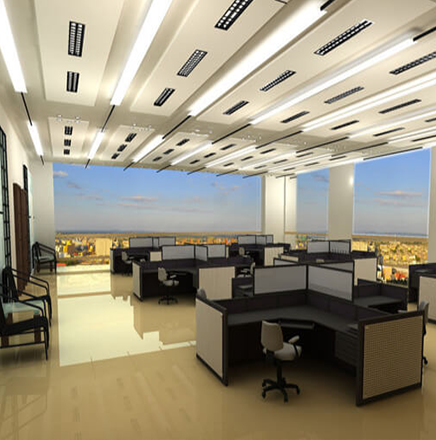

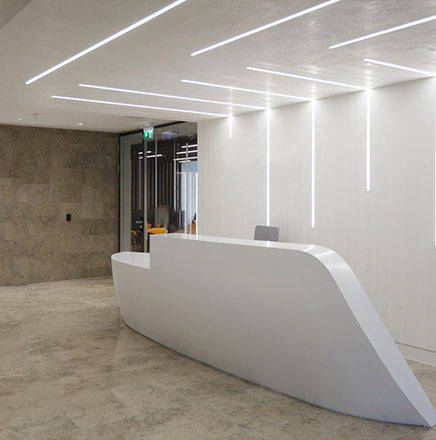

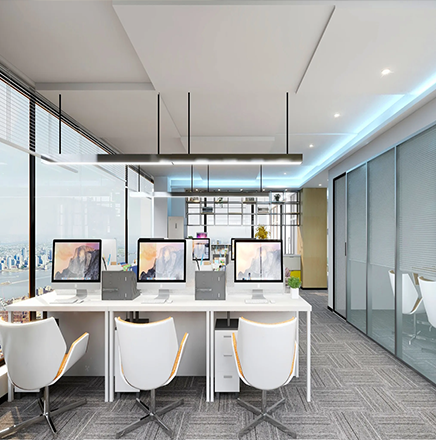

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.
