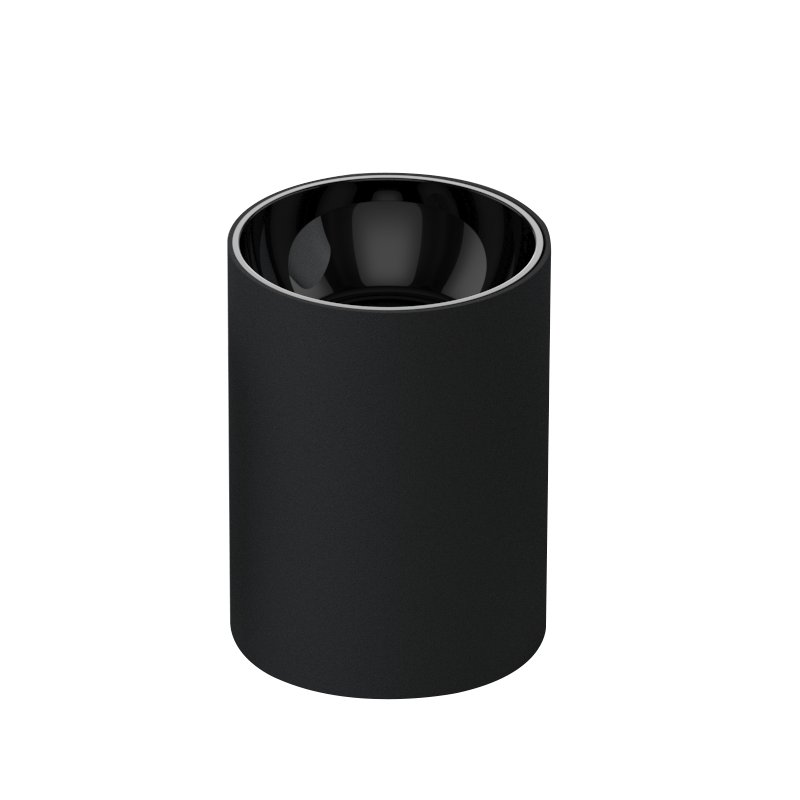

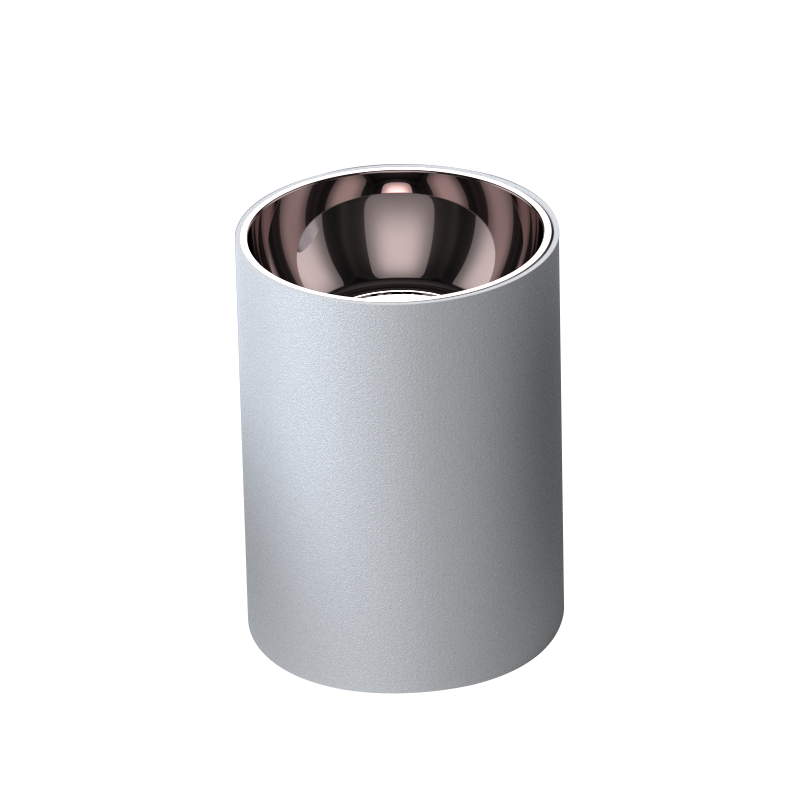

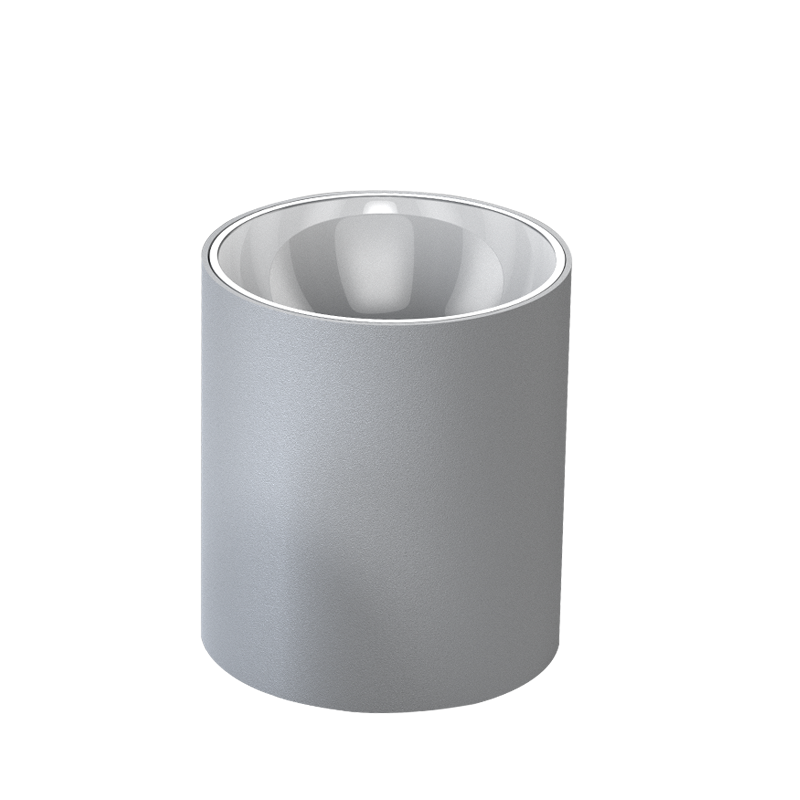

LED Surface Mounted Downlight

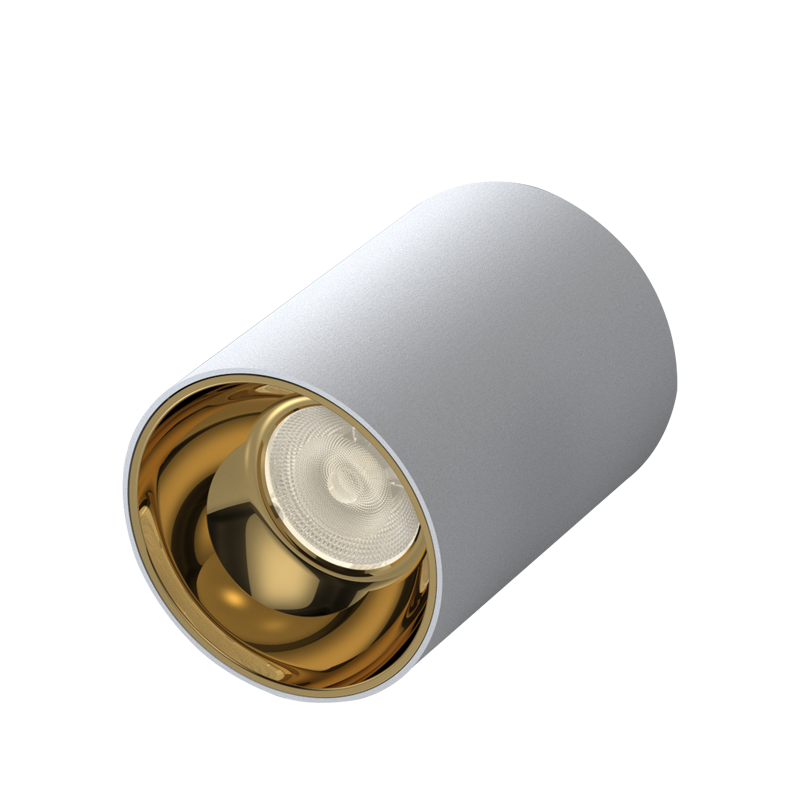

IP65 LED Surface Mounted Downlight SMD Series

Model: JST-SMD

Wattage: 10W-60W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/LYFUD/PHILIPS

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 20°/40°

Diameter: 75mm-205mm

Installation: Surface mounted/Suspended

Description

The simple, cylindrical design of the JARSTAR LED Outdoor Surface Flushmount is a great low-profile addition to your outdoor awnings and covered walkways. Its cast aluminum body mounts to the ceiling and shines

down through a different lends optional shade for warm, ambient lighting. The light source is a single state-of-the-art CREE/CITIZEN COB chip that provides long-lasting, energy-efficient usage.


Based in Shenzen, China, JARSTAR has been presenting artful and innovative illumination. They continually promote the use of cost-saving lighting technologies, including downlight, track light and linear light, in an

effort to provide for the lighting needs of an expanding energy efficient culture.


Idea to IP65, OK for Outdoor Use


Advantages
  1. Reflector enables even distribution with excellent uniformity.

  2. Clear /fog lens

  3. White/Black painted finishes.

  4. Siliver,black, white, golden,nickel,5 color of reflectors for optional

  5. Round,  thick spun aluminum housing available in semi-matte White, Black, Bronze and

  6. Extruded Aluminum Heat Sink designed for superior thermal management to ensure constant light output, color and life.


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDiameter
JST-SMD10W>80/902700K-5000K>0.900.25AAC220-240V20°/40°D75*H100mm
JST-SMD-A15W>80/902700K-5000K>0.900.35AAC220-240V20°/40°D75*H150mm
JST-SMD-B15W>80/902700K-5000K>0.900.35AAC220-240V20°/40°D95*H100mm
JST-SMD20W>80/902700K-5000K>0.900.50AAC220-240V20°/40°D95*H150mm
JST-SMD30W>80/902700K-5000K>0.900.75AAC220-240V20°/40°D115*H150mm
JST-SMD40W>80/902700K-5000K>0.901.00AAC220-240V20°/40°D140*H160mm
JST-SMD50W>80/902700K-5000K>0.901.25A
AC220-240V20°/40°D170*H180mm
JST-SMD60W>80/902700K-5000K>0.901.50A
AC220-240V20°/40°D205*H215mm
Application

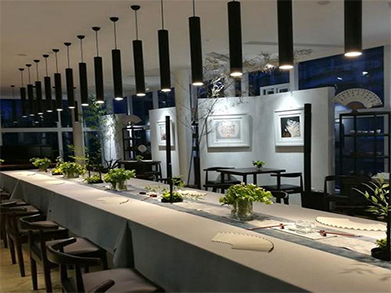

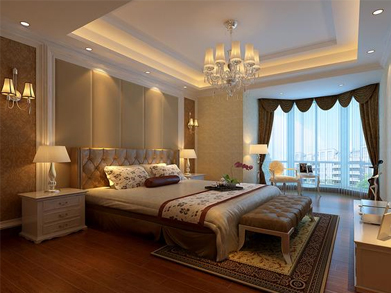

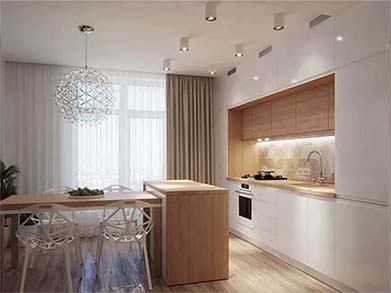

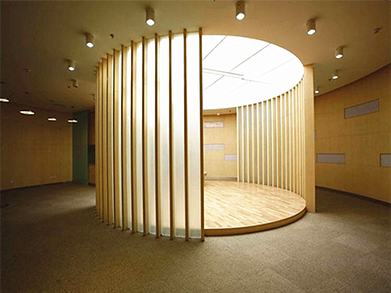

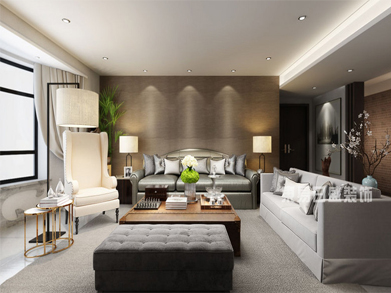

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting,Outdoor ceiling areas lighting, Under canopies lighting etc.
