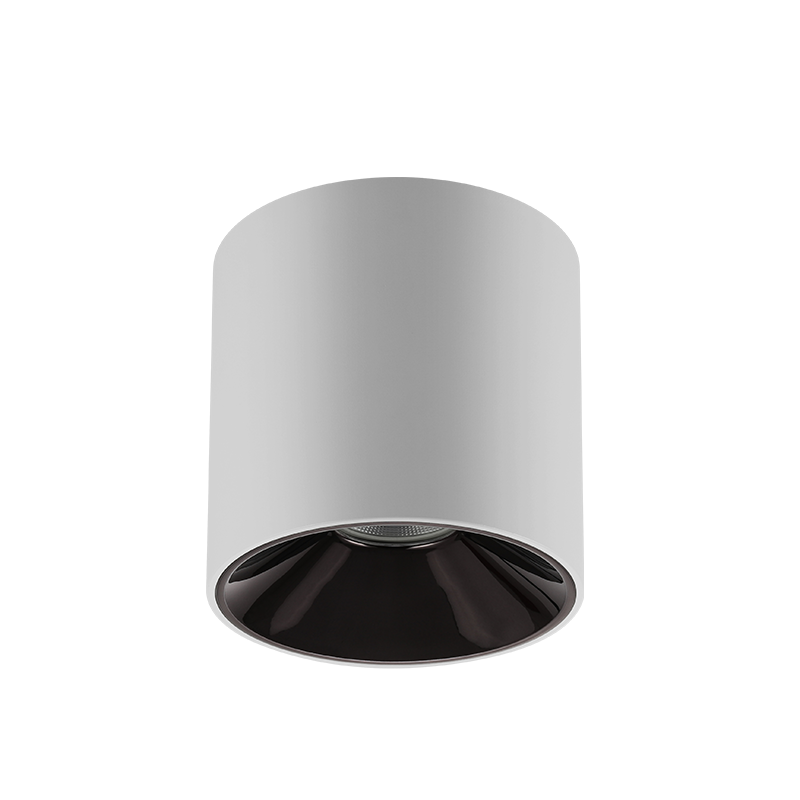

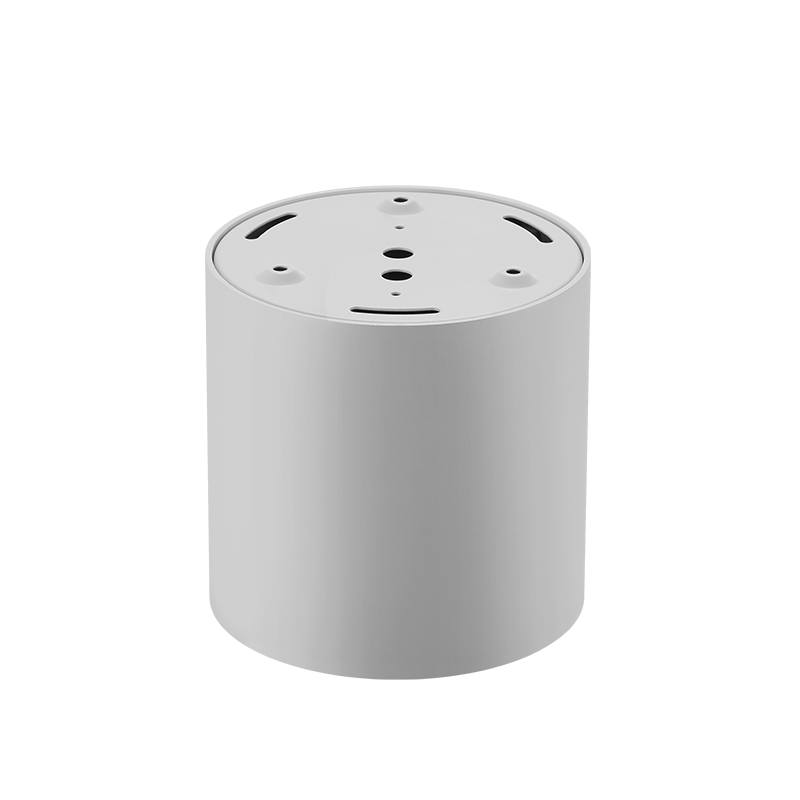

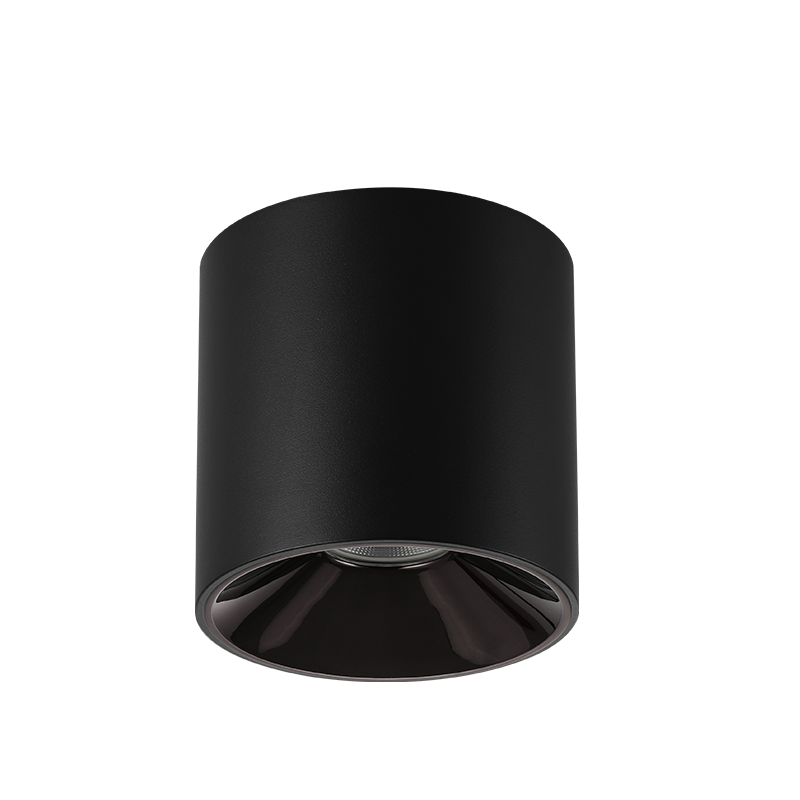

LED Surface Mounted Downlight

LED Surface Mounted Downlight SME Series

Model: JST-SME

Wattage: 15W-45W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: >90

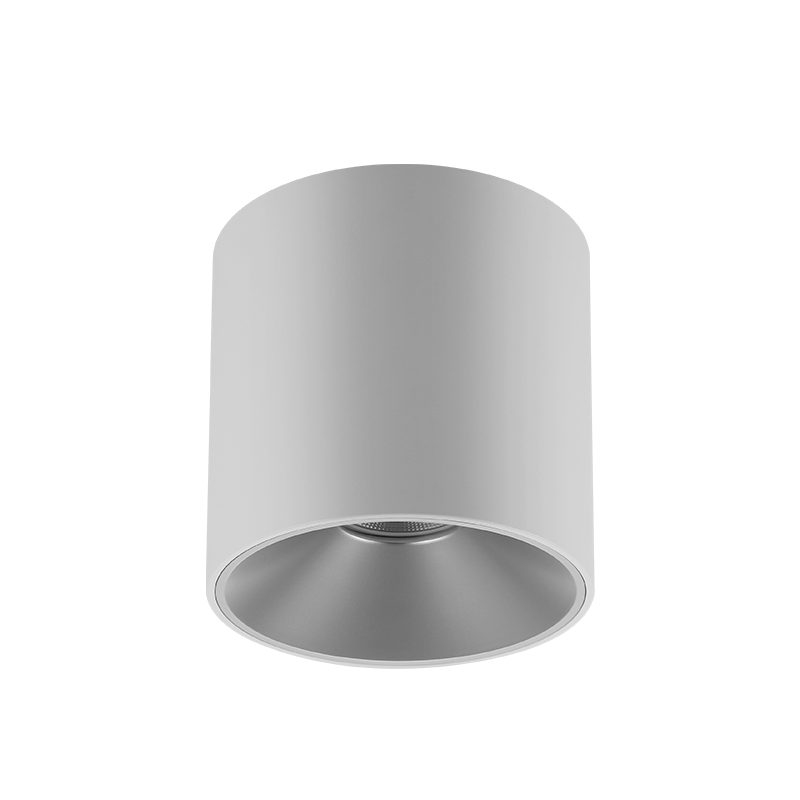

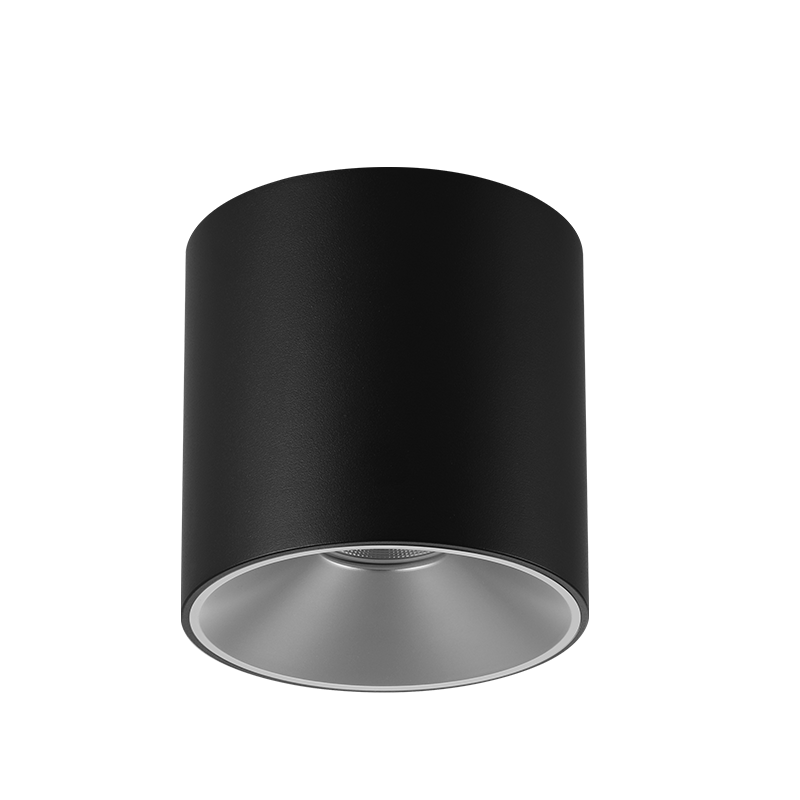

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/36°/45°/60°

Diameter: 100mm-170mm

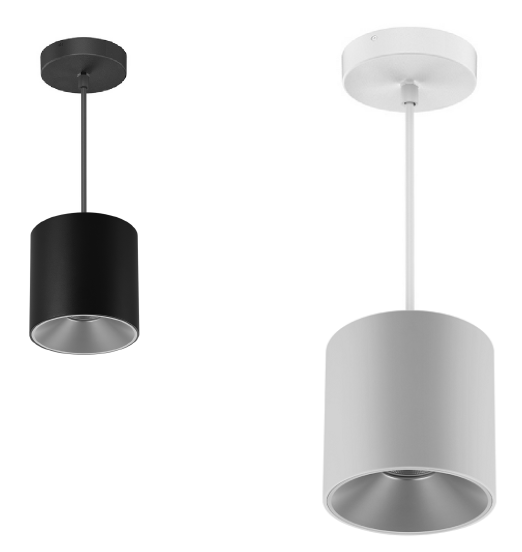

Installation: Surface mounted/Suspend

Description

Surface Downlights is a type commonly used in homes or commercial buildings where recessed ceiling installation is not possible, for example in concrete ceilings. The body of the fitting is clearly visible after

installation. Surface mounted downlight are also used as the main area lighting luminaires. As they are visible the design can vary from simple to decorative to suit the architecture and design. It is one of the

alternatives to the recessed ceiling light or gimbal downlights and  a popular lighting solution in a residential and commercial installations.


SME series of surface mounted spot lights give the effect of downlights with a modern feel. Easy to install as there is no cutting or measuring of the ceiling, and they still provide a great light either downward or

directional. Ideal for many living spaces adding a contemporary with necessary illumination, something different to the standard recessed downlight.


SME series adopt with CREE/CITIZEN COB chip which  high brightness, low light decay, energy saving. Soft and non-dazzling light color, anti-glare, frosted/fog/clear lens optional, suitable for areas where the eyes may

look directly at the light source.


High rendering index ≥90Ra, the higher the color rendering, the better the true color can be restored, the home under the high rendering light is like a filter, light is soft and uniform. The deep anti-glare cup for more

 anti-glare, more safe to eyes.


Aluminum lamp body, with good corrosion resistance, anti-rust and no fading, efficient heat dissipation, durable, Green and eco-friendly without mercury. Can be surface mounted or suspended, offers multiple finish

options.


Advantages
  1. CREE/CITIZEN COB LED, high efficiency

  2. Energy saving, up tp 50000hours life

  3. Optional with avariety of color anti-glare reflectors,

  4. White/Black powder coating, pls contact for other color finished

  5. Simple design, integrated die-cast aluminum body

  6. CE and RoHS compliant


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDiameter
JST-SME15W>80/902700K-5000K>0.900.35AAC220-240V15°/24°/36°/45°/60°D100*H100mm
JST-SME20W>80/902700K-5000K>0.900.50AAC220-240V15°/24°/36°/45°/60°D100*H100mm
JST-SME25W>80/902700K-5000K>0.900.60AAC220-240V15°/24°/36°/45°/60°D130*H130mm
JST-SME30W>80/902700K-5000K>0.900.75AAC220-240V15°/24°/36°/45°/60°D130*H130mm
JST-SME35W>80/902700K-5000K>0.900.85AAC220-240V15°/24°/36°/45°/60°D170*H170mm
JST-SME45W>80/902700K-5000K>0.901.00AAC220-240V15°/24°/36°/45°/60°D170*H170mm

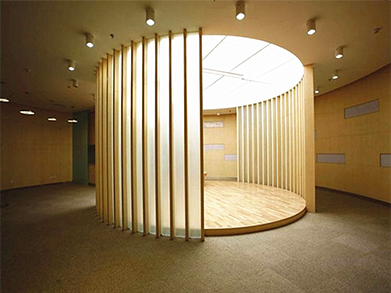

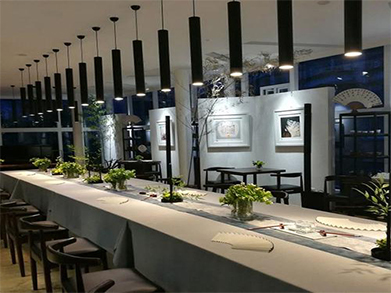

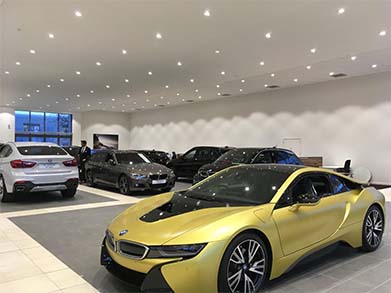

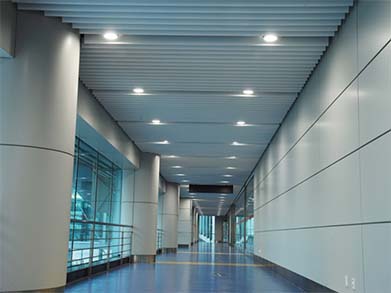

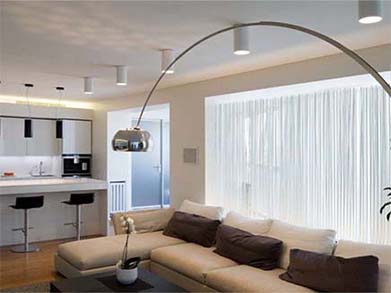

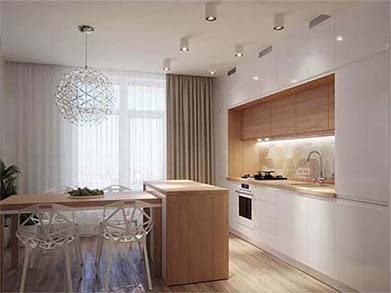

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.

LED Surface Mounted Downlight SME Series LED Surface Mounted Downlight SME Series LED Surface Mounted Downlight SME Series
LED Surface Mounted Downlight SME Series LED Surface Mounted Downlight SME Series LED Surface Mounted Downlight SME Series
