LED Track Light

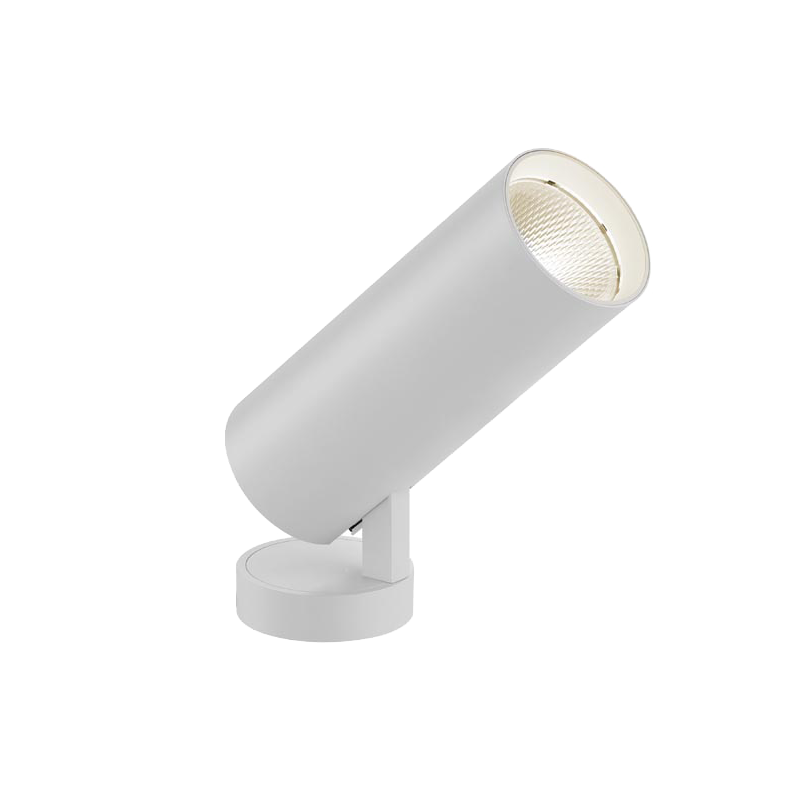

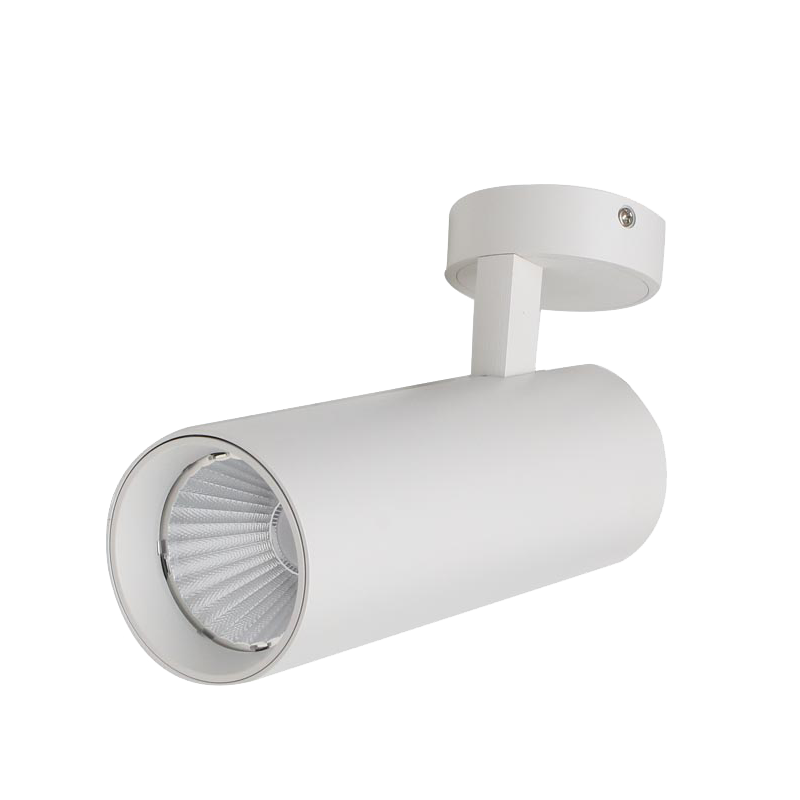

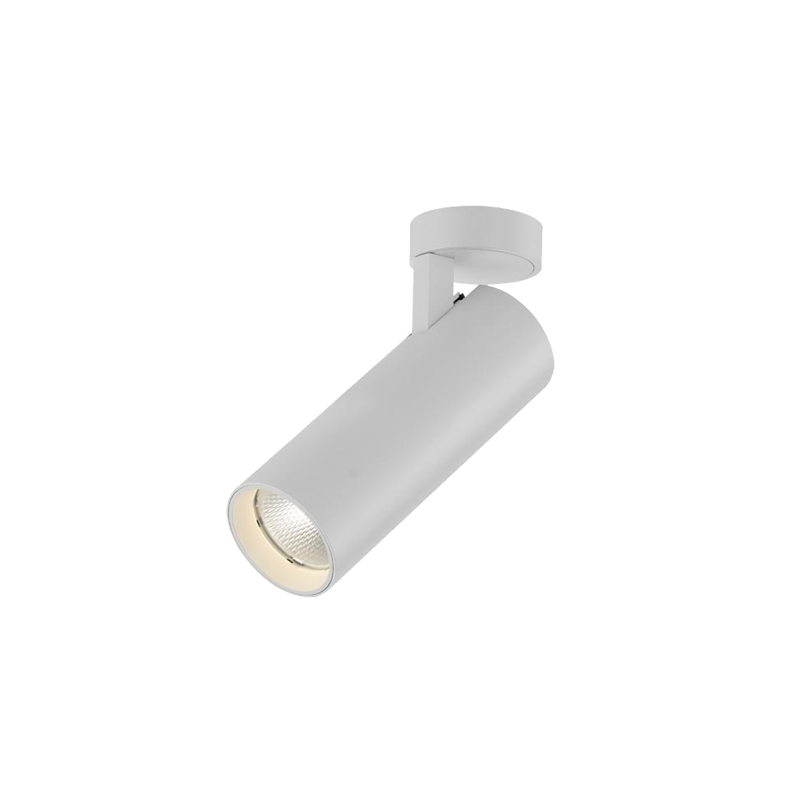

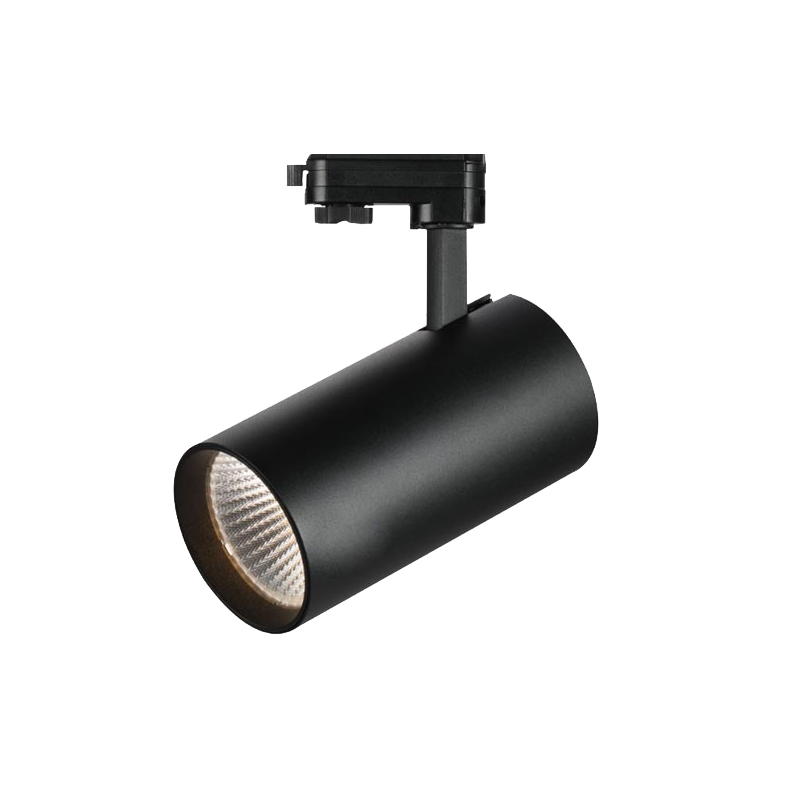

LED Track Light XF-SM Series

Model: JST-XF-SM

Wattage: 15W-35W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Lifud/Tridonic

RA: >90/95

Finish Color: White/Black/Silver/Customized

Beam Angle: 15°/24°/36°/45°/60°

Diameter: 60mm/70mm/80mm/90mm

Installation: Surface Mounted

Description

Track lighting is a type of lighting that gets its name from the fact that it’s installed along a track.The luminaire is mounted on a highly flexible track that allows flexibility in moving and adjusting the Angle of the lamp.

LED track spotlights are simple in structure, easy to install and maintain, and have the characteristics of high energy efficiency, long life and environmental protection. Lamps can be fixed or adjusted to meet different

lighting needs. According to the installation method, it can be divided into embedded, surface mounted, pendant.


LED track light XF-SM Series is a surface mounted track light, but it is different from the general  one.  It without the track rail , the installation method is the same as the surface mounted downlight, it is  originally

researched and developed by JST,  rotate 360° horizontally and 90° vertically.


XF-SM Series track light mainly made of aluminium for long durability and resistance, aluminum radiator, cool down quickly, guarantee a long life span of over 50,000 hours. Adopt with a international top COB Citizen/

Cree chip, built-in light source provides  constant and instant lighting.


XF-SM Series track ligh design with clear diffuser which brings out the most light, can match the siliver reflective cup which 15°/24°/36°/45°/60° to meet the needs of different. interior drive,takes up little space, is light

and strong .


XF-SM Series track lig with glare-free design, perfect light spot and accurate beam angle, make surroundings of comfortable illumination. CRI>90, restore the true color of the object.


Advantages

1.High brightness, Low SDCM﹤3, low light decline,
2.No glare reflector, can match the white, black, gold three reflective cup
3.Refined components and design, guarantee a long life span of over 50,000 hours
4.Exterior driver triac dimmable (200-240v input)and 0-10v Dimmable (100-240v input)
5.Rotatable horizontal 360°and vertical 90°,to meet the needs of different exposure

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimension
JST-XF-SM15W>80/902700K-5000K>0.900.35AAC220-240V15°/24°/36°/45°/60°D60*L170mm
JST-XF-SM20W>80/902700K-5000K>0.900.50AAC220-240V15°/24°/36°/45°/60°D70*L170mm
JST-XF-SM25W>80/902700K-5000K>0.900.60AAC220-240V15°/24°/36°/45°/60°D80*L190mm
JST-XF-SM30W>80/902700K-5000K>0.900.75AAC220-240V15°/24°/36°/45°/60°D90*L180mm
JST-XF-SM35W>80/902700K-5000K>0.900.85AAC220-240V15°/24°/36°/45°/60°D90*L180mm
Application

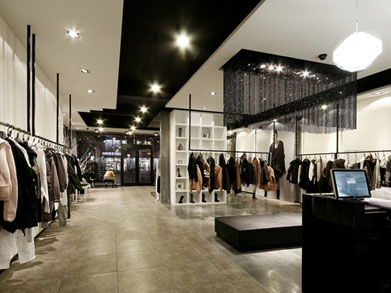

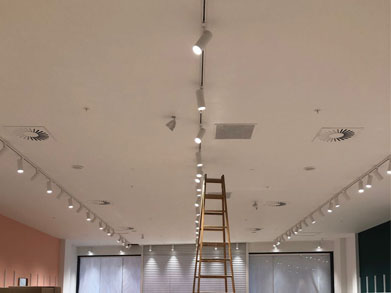

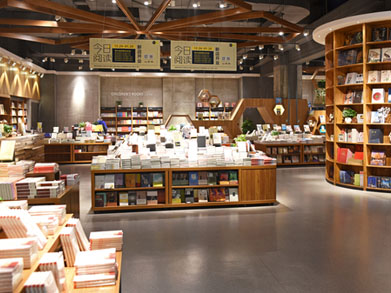

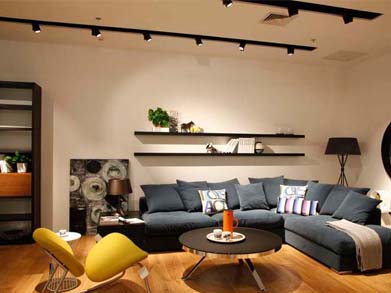

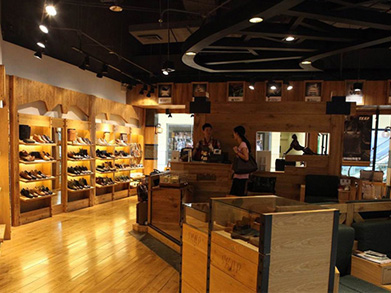

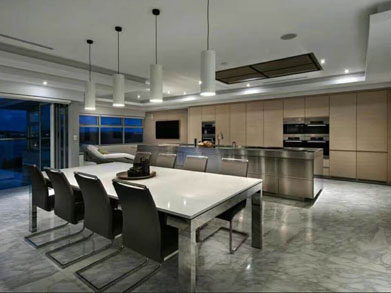

Fashion stores lighting, Stations lighting, Hotels lighting, Offices lighting, Shopping malls lighting, Clubs lighting, Supermarkets lighting etc.
