LED Track Light

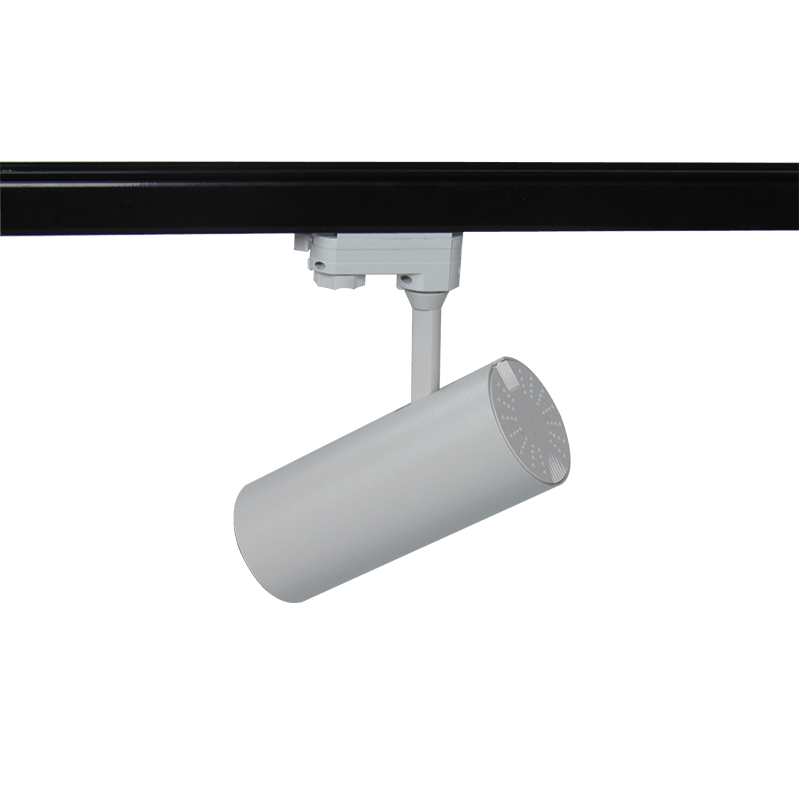

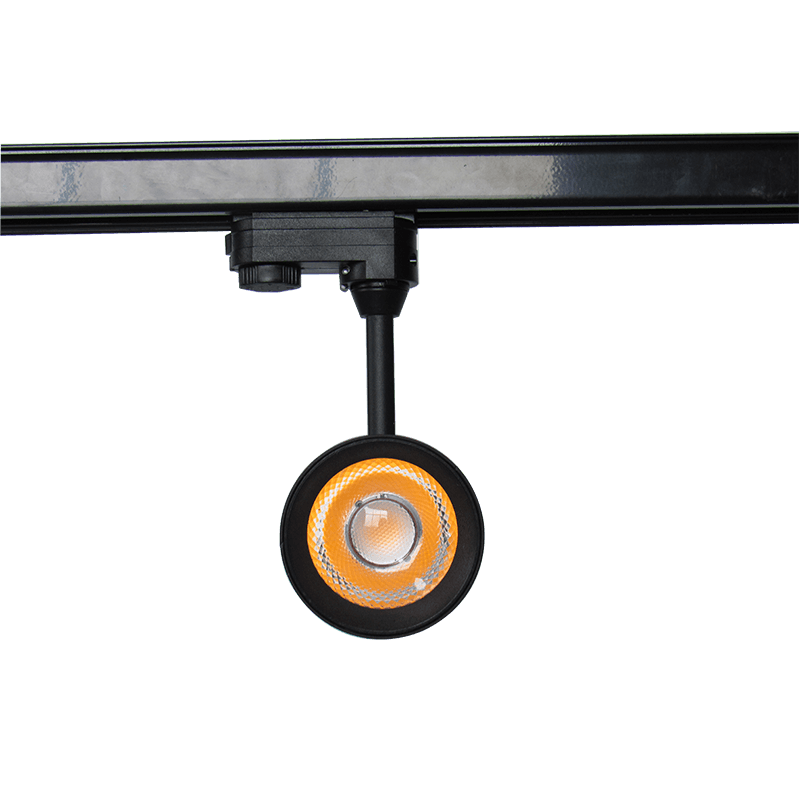

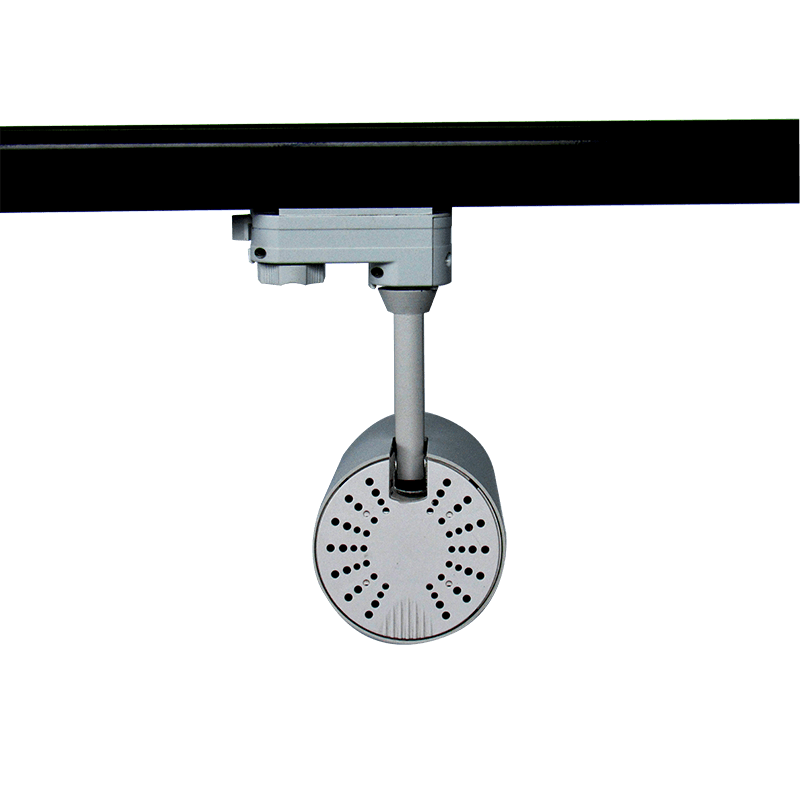

LED Track Light XY Series

Model: JST-XY

Wattage: 10W-30W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Lifud/Tridonic

RA: >90/95

Finish Color: White/Black/Silver/Customized

Beam Angle: 15°/24°/36°/60°

Diameter: 75mm/90mm/110mm

Adapater: 6wires/4wires/3wires/2wires

Description

Track light XY originally researched and developed by JST, 65mm-75mm diameter face cover, integral lamp housing of module CNC aluminum, concise and fluent outlook, internationally top rank CITIZEN COB, plus oriented glare-free reflector and exclusive non-flicker driver, power range from 10w to 30w, ideal choice for royal family, high-end club, museum, and internationally known brands, e.g. Louis Vuitton, Prada, GUCCI, etc.

Advantages

.High Ra﹥90, high efficacy, high luminosity, SDCM﹤3, make surroundings of high-quality illumination

·Glare-free design, perfect light spot with precise cast, make surroundings of comfortable illumination

·Non-flicker design for superior surrounding lighting requirement

·Integral light housing for better heat dissipation, built-in driver for low-temperature operation

·Refined components and design, guarantee a long life span of over 50000 hours

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimension
JST-XY10W>80/902700K-5000K>0.900.25AAC220-240V15/24/36D55*L140mm
JST-XY20W>80/902700K-5000K>0.900.50AAC220-240V15/24/36D65*L160mm
JST-XY25W>80/902700K-5000K>0.900.60AAC220-240V15/24/36D75*L180mm
JST-XY30W>80/902700K-5000K>0.900.75AAC220-240V15/24/36D75*L180mm
Application

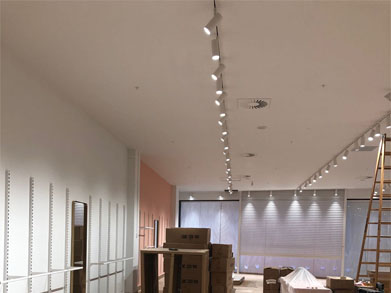

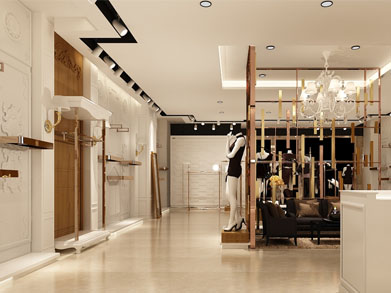

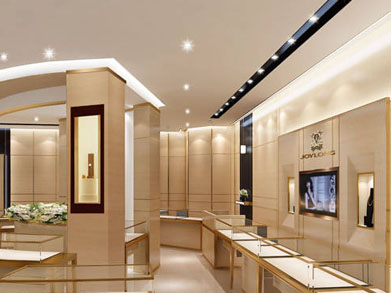

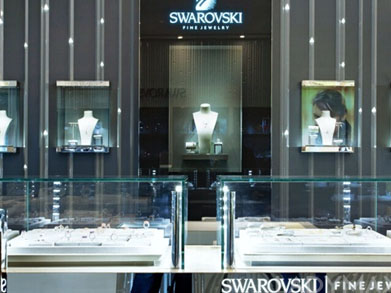

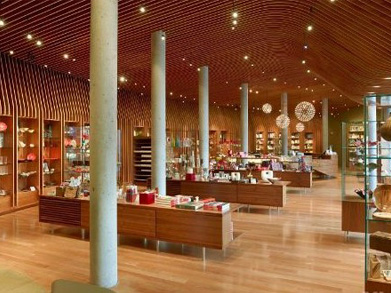

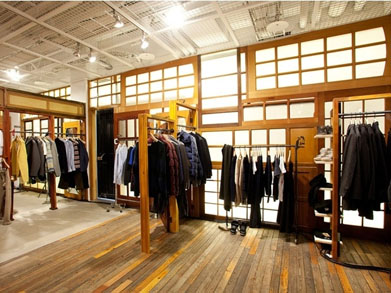

Fashion stores, Stations, Hotels, Offices, Shopping malls, Clubs, Supermarkets etc.

LED Track Light XY Series LED Track Light XY Series LED Track Light XY Series
LED Track Light XY Series LED Track Light XY Series LED Track Light XY Series
