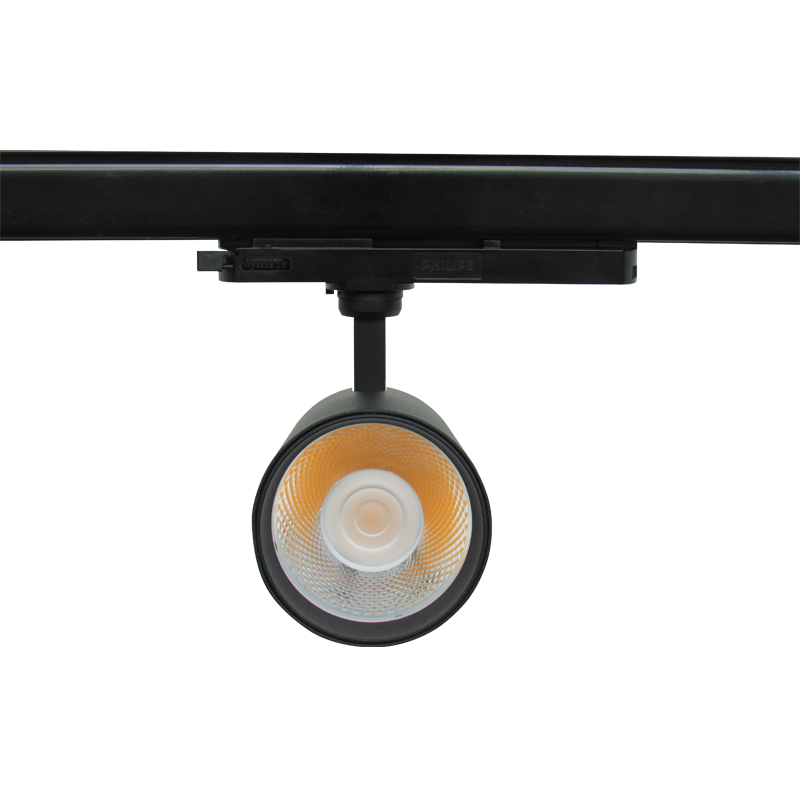

LED Track Light

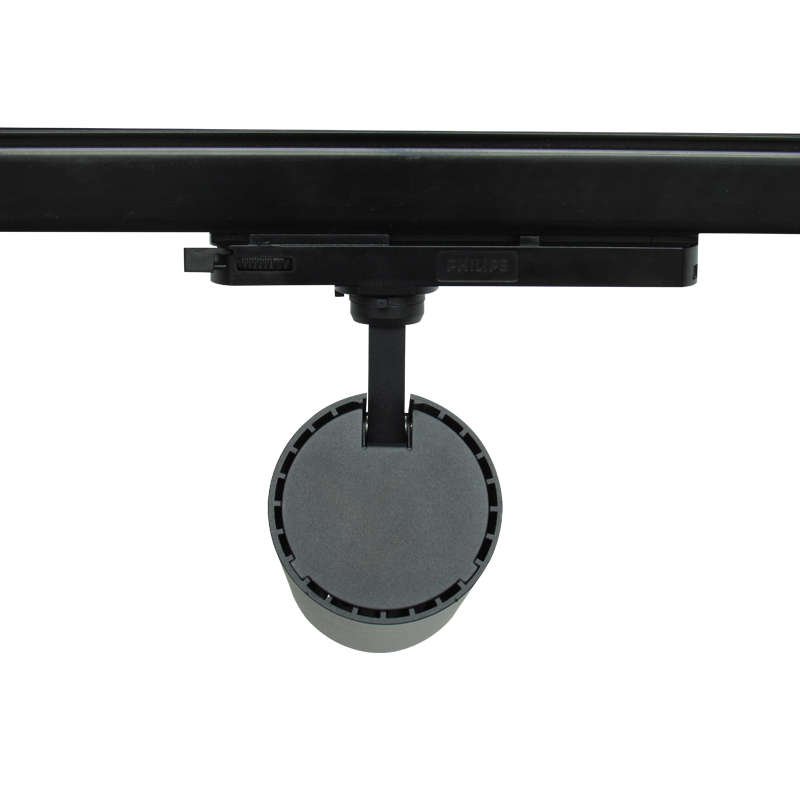

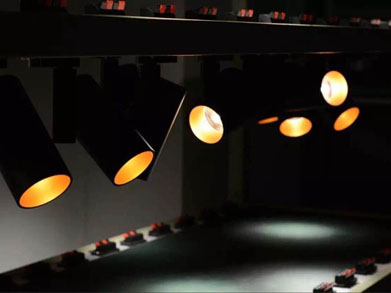

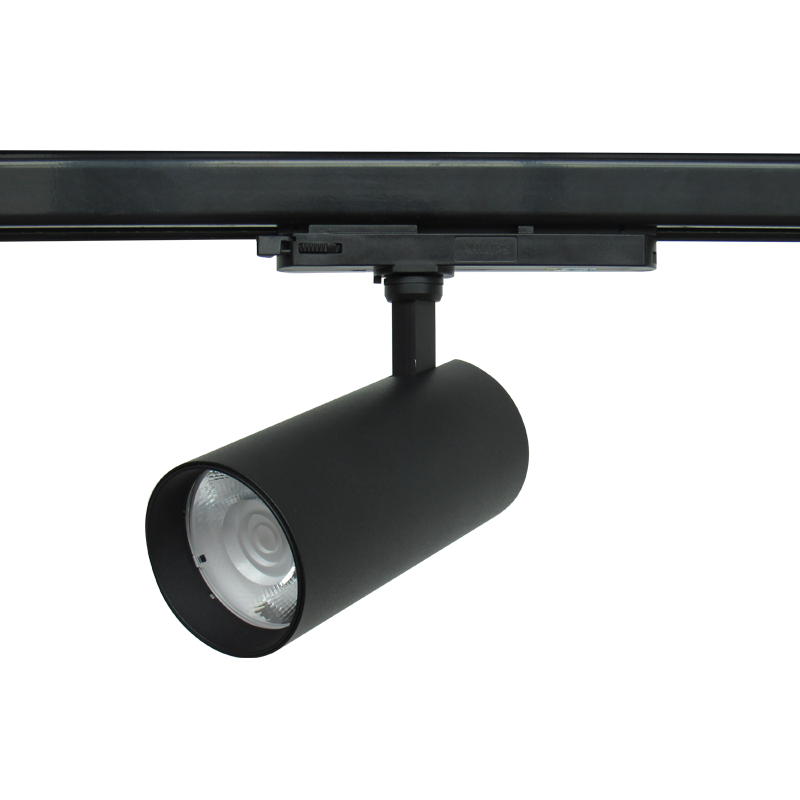

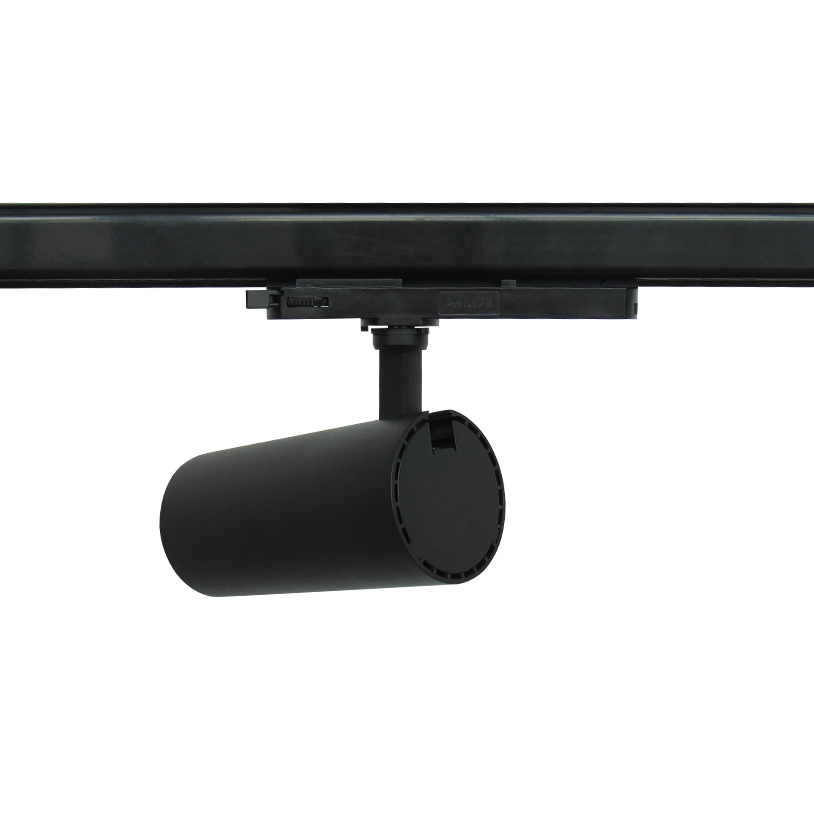

LED Track Light XS Series

Model: JST-XS

Wattage: 10W-35W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Lifud/Tridonic

RA: >90/95

Finish Color: White/Black/Silver/Customized

Beam Angle: 15°/24°/36°

Diameter: 60mm/70mm/90mm

Adapater: 6wires/4wires/3wires/2wires

Description
JST-XS series track spotlights use high-purity aluminum radiator, good heat treatment, long service life;Japan imported Citizen LED, high index, high luminous efficiency, low color tolerance; products meetinternational certification standards; rich optical dimming Accessories can be used to achieve a varietyof spot requirements through simple lens replacement; the unique lens and reflector can be easilyreplaced to meet the needs of different users for the different shapes of the lens and the light cup;a full range of anti-glare accessories can be used with achieve a variety of anti-glare effects; a variety of beam angles are optional; the bracket has a unique scale design, convenient for precise angleadjustment; the lamp body is flexible, horizontal 355 °, vertical 90 ° adjustment; support thyristor,0-10V, DALI dimming, to achieve energy-saving custom lighting; the whole lamp can be removed and replaced by hand, easy to install, powerful, to meet the high-end lighting needs of shops,clubs, furniture stores, museums and other places.
Advantages

·All of parts designed and produced by JST own tools

·Die-cast aluminium heatsink to meet economic price

·LENS & Reflector for options

·Anti-glare Acessories is available

·The light shape could be square , oval and linear .

·CITIZEN COB LED with step 2 to ensure the SDCM <3

·CRI>90Ra For standard production line .

·Dimmable type : None/0-10V/Dali/Wifi dimmable

·CCT dimmable is available : 2700K-6000K

·Customized funcation is available


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimension
JST-XS10W>80/902700K-5000K>0.650.25AAC220-240V15/24/36/60D60*L140mm
JST-XS15W>80/902700K-5000K>0.900.35AAC220-240V15/24/36/60D70*L160mm
JST-XS20W>80/902700K-5000K>0.900.50AAC220-240V15/24/36/60D70*L160mm
JST-XS30W>80/902700K-5000K>0.900.75AAC220-240V15/24/36/60D90*L160mm
JST-XS35W>80/902700K-5000K>0.900.90AAC220-240V15/24/36/60D90*L160mm
Application

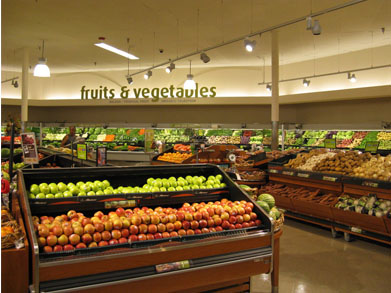

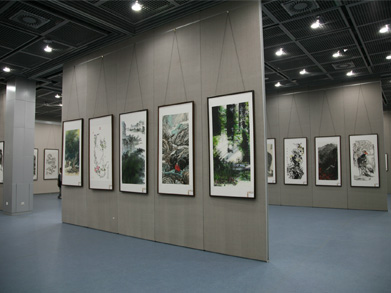

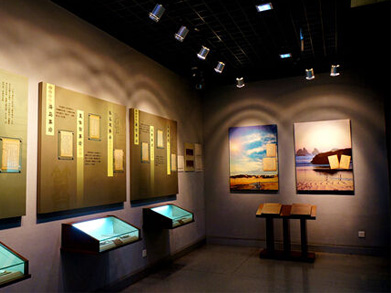

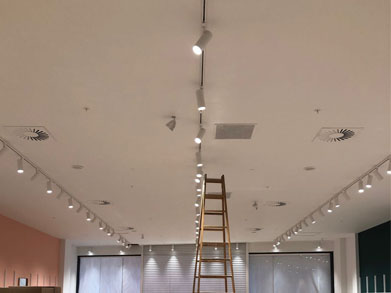

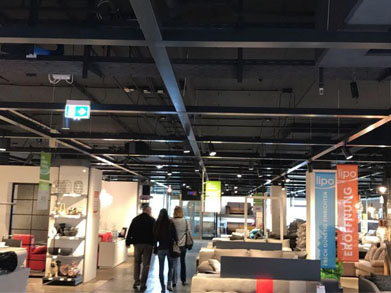

Luxurious hotels, clubs,offices shopping malls, fashion stores, Stations, supermarkets, exhibitions etc.


LED Track Light XS Series LED Track Light XS Series LED Track Light XS Series
LED Track Light XS Series LED Track Light XS Series LED Track Light XS Series
