Model: JST-DTU-S
Wattage: 10W-50W
LED Chip: Citizen/Cree
Driver Brand: OSRAM/Philips/Lifud
RA: ＞90
Finish Color: White/Black/Customized
Beam Angle: 45°/90°
Diameter: 110mm-220mm
Cutout: 90mm-200mm
DTU Series are originally researched and developed by JST, pure aluminum housing, anodized finish, use PC reflector, reflective rate>95％high grade glass, transparent rate>93％, top quality CITIZEN COB, with OSRAM/LIFUD/TRIDONIC exterior driver, dimmable, good heat sink, brilliant quality, more than 50,000 hours life span.
DTU (round and square) series COBs can replace standard incandescent lamps in new and retrofit fixtures, resulting in significant energy savings.
Designed for reliability and optimal performance, the DTU (round and square) series features superior optical performance, improving visibility and safety with 45°/90° uniform illumination of light.
The DTU (round & square) series uses LED chips, the light is more uniform and durable, and the 45°/90° illumination range makes the light softer and protects eyesight. Creates perfect warm and comfortable general lighting without any annoying glare or buzz.
IP65 DTU recessed downlights are available in 10W, 15W, 20W, 30W, 40W and 50W lights. 3 CCT: warm (3000K), neutral (4000K) and white (5000K).
The downlight uses finely crafted aluminum, and its exquisite craftsmanship outlines a simple and elegant arc. The surface is painted to highlight the texture and is not easy to oxidize.

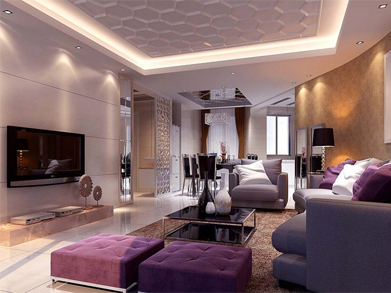

Wide Application: hallways, living rooms, kitchens, bedrooms, dining rooms, offices and more commercial, outdoor or residential applications.

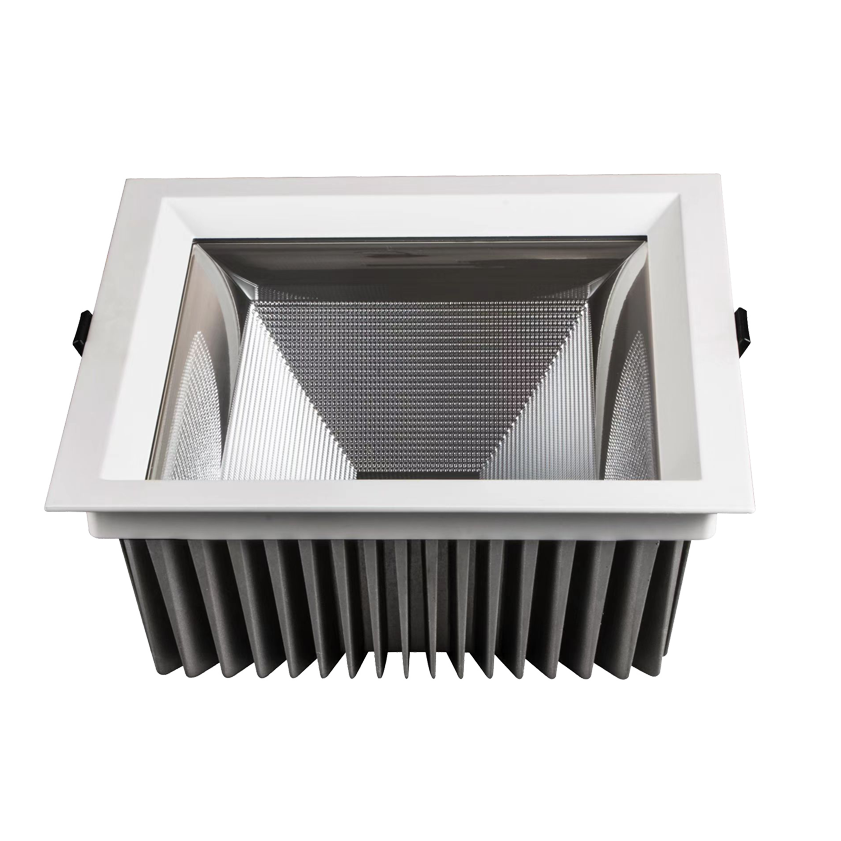

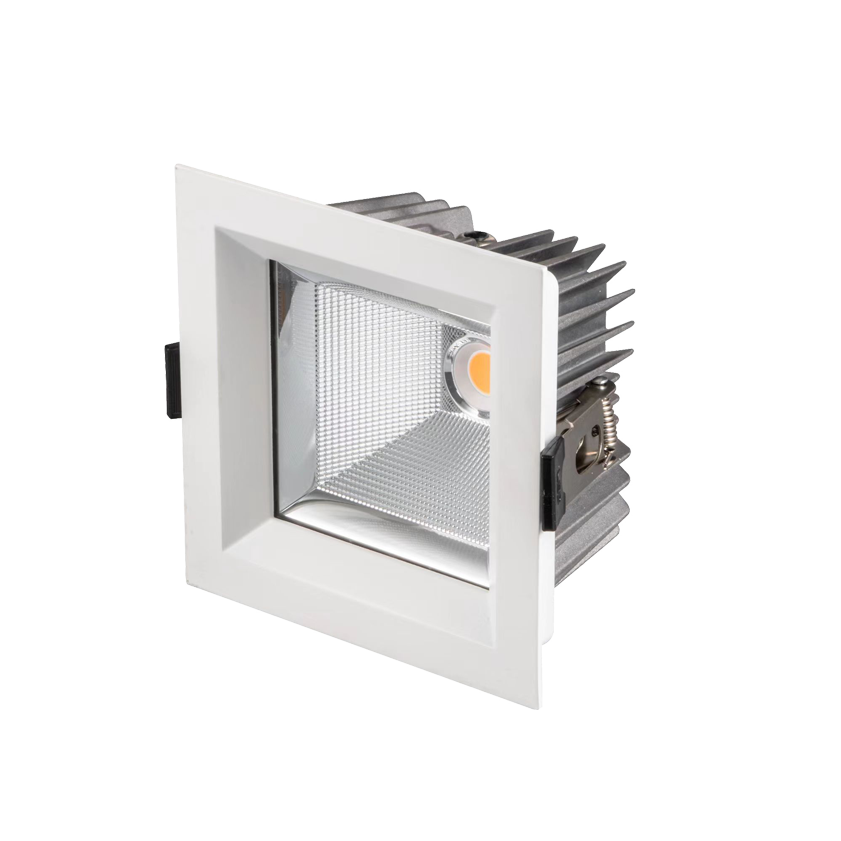

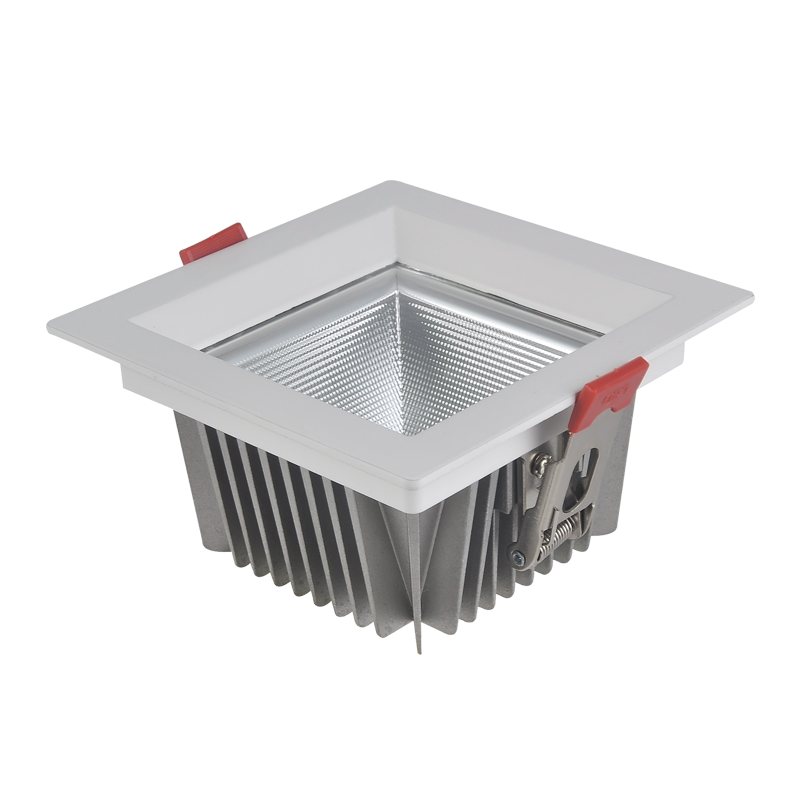

Shape & Design: Round（DTU-R series） & Square（DTU-S series） in Aluminium
IP rate for 65, waterproof and dustprood, ideal for outdoor , hallway
Ncy,high luminosisy,SDCM<3,make surroundings of high-quality illumination
Refined components and design, guarantee a long life span of over 50,000 hours
Triac dimmable and 0-10v dimmable exterior drivers are available.

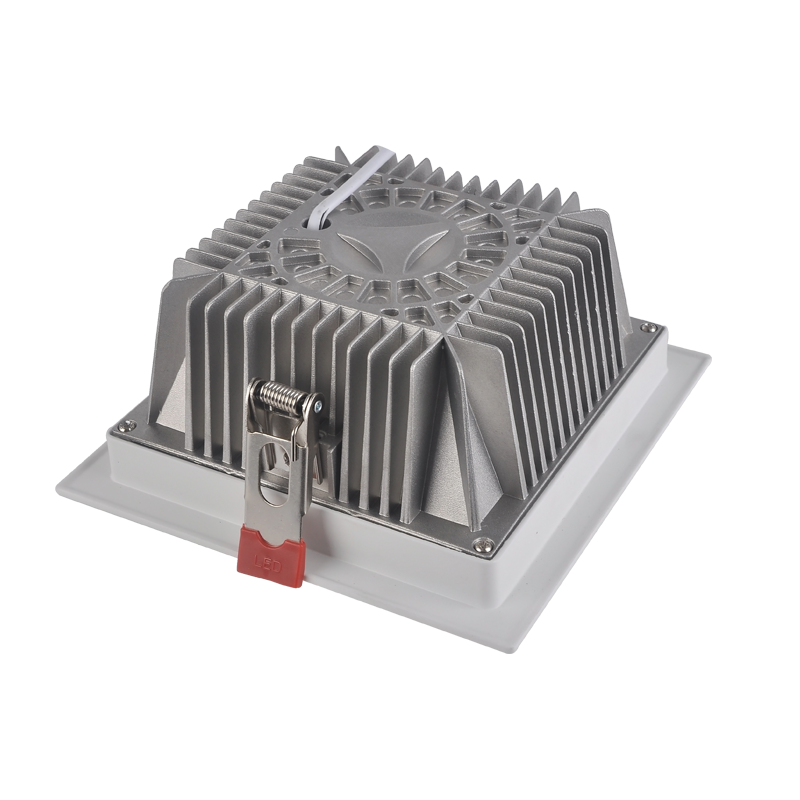

Powerful spring buckle,to ensure stable installation.
Easy to install and highligh
| Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Cutout |
| JST-DTU-S | 10W | >80/90 | 2700K-5000K | >0.90 | 0.25A | AC220-240V | 45°/90° | D110*H59mm | 90mm |
| JST-DTU-S | 15W | >80/90 | 2700K-5000K | >0.90 | 0.35A | AC220-240V | 45°/90° | D110*H59mm | 90mm |
| JST-DTU-S | 20W | >80/90 | 2700K-5000K | >0.90 | 0.50A | AC220-240V | 45°/90° | D130*H70mm | 110mm |
| JST-DTU-S | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 45°/90° | D165*H80mm | 145mm |
| JST-DTU-S | 40W | >80/90 | 2700K-5000K | >0.90 | 1.00A | AC220-240V | 45°/90° | D220*H90mm | 200mm |
| JST-DTU-S | 50W | >80/90 | 2700K-5000K | >0.90 | 1.25A | AC220-240V | 45°/90° | D220*H90mm | 200mm |

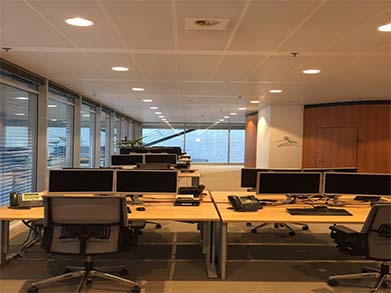

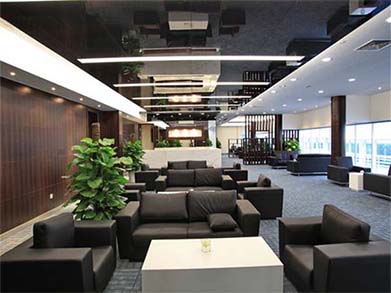

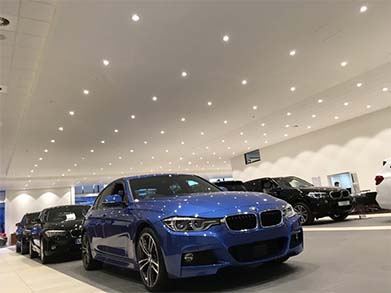

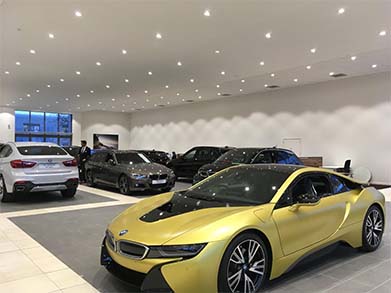

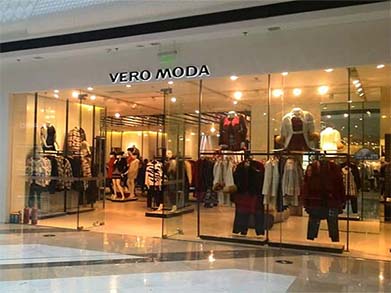

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting，banks lighting, airport,lighting, suppermaket lighting etc.
