Model: JST-LHC
Wattage: 6W-12W
LED Chip: CREE/CITIZEN/Philips
Driver Brand: OSRAM/Philips/Lifud
RA: >90
Finish Color: White/Black/Customized
Beam Angle: 8°/12°/15°/30°/45°
Size: See below spec.
Cutout: See below spec.

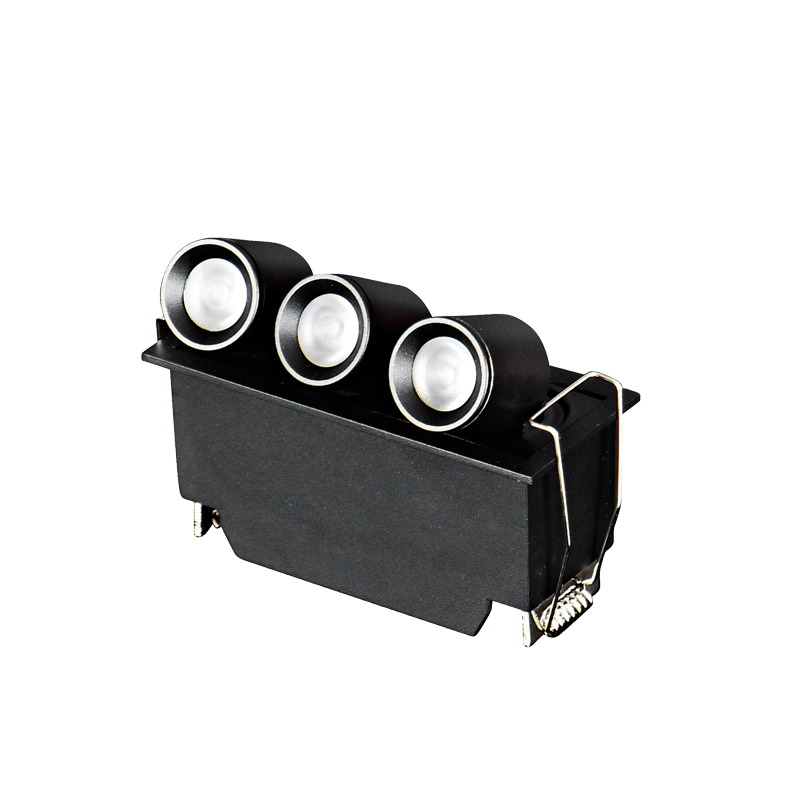

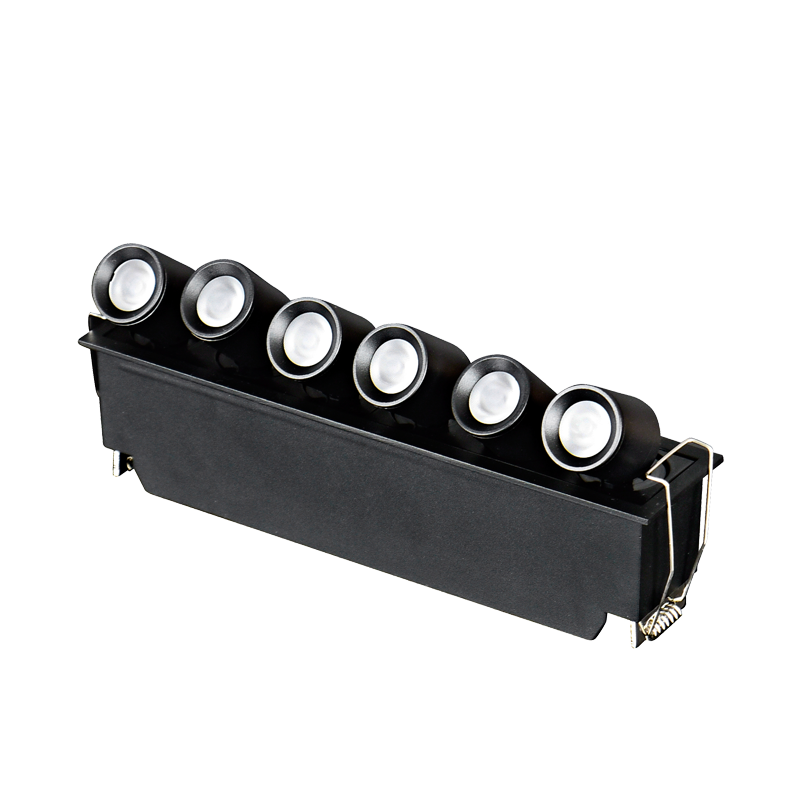

Linear downlight LHC series of quality famous branded LED CREE/CITIZEN COB chip, it has the advantages of high brightness, high light output, long service life and so on, up to 50000hrs life span. High luminous
efficiency, CRI>80/90, The light is soft and even without flickering, with uniform & comfortable light layout. UGR<19 With anti-glare function for soft lighting.
Linear downlight LHC serie with high quality profile, simple & exquisite design.Optical lens or arcylic transparent solutions, high luminous efficiency, No flicker, No glaring with good anti-glare effect, eye protection.
Linear downlight LHC serie with multiple installation method: embedded, surface mounted, trimless optional, You can choose the right that suits you according to your preferences to achieve a satisfactory effect.
Aluminum die-casting lamp body, it can dissipate heat efficiently

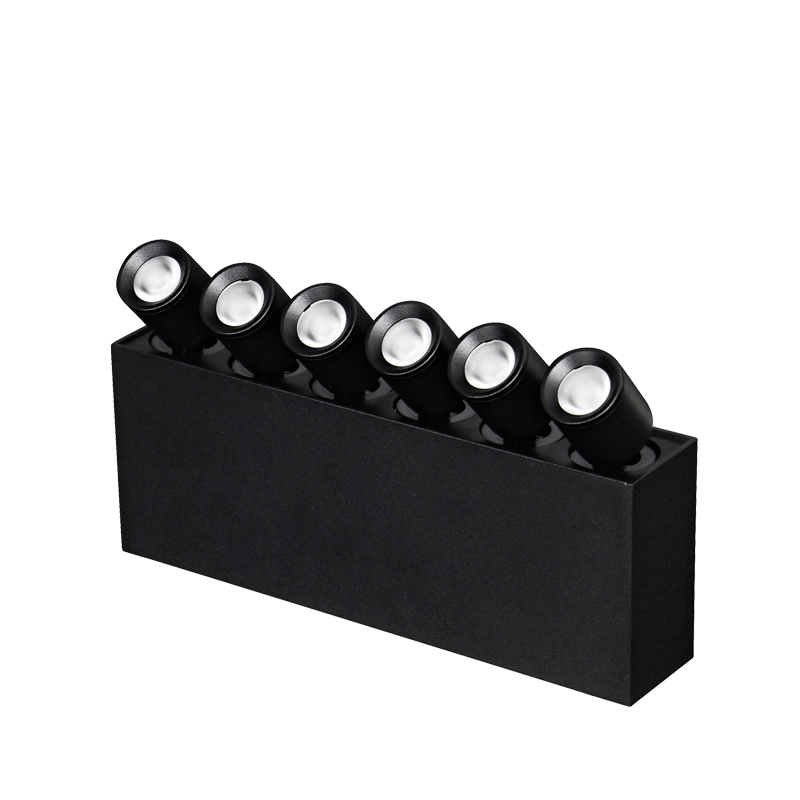

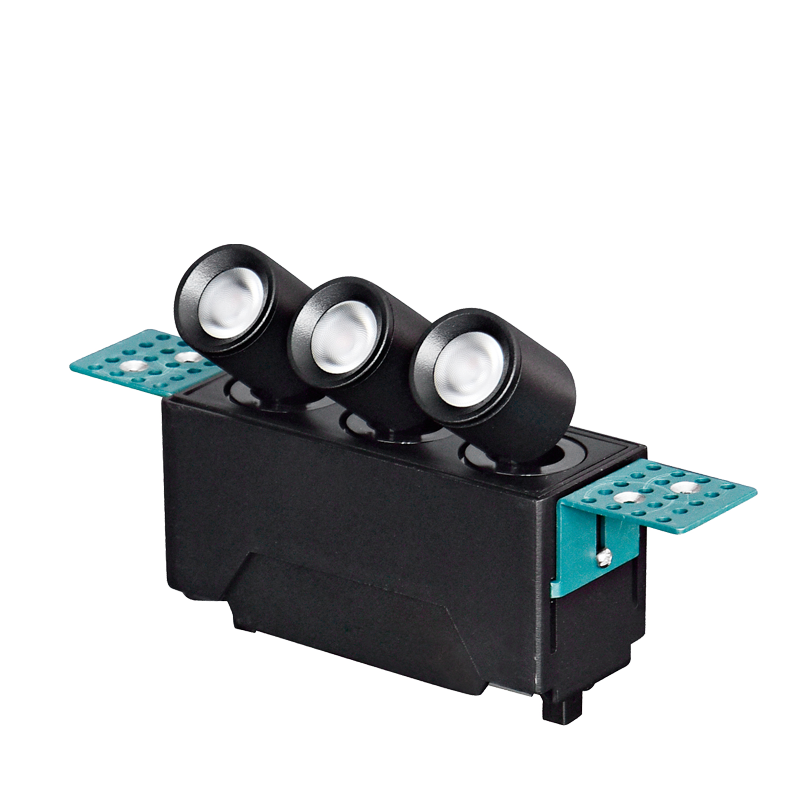

Multiple installation method: embedded, surface mounted, trimless
Horizontal adjustment angle is 0-355°, Vertical adjustment angle is 0-90°,
Beam angle is 8/12/15/25/30/45 optional, narrow beam angle:8
Stretchable
5years warranty
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Cutout |
JST-LHC | 6W | >80/90 | 2700K-5000K | >0.90 | 0.15A | AC220-240V | 8°/12°/15°/30°/45° | L118*W50mm | L108*W40mm |
JST-LHC | 12W | >80/90 | 2700K-5000K | >0.90 | 0.30A | AC220-240V | 8°/12°/15°/30°/45° | L225*W50mm | L215*W40mm |
JST-LHC-B | 12W | >80/90 | 2700K-5000K | >0.90 | 0.30A | AC220-240V | 8°/12°/15°/30°/45° | L225*W50mm | L215*W40mm |
JST-LGC-SM | 6W | >80/90 | 2700K-5000K | >0.90 | 0.15A | AC220-240V | 8°/12°/15°/30°/45° | L118*W42mm | / |
JST-LGC-SM | 12W | >80/90 | 2700K-5000K | >0.90 | 0.30A | AC220-240V | 8°/12°/15°/30°/45° | L212*W42mm | / |

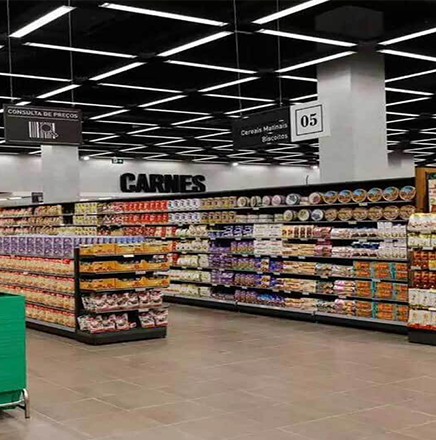

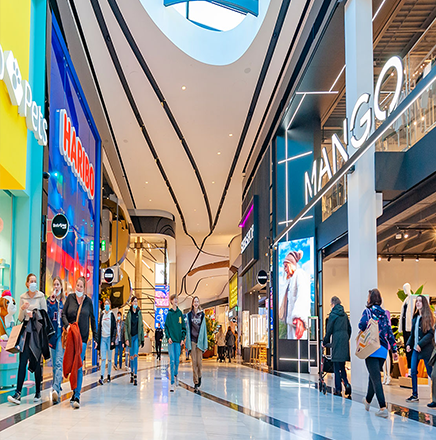

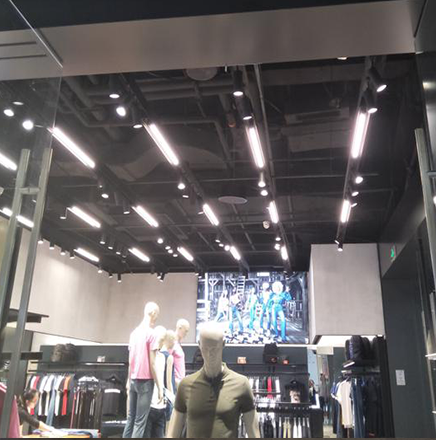

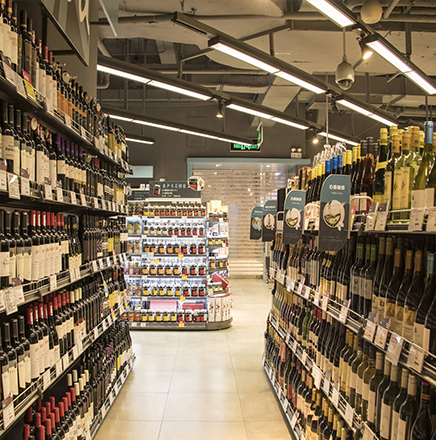

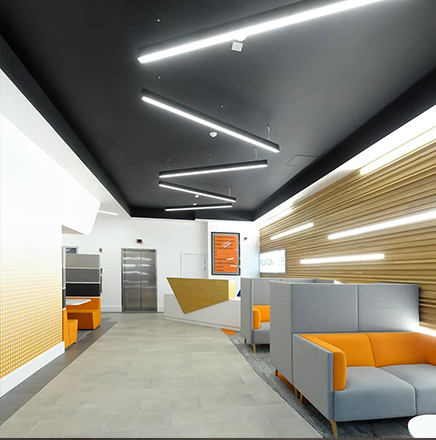

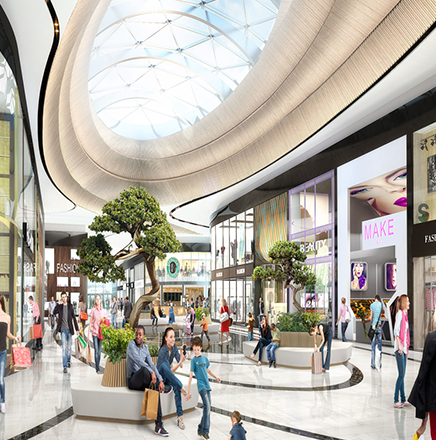

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.
