LED Linear Light

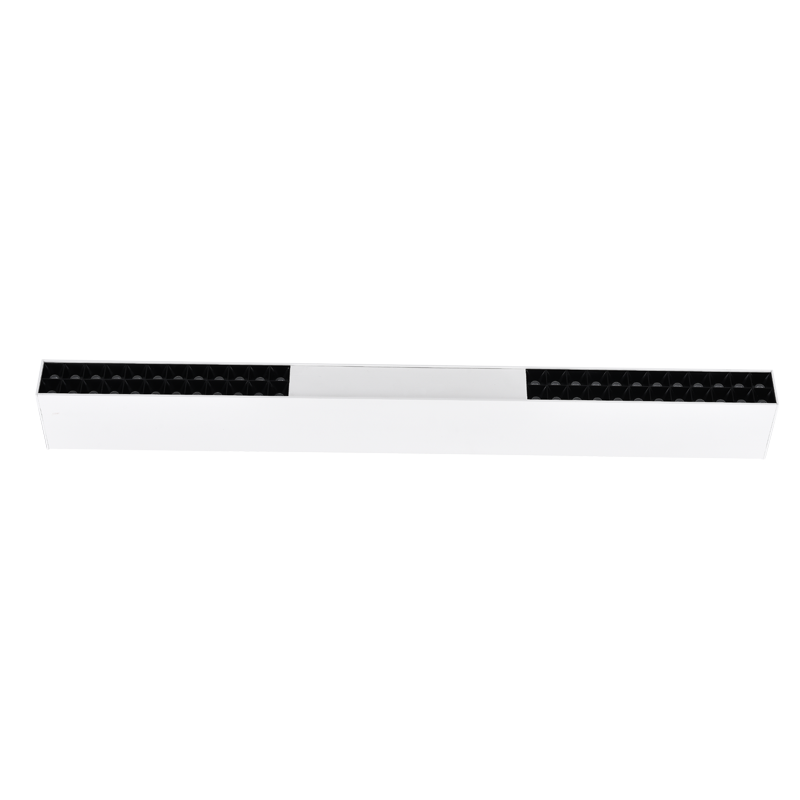

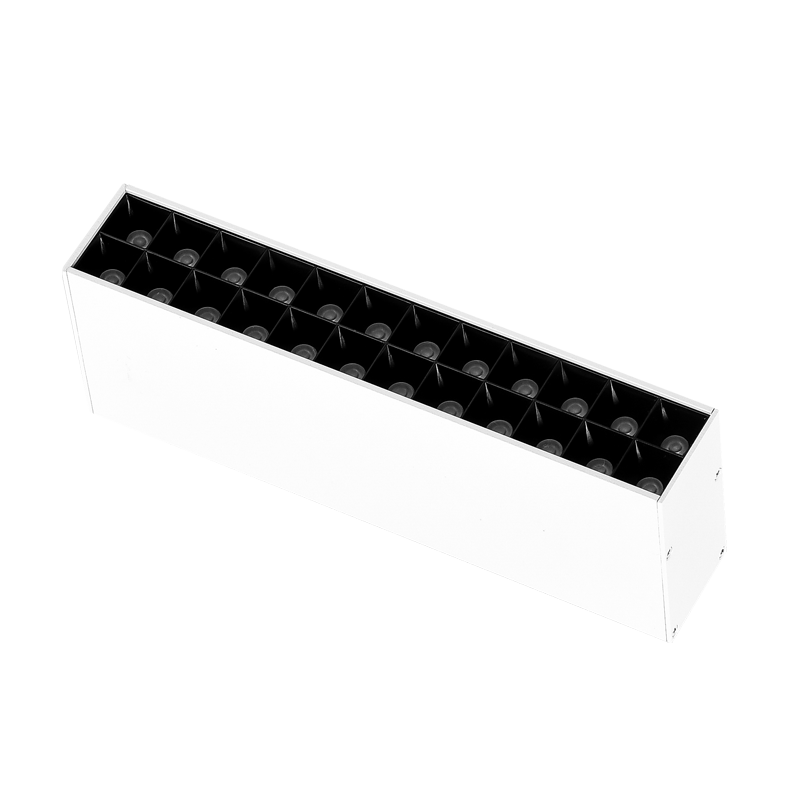

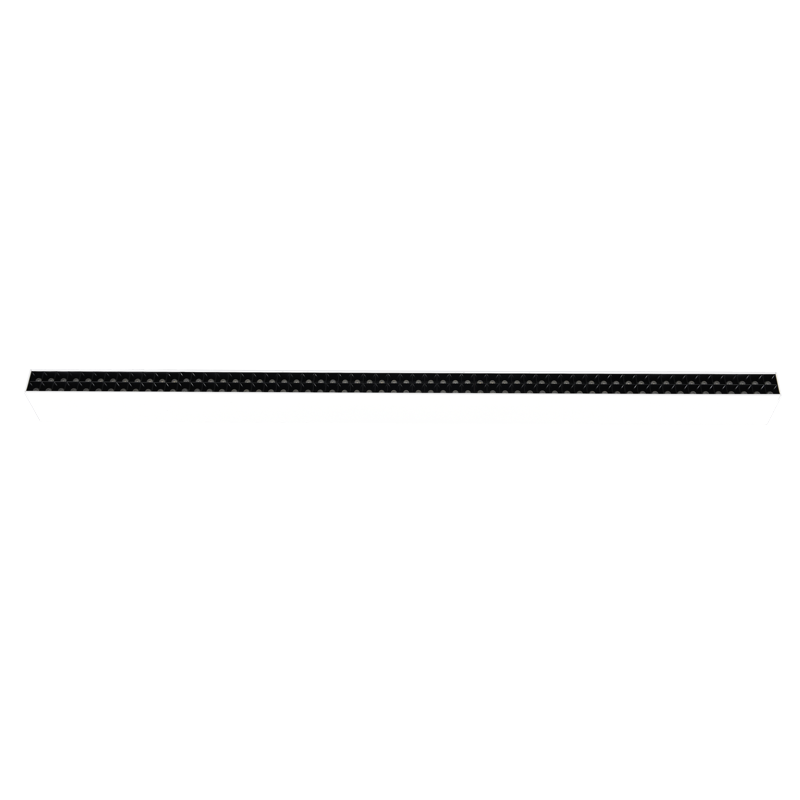

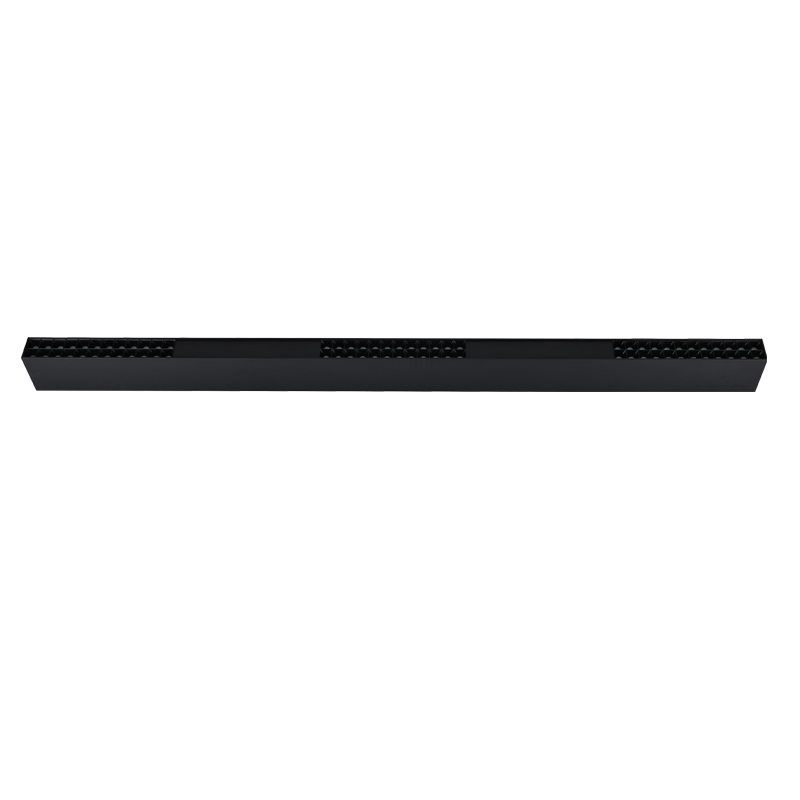

LED Linear Light LL-DC Series

Model: JST-LL-DC

Wattage: 15W-60W

LED Chip: OSRAM3030/Philips3030

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/30°/45°

Diameter: 230mm-1145mm

Installnation: Surface Mounted/Suspendent

Description

LED Linear Light LL-DC Series the lamp body, in fashionable design,is made of 6063 section aluminum and PC reflector. It is combined LED lighting with building harmoniously. Creat a circle of light from a line of LED downlights, A narrow line of nano LED downlights for pure minimalism, three choices of beam angle 15°/30°/45°, Brilliant quality, more than 50,000 hours life span.


The LED linear light LL-DC series has surface-mounted and suspended installations. It consists of a row of LED downlights forming a circle of light. With a screw-free tail cover, the appearance is exquisite and noble,and a high quality chip, constant current driver, CRI>80, FLICKER-FREE, and 100% ENVIRONMENT FRIENDLY. Deep anti-glare sepalad design, soft light, no glare, effective protection of eyes, looks comfortable, to create a soft lighting atmosphere.

Advantages
  1. Creat a circle of light from a line of LED lights

  2. A narrow line of nano LED Downlights for pure minimalism

  3. Superior glare control for high performance and visual comfort

  4. Three choices of beam angle 15°/30°/45°

  5. Screwness tail-hood, look clear and luxurious

  6. Surface Mounted/Suspendent intallation

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionInstallnation
JST-LL-DC15W>80/902700K-5000K>0.900.35AAC220-240V

15°/30°/45°

L230*W44*H83mmSurface Mounted
JST-LL-DC20W>80/902700K-5000K>0.900.50AAC220-240V

15°/30°/45°

L230*W44*H83mmSurface Mounted
JST-LL-DC30W>80/902700K-5000K>0.900.75AAC220-240V

15°/30°/45°

L688*W44*H83mmSurface Mounted
JST-LL-DC40W>80/902700K-5000K>0.901.00AAC220-240V

15°/30°/45°

L688*W44*H83mmSurface Mounted
JST-LL-DC50W>80/902700K-5000K>0.901.25AAC220-240V

15°/30°/45°

L1145*W44*H83mmSurface Mounted
JST-LL-DC60W>80/902700K-5000K>0.901.50AAC220-240V

15°/30°/45°

L1145*W44*H83mmSurface Mounted

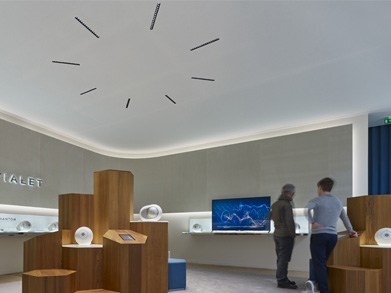

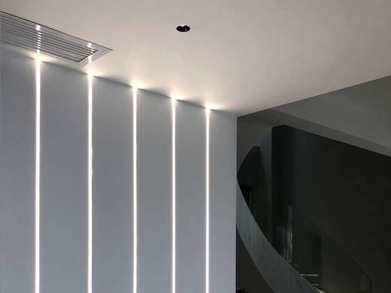

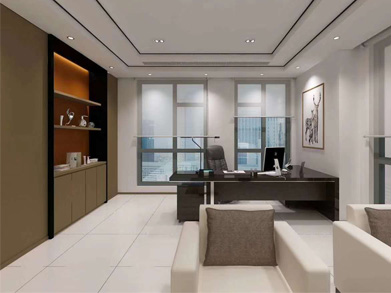

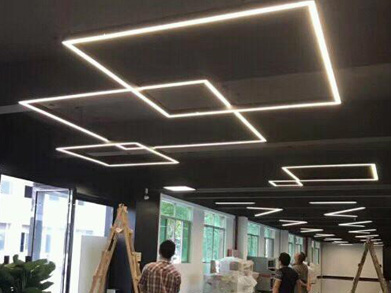

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.

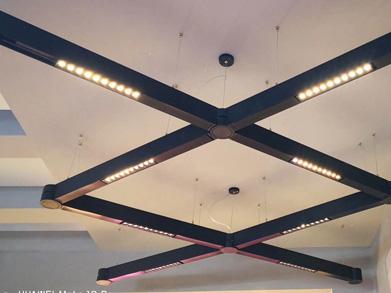

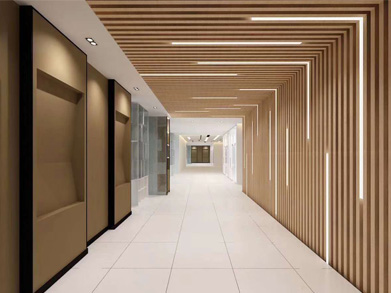

LED Linear Light LL-DC Series LED Linear Light LL-DC Series LED Linear Light LL-DC Series
LED Linear Light LL-DC Series LED Linear Light LL-DC Series LED Linear Light LL-DC Series
