LED Surface Mounted Downlight

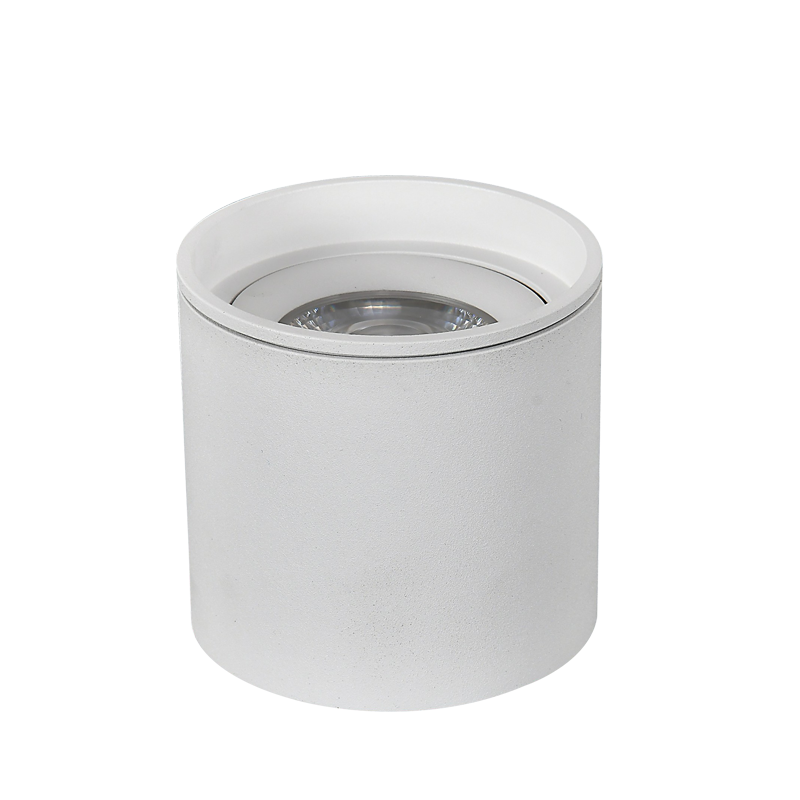

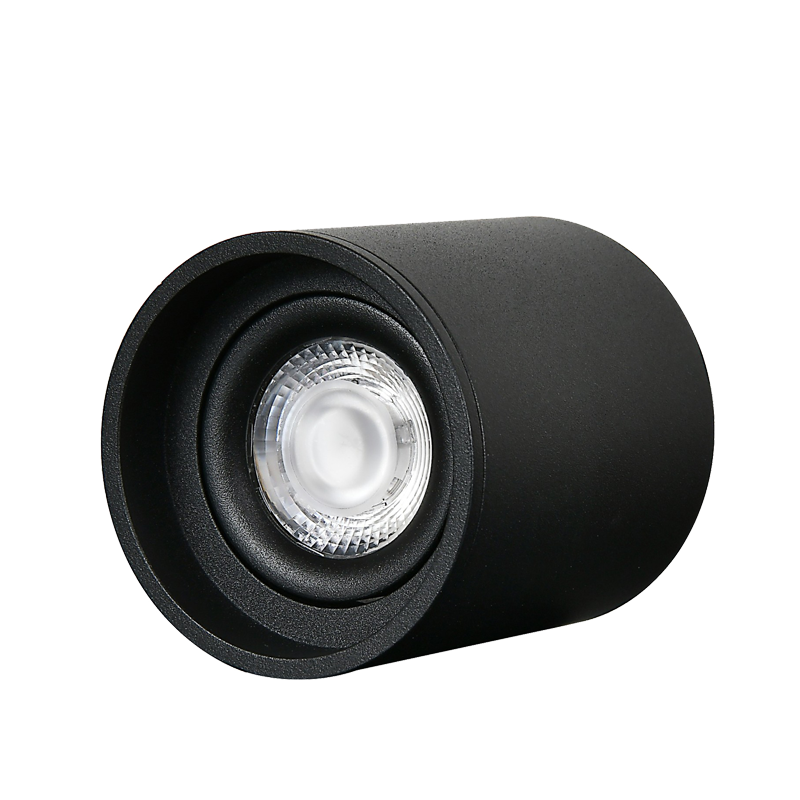

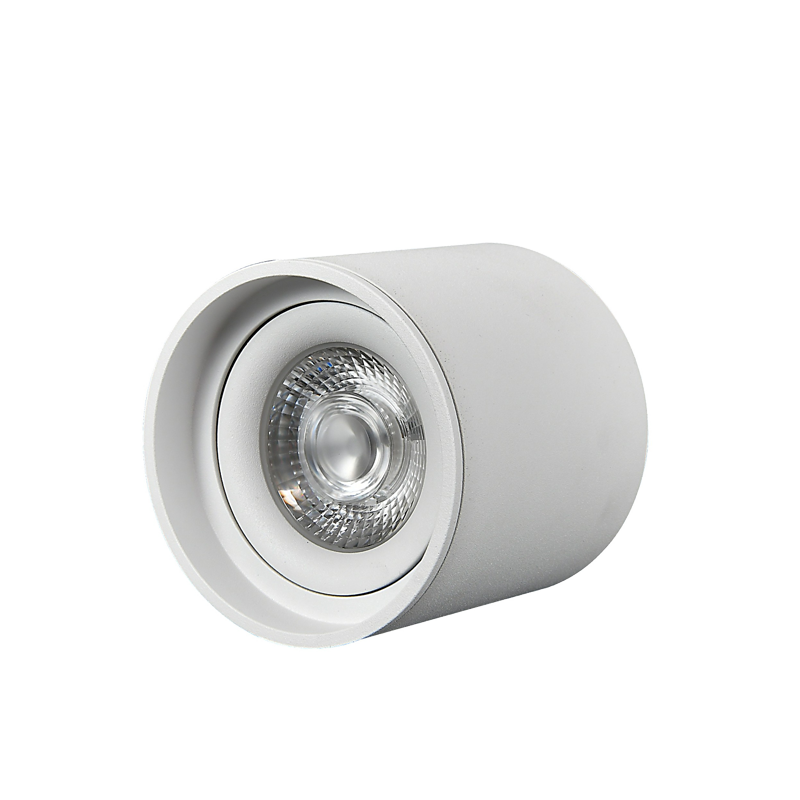

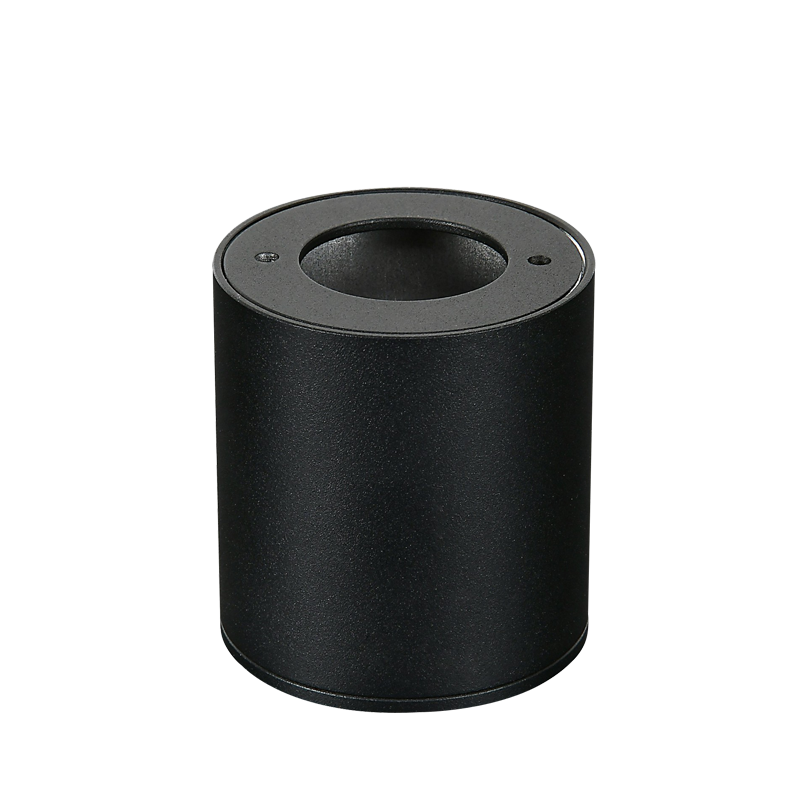

LED Surface Mounted Downlight SMP Series-Gimbal

Model: JST-SMP

Wattage: 5W-12W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/36°

Diameter: 65mm-85mm

Installation: Surface mounted/Suspend


Description

Based in Shenzen, China, JARSTAR has been presenting artful and innovative illumination. They continually promote the use of cost-saving lighting technologies, including downlight, track light and linear light, in an

effort to provide for the lighting needs of an expanding energy efficient culture.


Round shape with tool-less adjustable mechanism allows of 0-30° vertical tilt and 355° rotation. Adopt original CREE/Citizen  Chips LED, high CRI, high efficiency, high illumination. Die-Casting Aluminum, powder

painting, acid and alkali resistance, oxidation resistance. No-Flicker Philips/OSRAM/LIFUD driver for superior surrounding lighting requirement, with comfortable illumination. Selection of dimming drivers including

1-10V and DALI Dimmable.


Advantages
  1. Use constant LED drive power .Stable performance, safe reliable.

  2. Material environmental protection, low power consumption.

  3. Luminous efficiency and brightness illumination are superior to LED tube light.

  4. LED driver, moisture-proof, insulation, high temperature resistant.

  5. LED chip light source, light color uniform, there is conducive to people's eyesight protection and health.

  6. No radiation, No ultraviolet, No stroboscopic.


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDiameter
JST-SMP5W>80/902700K-5000K>0.900.13AAC220-240V15°/24°/36°D65*H70mm
JST-SMP10W>80/902700K-5000K>0.900.25AAC220-240V15°/24°/36°D85*H80mm
JST-SMP12W>80/902700K-5000K>0.900.50AAC220-240V15°/24°/36°D85*H115mm

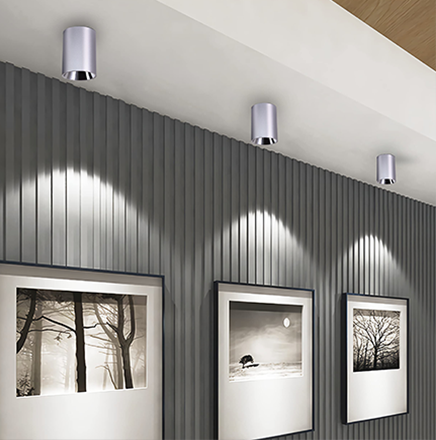

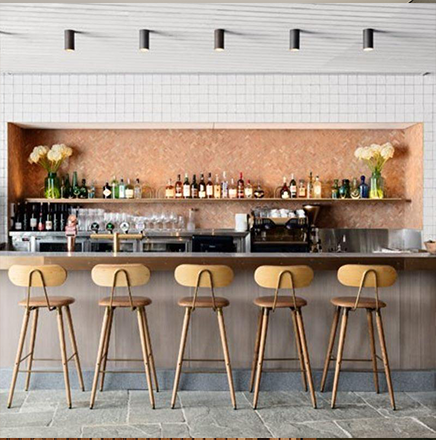

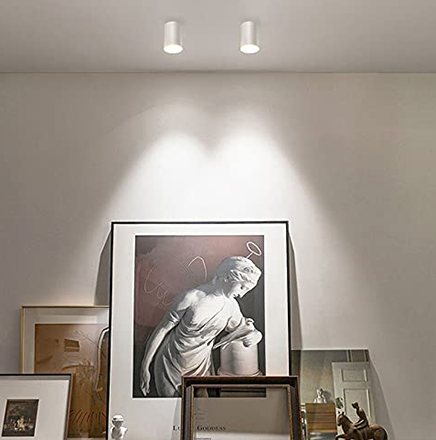

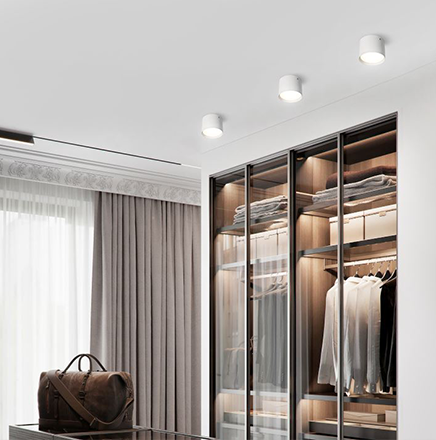

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.
