LED Hotel Downlight

LED Hotel Downlight HTO Series

Model: JST-HTO-A(Spring)/ B(Trimless)

Wattage: 5W-14W

LED Chip: CREE/CITIZEN

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/36°

Diameter: 75mm-105mm

Cutout: 65mm-95mm



Description

 Hotel downlight HTO series are designed to use direct AC power (120-277VAC, 50/60 Hz).  It has excellent light efficiency, CITIZEN/ CREE COB chip, high brightness and energy saving effect. Precise light control,

deep anti dazzle, the light soft, not dazzling, create a comfortable lighting environment


Hotel downlight HTO series with special design comes from the clock, the protrude lamp body  can reduce the distance from the object, the light is brighter, the durable aluminum alloy body has both excellent heat resistance and a sense of quality. It is hard to oxidize and does not fade.

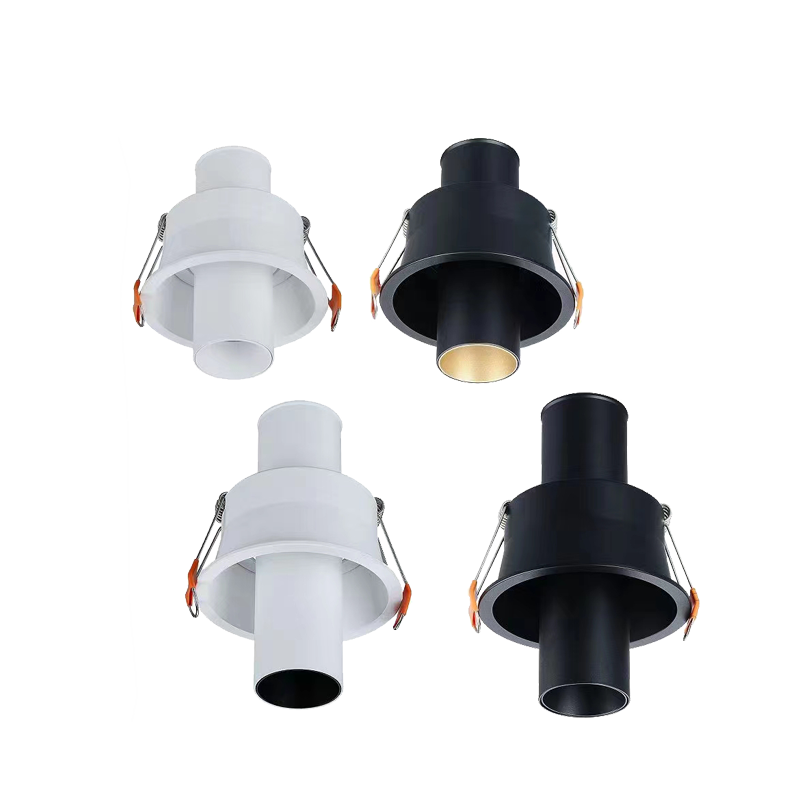

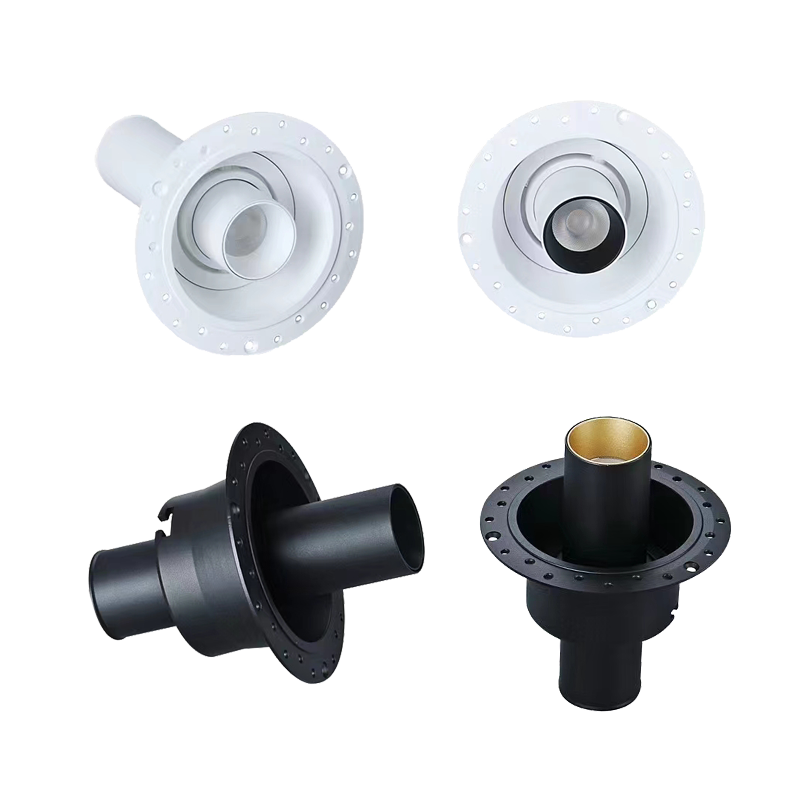

Hotel downlight HTO series with die-cast bezel-less outer ring. A for spring buckle, B series for trimless ,different styles of accessories cater to different people's hobbies.


Advantages

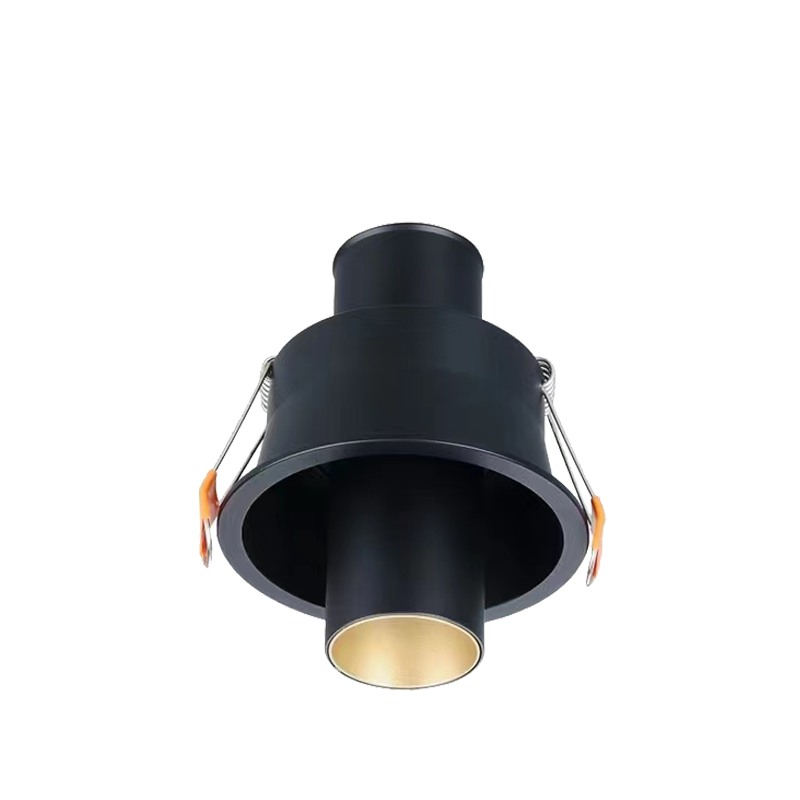

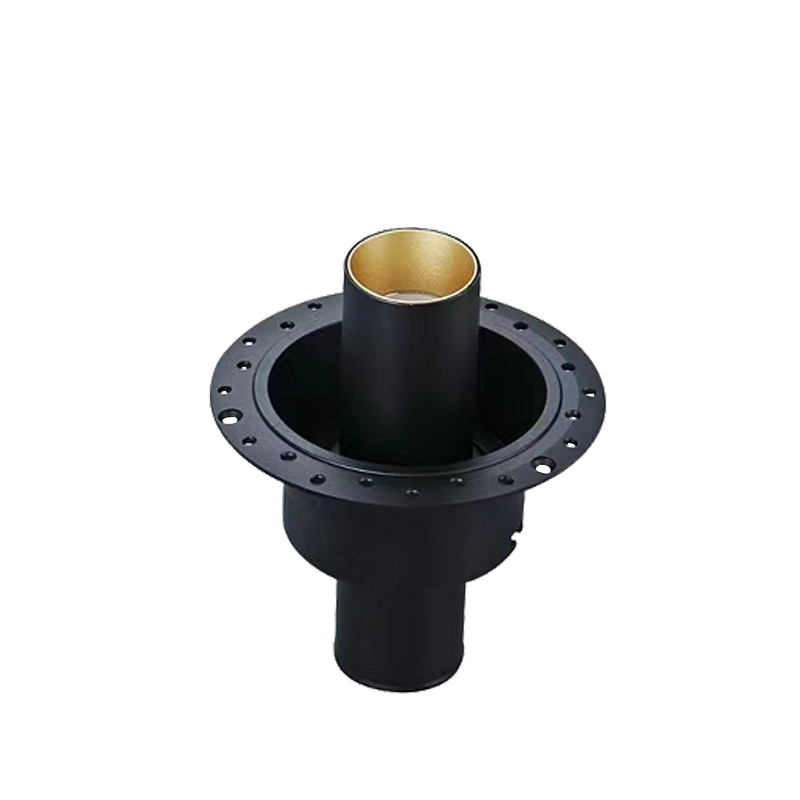

  1. Aluminum die-cast bezel-less outer ring, A for spring buckle. B series for trimless

  2. Deep anti dazzle

  3. Precise light control

  4. Special design

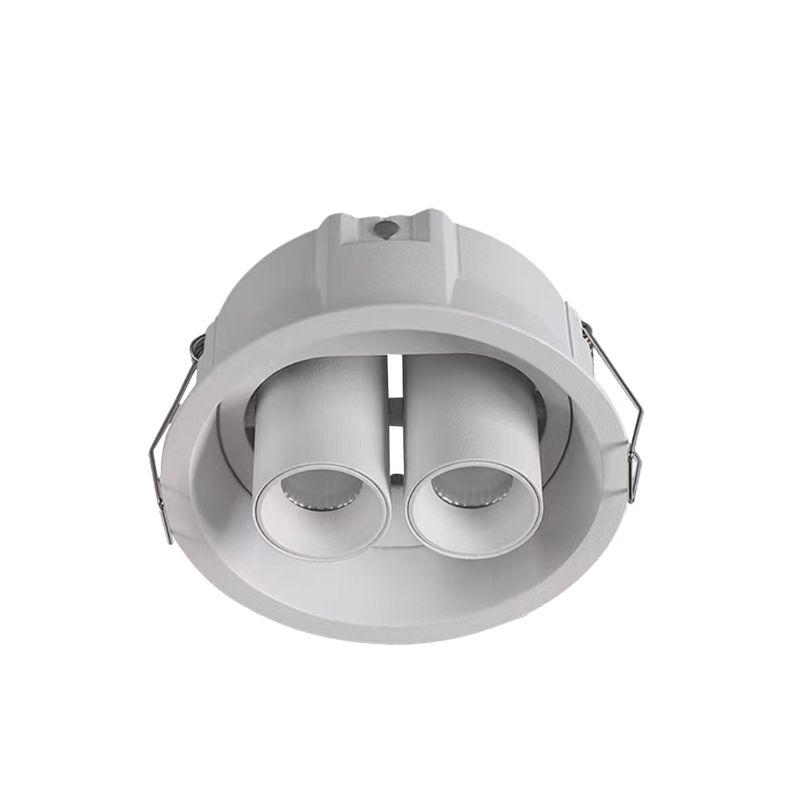

  5. Two lamp body constitute grille downliht

  6. Arbitrary adjustment Angle


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-HTO-A/B5W>80/902700K-5000K>0.900.13AAC220-240V12°/24°/36°D75*H66mm65mm
JST-HTO-A/B7W>80/902700K-5000K>0.900.16AAC220-240V12°/24°/36°D75*H100mm65mm
JST-HTO-A/B10W>80/902700K-5000K>0.900.25AAC220-240V12°/24°/36°D85*H90mm75mm
JST-HTO-A/B12W>80/902700K-5000K>0.900.30AAC220-240V12°/24°/36°D85*H160mm75mm
JST-HTO-A/B5WX2>80/902700K-5000K>0.900.25AAC220-240V12°/24°/36°D105*H66mm95mm
JST-HTO-A/B7WX2>80/902700K-5000K>0.900.30AAC220-240V12°/24°/36°D105*H100mm95mm

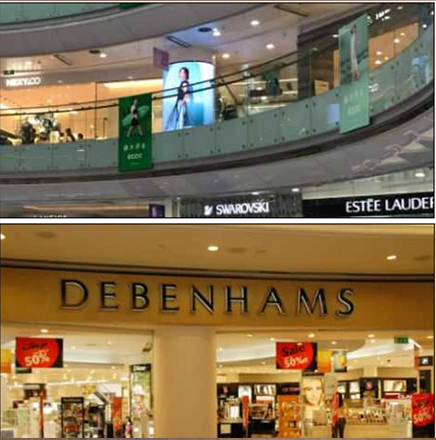

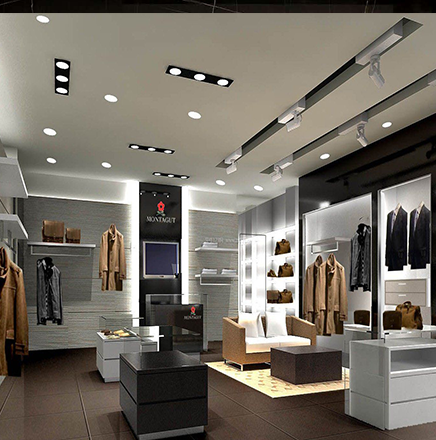

Application

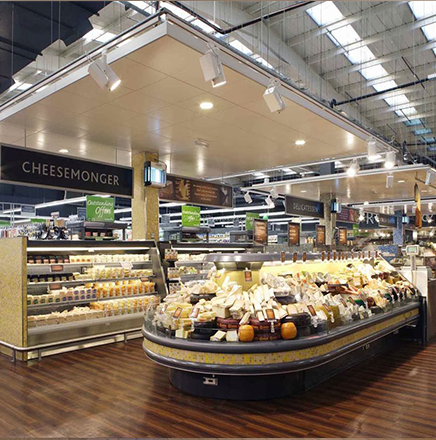

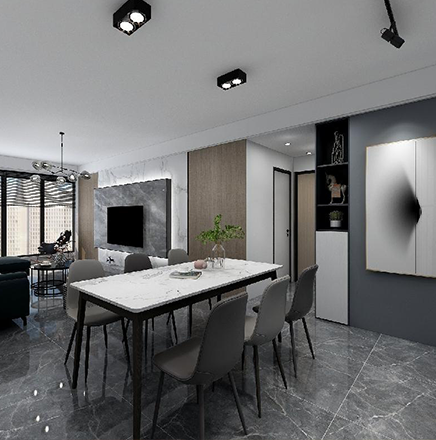

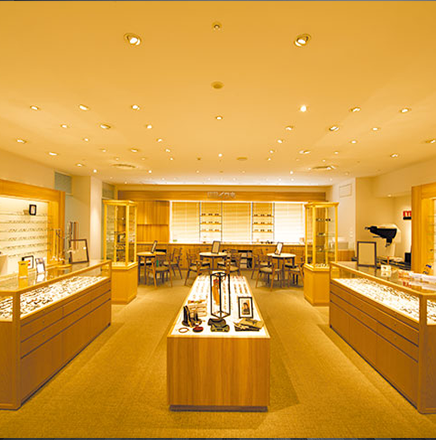

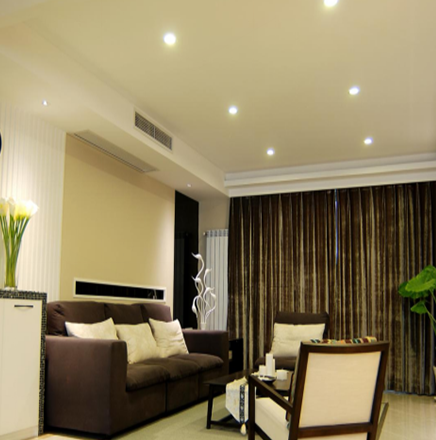

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.

LED Hotel Downlight HTO Series LED Hotel Downlight HTO Series LED Hotel Downlight HTO Series
LED Hotel Downlight HTO Series LED Hotel Downlight HTO Series LED Hotel Downlight HTO Series
